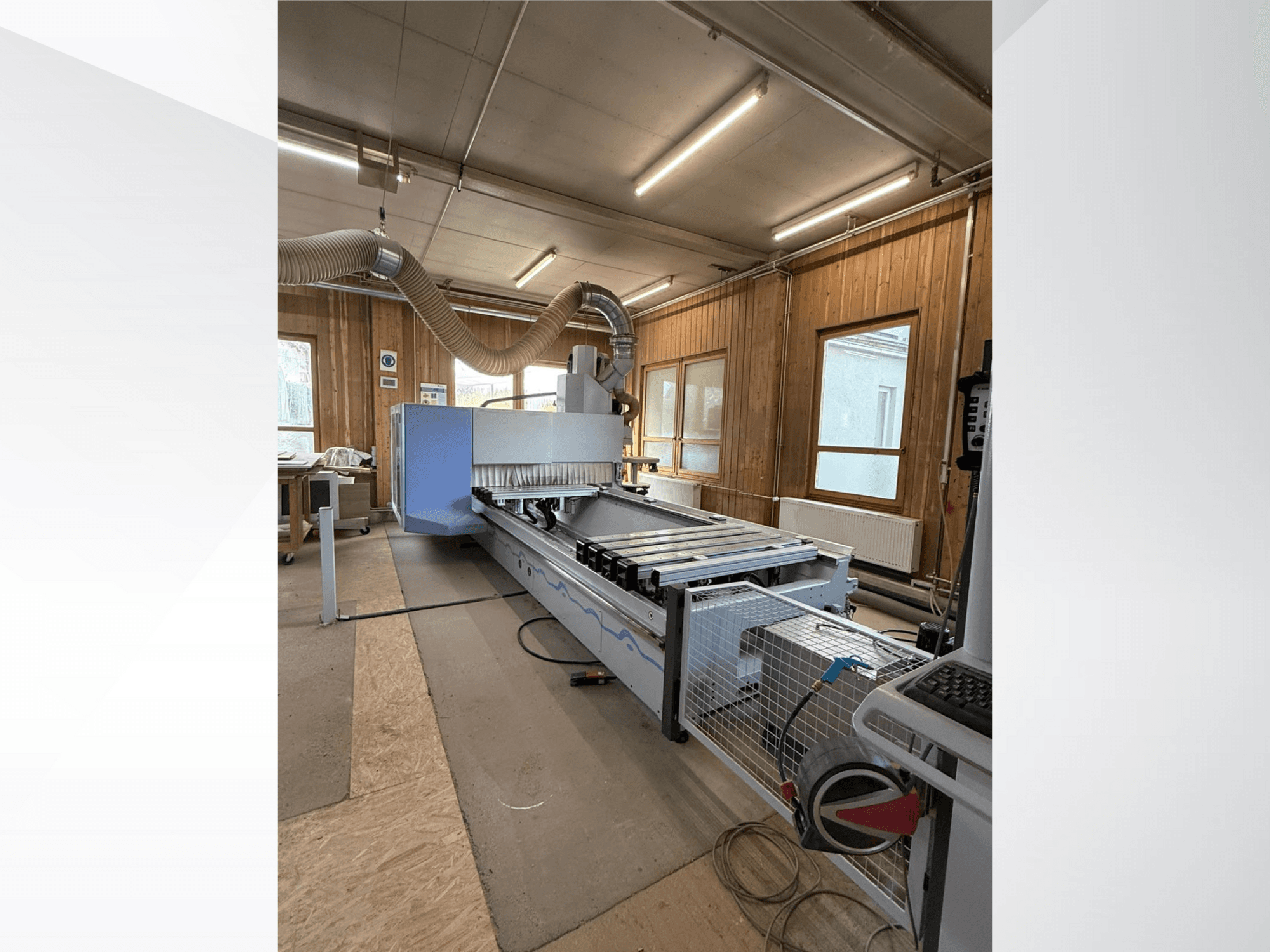

CNC milling machine in a workshop, side view, featuring a large blue body, attached belt conveyor, and visible control panel.
CNC milling machine in a workshop, side view, featuring a large blue body, attached belt conveyor, and visible control panel.

HOMAG - BMG311 VENTURE316LDE-CNC-HOM-2014-00002

85,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 4-axis HOMAG BMG311 VENTURE316L was manufactured in 2014. It features a rack and pinion drive for X and Y axes, ball screw for Z axis, and a maximum travel speed of 70 m/min. The machine can handle workpiece lengths up to 4200 mm and widths up to 1400 mm. It includes a console table with vacuum clamps and an Easyedge gluing unit. If you are looking to get high-quality woodworking capabilities consider the HOMAG BMG311 VENTURE316L machine we have for sale. Contact us for more information.

Overview

  • brand: HOMAG
  • year: 2014
  • MODEL: BMG311 VENTURE316L
  • application type: CNC Wood Machining
  • Location: Germany
  • machine type: CNC Wood Machining Centre

Additional Information

  • Max Workpiece Length:

  • Single: 4200 mm

  • Pendulum: 500 - 2440 mm

  • Workpiece Diameter 25 mm:

  • Single: 4375 mm

  • Pendulum: 500 - 2616 mm

  • Max Workpiece Width:

  • Front stop: 950 mm

  • Rear stop: 1400 mm

  • Milling Workpiece Diameter 25 mm:

  • Front stop: 1050 mm

  • Rear stop: 1550 mm

  • Max Workpiece Thickness: 270 mm including clamping device

  • Clamping Table:

  • Console table K

  • Consoles incl. front stop: 8 pcs.

  • Rear stop (fixed): 5 pcs.

  • Lift rails: 6 pcs.

  • Console length: 1340 mm

  • Stop bolts lift from console surface: 140 mm

  • Side Stops:

  • Left: 2 pcs.

  • Right (mirror position): 2 pcs.

  • Vacuum Clamps:

  • 16 pcs. 160x115x100 mm

  • 8 pcs. 125x75x100 mm

  • Easyedge gluing package

  • Easyedge manual end cap gluing device

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
