➤ Used Hurco HTX 500 For Sale | gindumac.com

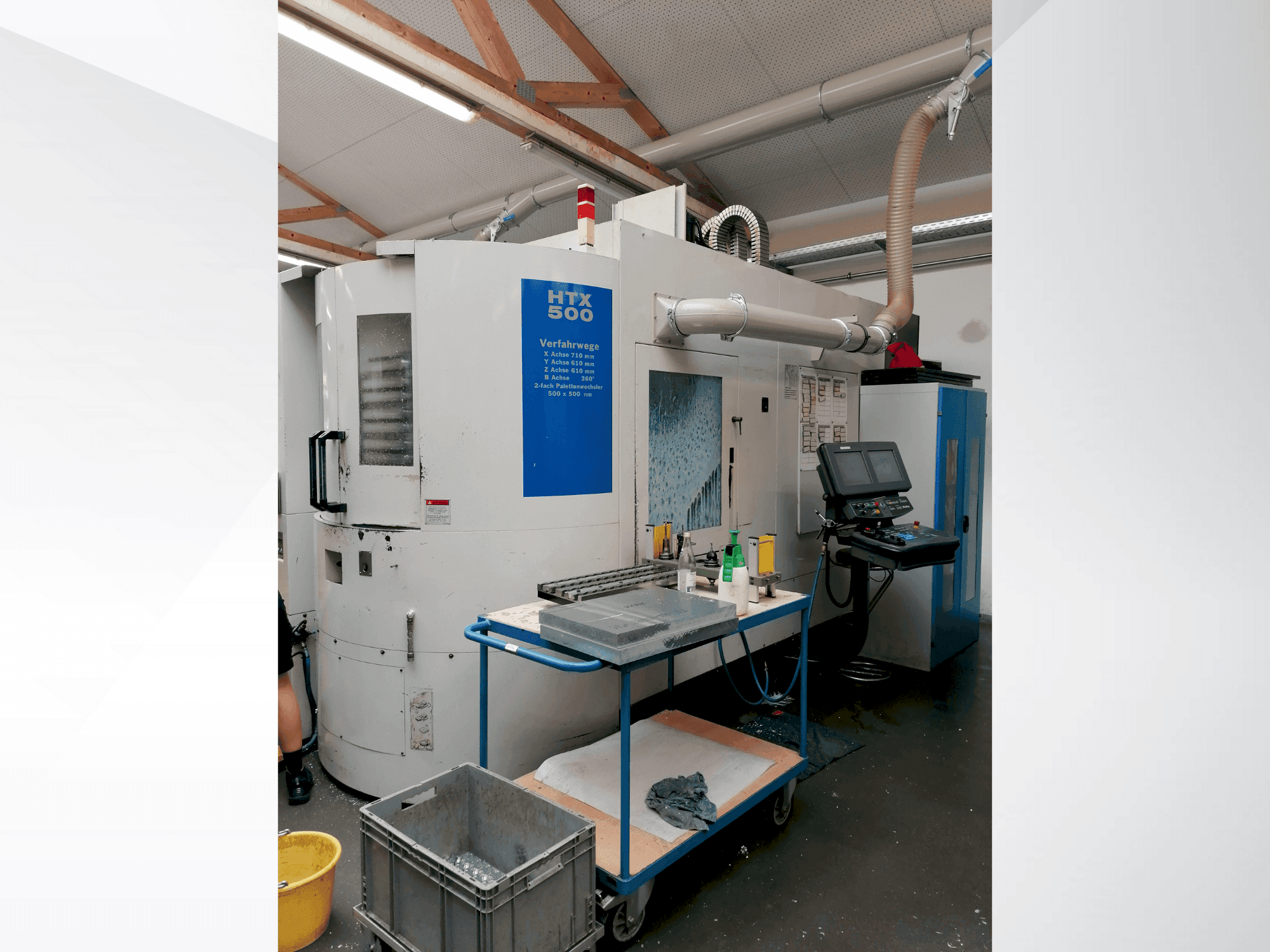

This 4-axis Hurco HTX 500 horizontal machining center was manufactured in 2008. It features a robust 500 mm × 500 mm working surface with a maximum load capacity of 500 kg. The spindle operates at speeds up to 12000 RPM, powered by an 18 kW motor. It includes a 60-station automatic tool changer and rapid traverse rates of 32,004 mm/min for efficient machining. Ideal for handling complex, multi-sided parts. Reach out for further details regarding this horizontal machining center.

Overview

brand: Hurco
year: 2008
MODEL: HTX 500
production hours: 43892
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
availability: Immediately

Technical Information - Hurco HTX 500

General Data

Measurements width: 2450 MM
Measurements height: 2800 MM
Machine weight: 13000 KG

Main drive

Spindle speed range: 0-12000 1/MIN
Spindle motor power: 18 kW (Peak), 11 kW (Continuous)
Tool taper: #40 Taper

Movement

X-AXIS Movement: 710 mm
X-AXIS Rapid traverse: 32,004 mm/min
Y-AXIS Movement: 610 mm
Y-AXIS Rapid traverse: 32,004 mm/min
Z-AXIS Movement: 610 mm
Z-AXIS Rapid traverse: 32,004 mm/min

Table

Outer length: 500 mm
Outer width: 500 mm
Table load: 500 kg

Tools

Number of stations: 60
Max weight: 10 kg
Max tool diameter: 80 mm

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Large tool capacity with 60 stations
- - Coolant tank capacity: 580 liters
- - Machining primarily 90% aluminium
- - Torque for x, y, z, b axes: 28. 48 nm / 71. 19 nm
- - Peak thrust for x, y, z axes: 23. 8 kn
- - Positioning accuracy: +/-0. 0001"
- - Repeatability: +/-0. 0025 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
