➤ Used Maier MLK 32D For Sale | gindumac.com

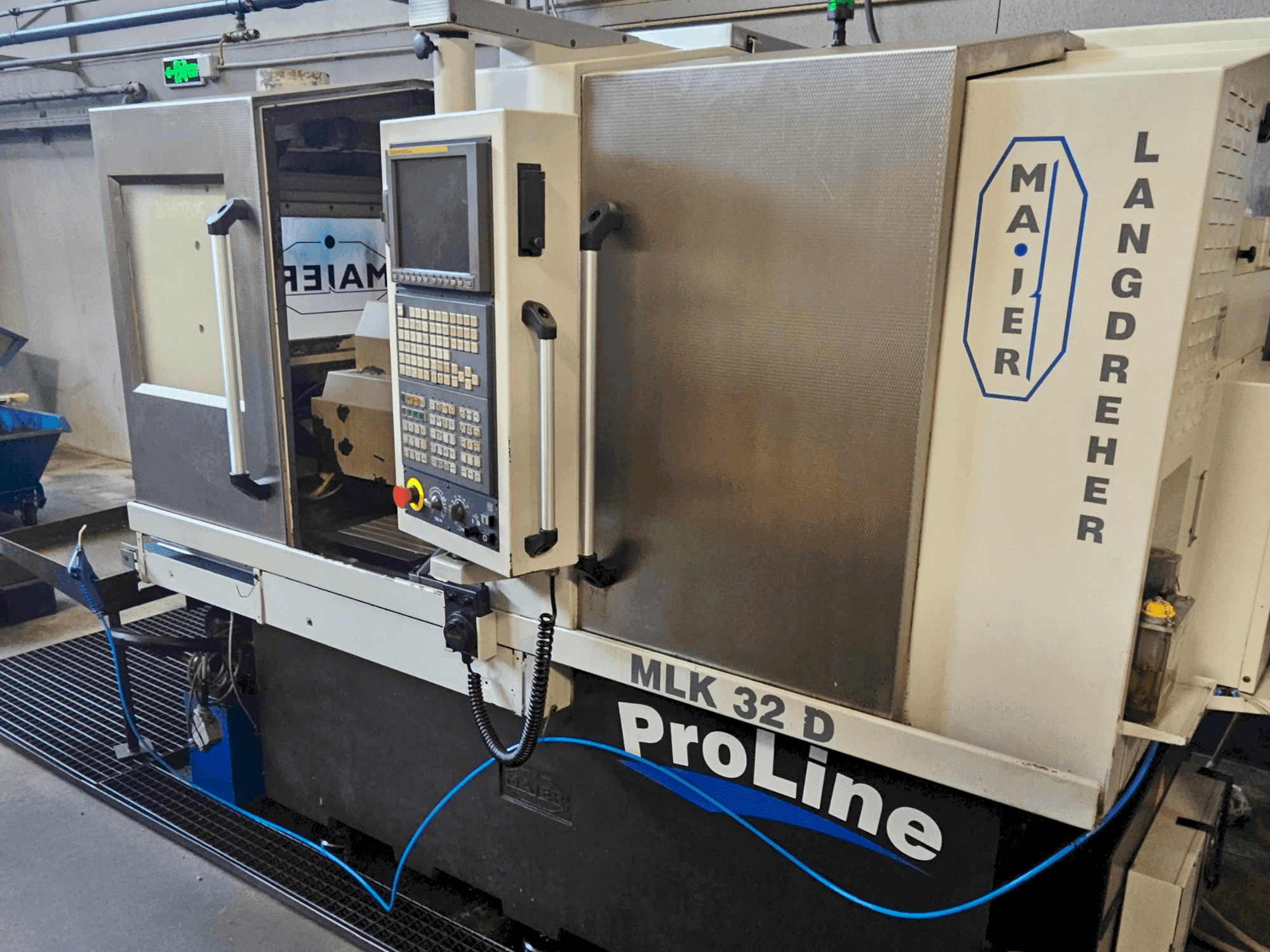

This Maier MLK 32D was manufactured in 2007. It features a maximum bar diameter of Ø 32 mm, machining length per clamping of 310 mm, and a sub-spindle re-machining length of 200 mm. The machine includes a main spindle with a max speed of 8,000 rpm and a power of 5.5 kW. It also has a tooling system with up to 23 tool stations and approximately 14 live tools. Contact us for more information about this machine.

Overview

brand: Maier
year: 2007
MODEL: MLK 32D
application type: Turning
Location: Romania
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - Maier MLK 32D

Control Unit

Brand: FANUC
Model: 16i-TB

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 5.5 kW

Tools

Number of stations: 23

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max bar diameter: 32 mm
- - Max machining length per clamping: 310 mm
- - Sub-spindle re-machining length: 200 mm
- - Axes configuration: up to 9 axes (x1, z1, y1, c1, x2, z2, c2, x3, z3) // c-axis indexing resolution: 0. 001°
- - Coolant delivery through tools and external nozzles
- - Optional high-pressure system (up to 80 bar)
- - Voltage: 220 v ac / 50 hz
- - Control voltage: 24 v dc
- - Total installed power: 16 kw
- - Max current: 60 a

Extra information

- Control Unit Type: MAIER PRO-GE Fanuc Fanuc 16i-TB Color LCD display with full keyboard Supports G-code, macros, tool offsets, synchronization Workpiece Synchronized sub-spindle (backworking) Tools Up to 23 tool stations Approx. 14 live tools (powered) Tool holders: ER16 / ER20 collets Rear tool block included Media Bar Feeder: FMB Turbo (servo-controlled) Bar diameter capacity: 5–42 mm Bar length capacity: up to 3.2 meters Fully CNC-synchronized

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
