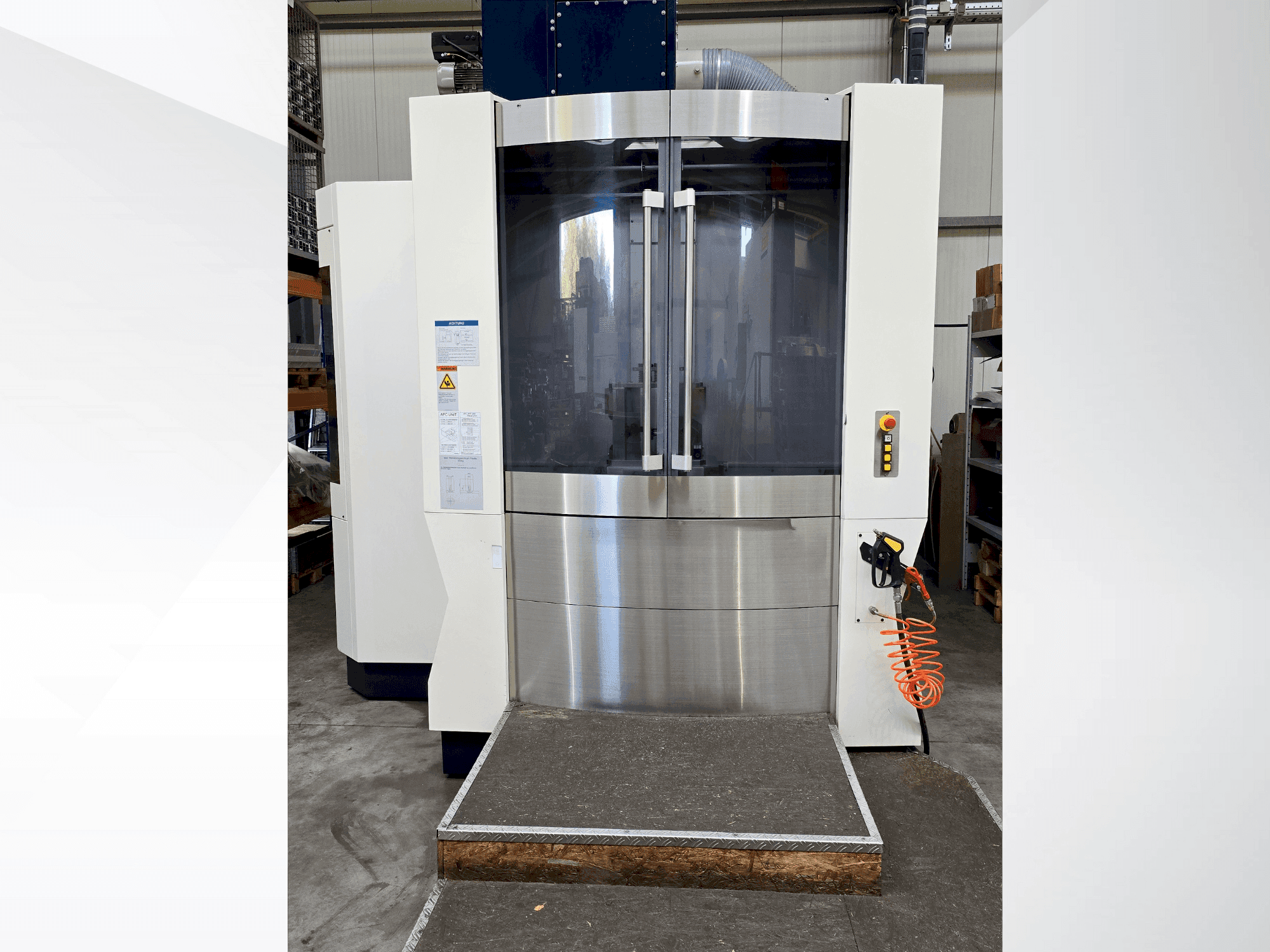

Front view of Makino A61nx  machine

Makino - A61nxDE-MIL-MAK-2015-00001

205,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 4-axis Makino A61nx horizontal machining center was manufactured in 2015. It features a robust spindle with speeds up to 14,000 min-¹, a torque of 240 Nm, and a power of 30 kW. The machine includes a high-capacity tool magazine with storage for 60 tools and rapid tool change times. Ideal for heavy-duty machining with a pallet size of 500 × 500 mm and maximum workpiece weight of 700 kg. For more information about this horizontal machining center, please reach out to us.

Overview

  • brand: Makino
  • year: 2015
  • MODEL: A61nx
  • application type: Milling
  • Location: Switzerland
  • machine type: Horizontal Machining Centre
  • availability: Immediately
  • control unit brand: FANUC

Technical Information - Makino A61nx

General Data

  • Measurements width: 2910 mm
  • Measurements depth: 4888 mm
  • Measurements height: 2981 mm
  • Machine weight: 12000 kg

Control Unit

  • Model: 310iS-A
  • Brand: FANUC

Main drive

  • Number of spindles: 1
  • Spindle speed range: 14000 1/MIN
  • Spindle motor power: 22 kW
  • Tool taper: HSK-A 63
  • Number of axis: 4

Movement

  • X-AXIS Movement: 730 mm
  • Y-AXIS Movement: 730 mm
  • Z-AXIS Movement: 800 mm

Workpiece

  • Workpiece weight: 500 kg

Tools

  • Max weight: 12 kg
  • Max tool diameter: 70 mm
  • Max tool length: 510 mm

Media

  • Chip conveyor: Yes
  • Internal cooling: Yes
  • Cooling pressure: 30 bar

    Additional Equipment

    • - Direct path measuring systems in XYZ-axis
    • - Core cooling of the ball screw spindles and bearings with circulating oil // Jacket cooling on spindle nose and motor
    • - High-speed blanking function
    • - Linear guides in heavy-duty design: 55 mm
    • - https://gindumacgmbh.zendesk.com/sales/deals/176297652#:~:text=Tool%20magazine%3A%20Storage%20capacity%2060%20tools
    • - Renishaw OMP60 touch probe // Renishaw Inspection Plus
    • - Automatic override of the corners: G62
    • - Restart after programme interruption
    • - User macro with 600 variables
    • - Flow monitor for coolant through the spindle

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Pallet size: 500 × 500 mm
        • - Maximum workpiece dimensions (diameter/height): 800/1000 mm
        • - Direct path measuring systems, core cooling and jacket cooling, chip-to-chip time: 2. 4 s
        • - Memory extension for 500 main and sub-programmes
        • - Air curtain on the operating door
        • - Space requirement: approx. 8. 3 x 5 x 2. 981 m (without conveyor)

      Extra information

      • - Transport dimensions: 4704 mm x 2466 mm x 2916 mm

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
