Mazak - FJV 35/80CZ-MIL-MAZ-2003-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Machine Tools
- Mazak FJV 35/80 Vertical Machining center

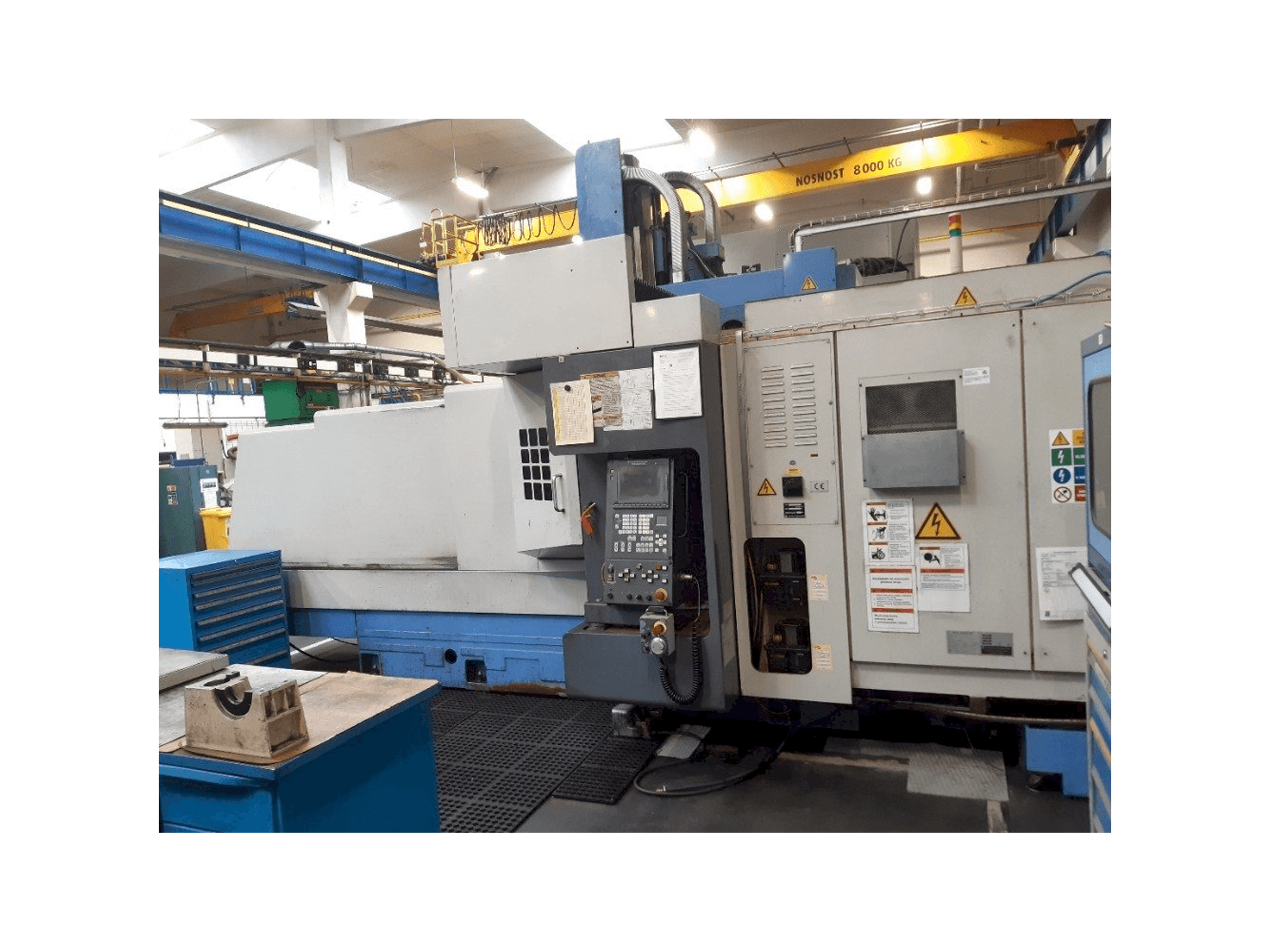

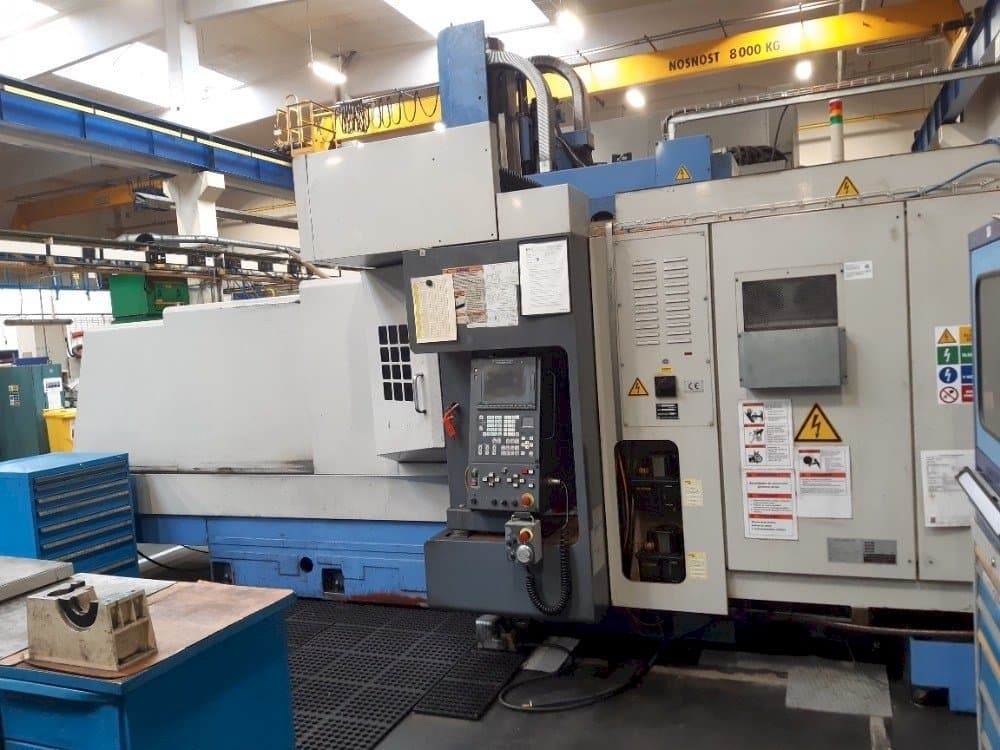

This Mazak FJV 35/80 Vertical Machining center was manufactured in the year 2003 in Japan. It is equipped with a Mazak Mazatrol 640 M-PC control unit and has 3 axis. The machine has a spindle speed of 10000 rpm.
Overview
- brand: Mazak
- year: 2003
- MODEL: FJV 35/80
- application type: Milling
- Location: Czech Republic
- machine type: Gantry Milling Machine
- availability: Sold
- control unit brand: MAZATROL
Technical Information - Mazak FJV 35/80
General Data
- Measurements width: 6280 mm
- Measurements depth: 3274 mm
- Measurements height: 3550 mm
- Machine weight: 14500 kg
Control Unit
- Model: Mazatrol 640 M-PC
- Brand: MAZATROL
Main drive
- Number of spindles: 1
- Spindle speed range: 10000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 2000 mm
- Z-AXIS Movement: 585 mm
Workpiece
- Workpiece x: 2240 mm
- Workpiece y: 860 mm
- Workpiece z: 640 mm
- Workpiece weight: 3000 kg
Table
- Outer length: 2230 mm
- Outer width: 1200 mm
Tools
- Slots in storage: 40
- Type of tool holder: SK 50
Media
- Main electronic connection: 200 V
- Power consumption: 67.6 kVa
- Chip conveyor: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
