Mazak - INTEGREX i-800V/8SE-MIL-MAZ-2017-00002

Name: Mazak INTEGREX i-800V/8
Brand: Mazak
SKU: SE-MIL-MAZ-2017-00002
Price: 479000 EUR
Availability: InStock

479,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

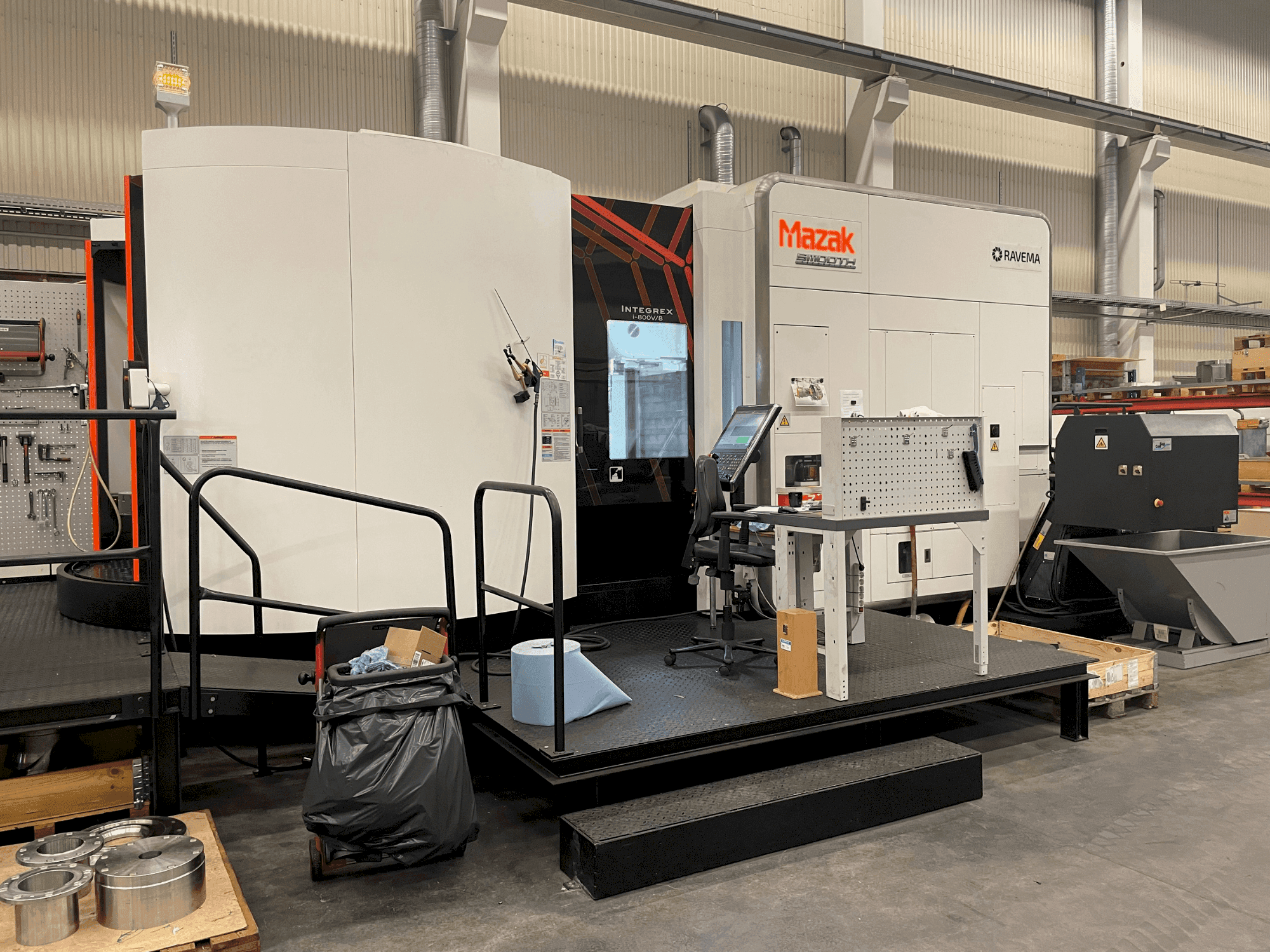

MAZAK INTEGREX i-800V/8 (2017) 5-Axis Universal Machining Centre

This MAZAK INTEGREX i-800V/8 (2017) 5-Axis Universal Machining Centre (Turn-Mill) was manufactured in 2017 in Japan. It is equipped with a high torque milling spindle with scale feedback (max. 5.000 rpm), a 80x tool magazine (capto), MAZAK tool identification system and multi tool function. The machine has 5 axis machining package for SmoothX (X-axis stroke: 1.700mm / Y-axis stroke: 1.500mm / Z-axis stroke: 1.150mm / B-axis: 150° (-30°, +120°) / C-axis: 360°), operates with a max. machining diameter of 1,500 mm and a table speed of 500 rpm. It comes with a RENISHAW RMP 600 probe, laser tool measurement, coolant temperature control system, blowing air through coolant, large volume coolant option and chip conveyor (rear, right). The cutting time is at 3539 hours. This INTEGREX i-800V/8 Multi-Tasking machine combines full 5-axis milling and powerful turning operations to productively process large, highly complex parts such as jet engine components and spiral bevel ring gears. As machine is still under power it can be inspected at any time. See video gallery for more impressions.

Overview

brand: Mazak
year: 2017
MODEL: INTEGREX i-800V/8
production hours: 3539
application type: Milling
Location: Sweden
machine type: Machining centers (universal)
availability: Immediately

Technical Information - Mazak INTEGREX i-800V/8

Main drive

Spindle speed range: 5000 1/MIN
Tool taper: CAPTO
Number of axis: 5

Movement

X-AXIS Movement: 1700 MM
Y-AXIS Movement: 1500 MM
Z-AXIS Movement: 1150 MM
B-AXIS Movement: 150° (-30°, +120°) MM
C-AXIS Movement: 360° MM

Tools

Slots in storage: 80
Type of tool holder: CAPTO

Media

Chip conveyor: Yes

Additional Equipment

- Renishaw RMP 600
- Chip conveyor (rear/right)
- Superflow V30C-J
- Extractor GP3000
- Laser tool measurement
- Coolant temperature control system

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 5-axis: x-axis stroke 1. 700mm, y-axis stroke 1. 500mm, z-axis stroke 1. 150mm, b-axis 150° (-30°, +120°), c-axis 360°
- - Blowing air through spindle
- - Multi tool function
- - Tool magazine for 80 tools, capto
- - Mazak tool identification system
- - Cylindrical and polar coordinate
- - High torque milling spindle with scale feedback, max. 5. 000 rpm
- - Max. Machining diameter: 1. 500mm
- - Table speed: 500 rpm
- - Prep. For renishaw sprint
Qualitative Machine Benefits:
- - Large volume coolant
- - Smooth gear skiving
- - Chip emptying cycle // synchronized threading
- - Radius compensation // spindle shaper type operation
- - Mt connect adaptor // g00 slope constant
- - 5 axis machining package for smoothx orbitturn
- - Smooth gear mill
- - Tool length compensation in tool axis direction
- - Gear hobbing
- - Energy dashboard function

Extra information

- 3 colored machine status light // MAZAK API // Machine Total time 18501 h, Cutting time 3539 h

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
