MECO - MEC-55 CNCBE-MIL-MEC-2020-00001

Name: MECO MEC-55 CNC
Brand: MECO
SKU: BE-MIL-MEC-2020-00001
Price: 30000 EUR
Availability: InStock

30,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MECO MEC-55 CNC For Sale | gindumac.com

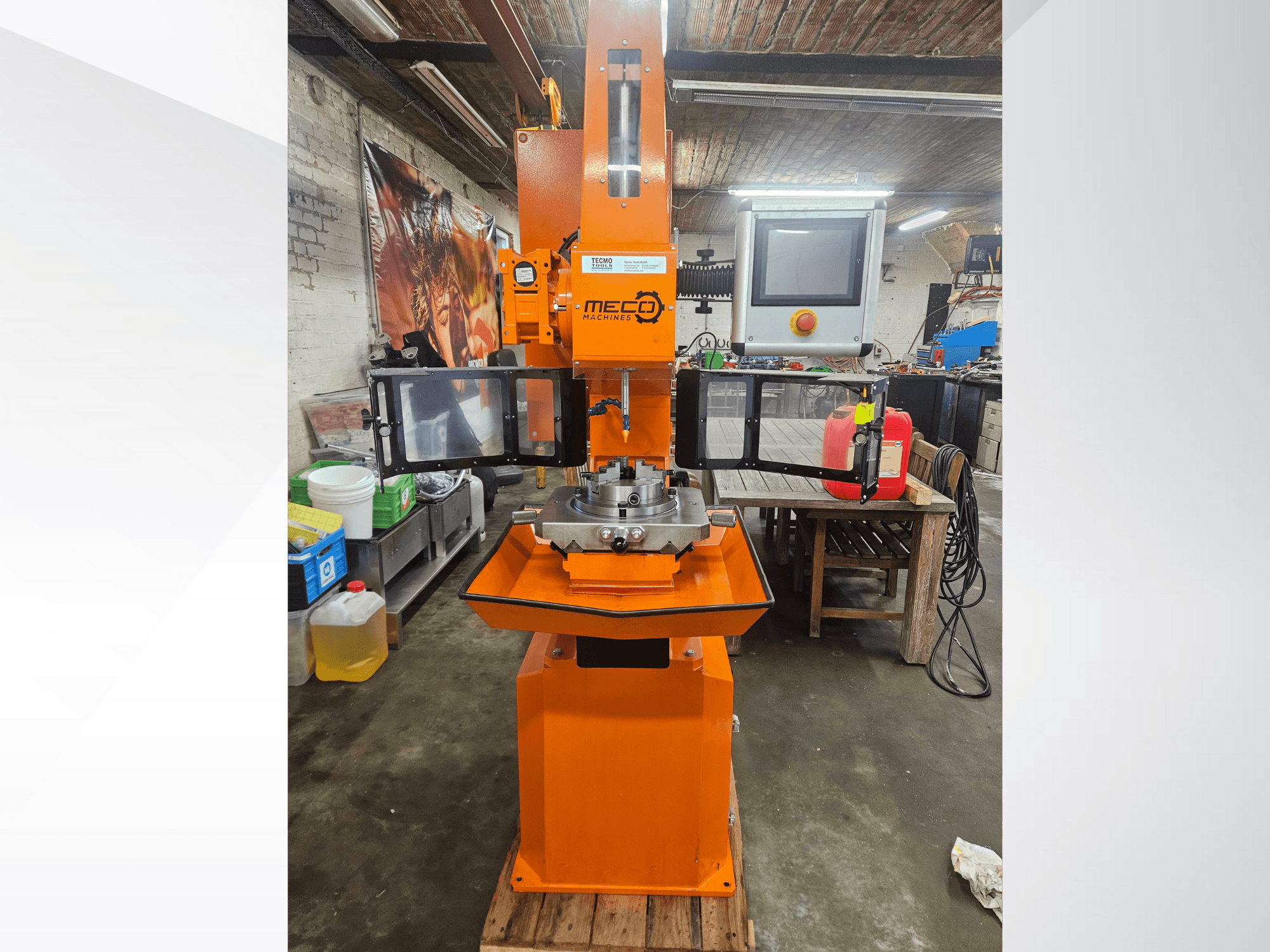

This 3-axis MECO MEC-55 CNC keyseating machine was manufactured in 2020, featuring a robust design with a maximum sample diameter of 400 mm and a total working area of 220 mm. It includes automatic Z and Y axes with speeds up to 9 m/min and 1.8 m/min respectively, and a manual W axis with a 360º rotation capability. If you are looking to get high-quality milling capabilities consider the MECO MEC-55 CNC machine we have for sale. Contact us for more information.

Overview

brand: MECO
year: 2020
MODEL: MEC-55 CNC
production hours: 30
application type: Milling
Location: Belgium
machine type: CNC Milling Machine

Technical Information - MECO MEC-55 CNC

Dimensions

Machine Depth: 1100 mm
Machine Height: 1860 mm
Machine Weight: 640 kg

Movement

Number of Axes: 3
Y-axis Travel: 56 mm
Z-axis Travel: 222 mm

Additional Information

Maximum width with doors open: 1265 mm

Capacity
- Maximum diameter of the sample: 400 mm
Machine weight: 640 kg
Z Axis (automatic)
- Maximum speed: 9 m/min
- Motor power: 0,75 kW
- Maximum working force: 7 kN
- Reduction ratio: 40:1
Y Axis (automatic)
- Maximum speed: 1,8 m/min
- Motor power: 400 W
- Maximum working force: 45 kN
- Reduction ratio: 10:1
W Axis (manual)
- Total rotation: 360°
- Rotary plate diameter: Ø 240 mm
- Calibrated vernier and brake to lock the plate at the desired degree
- Preset divisions for 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16 slots

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
