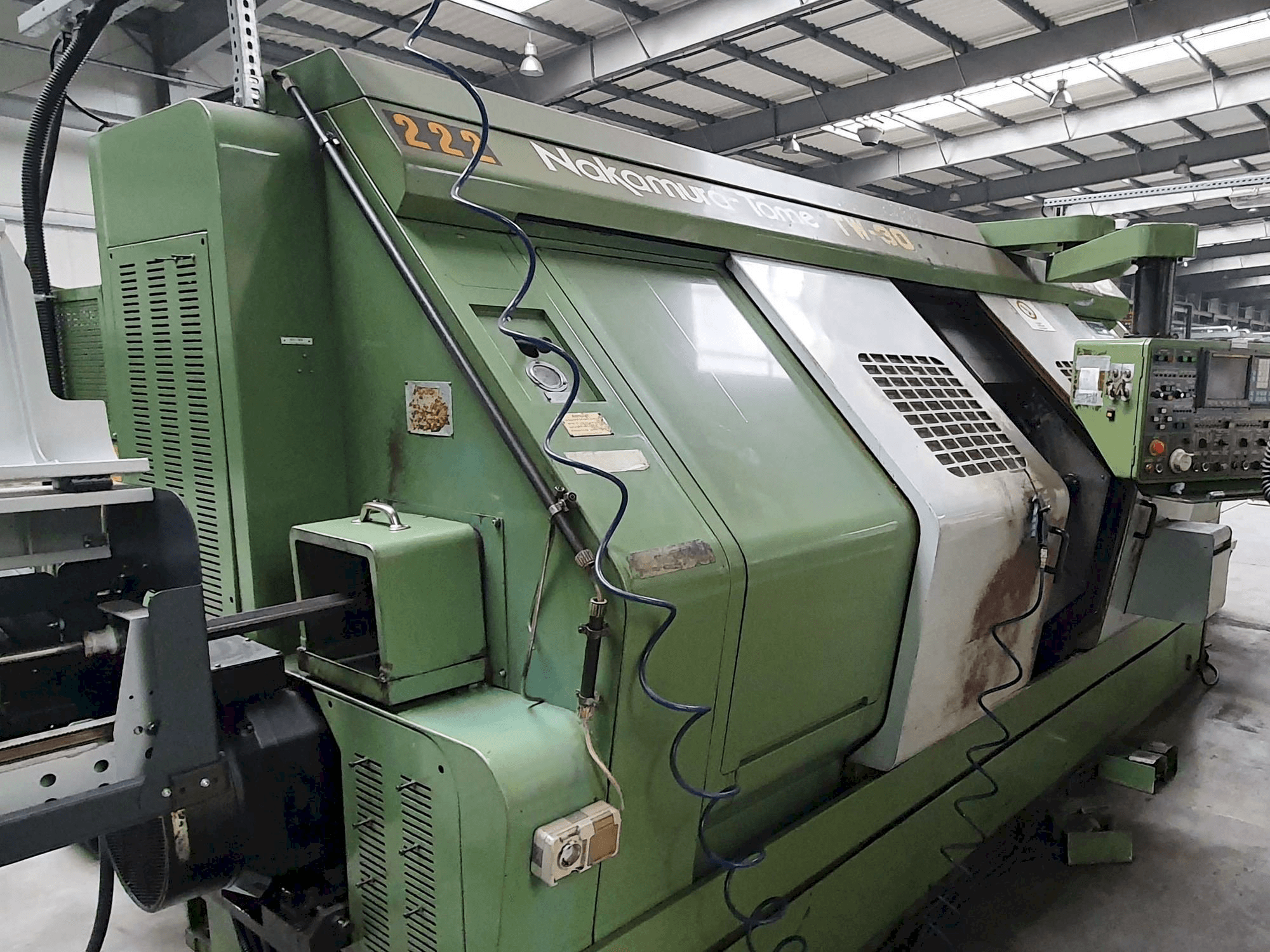

Front view of NAKAMURA-TOME TW-30 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

NAKAMURA-TOME TW-30

Photo Gallery

NAKAMURA-TOME - TW-30PL-TUR-NAK-1989-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
NAKAMURA-TOME TW-30

This NAKAMURA-TOME TW-30 Lathe was manufactured in the year 1989 in Japan. It is operated through a FANUC control unit. This machine can perform with a spindle speed range 35 - 3500 rpm. It is still at production, in good working conditions and ready for tests.

Overview

brand: NAKAMURA-TOME
year: 1989
MODEL: TW-30
application type: Turning
Location: Poland
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - NAKAMURA-TOME TW-30

General Data

Measurements width: 4298 mm
Measurements depth: 2053 mm
Measurements height: 2150 mm
Machine weight: 8000 kg

Control Unit

Brand: FANUC

Main drive

Spindle speed range: 35 - 3500 1/MIN

Movement

X-AXIS Movement: 230 mm
Y-AXIS Movement: 350 mm

Turret

Number of turrets: 2
Number of tool slots: 12 + 12 pcs

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 92 kV
Chip conveyor: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Interface for bar feeder: yes
Machine in good working conditions, still at the production.
Ready for tests
Documentation available

Technical Machine Benefits

Round collet capacity (for left and right unit): 64 mm
Check dia (for left and right unit): 254 mm
Swing over slide covers (for left and right unit): 280 mm
Swing over saddle (for left and right unit): 280 mm
Max. Turning length (for left and right unit): 300 mm
Max turning dim. : 280 mm
Driven tools: yes
Hole through spindle (for left and right unit): 80 mm
Hole through draw dia (for left and right unit): 65 mm
Turret coupling dia 250 mm

Extra Information

The offer does not include the bar feeder, only machine.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
