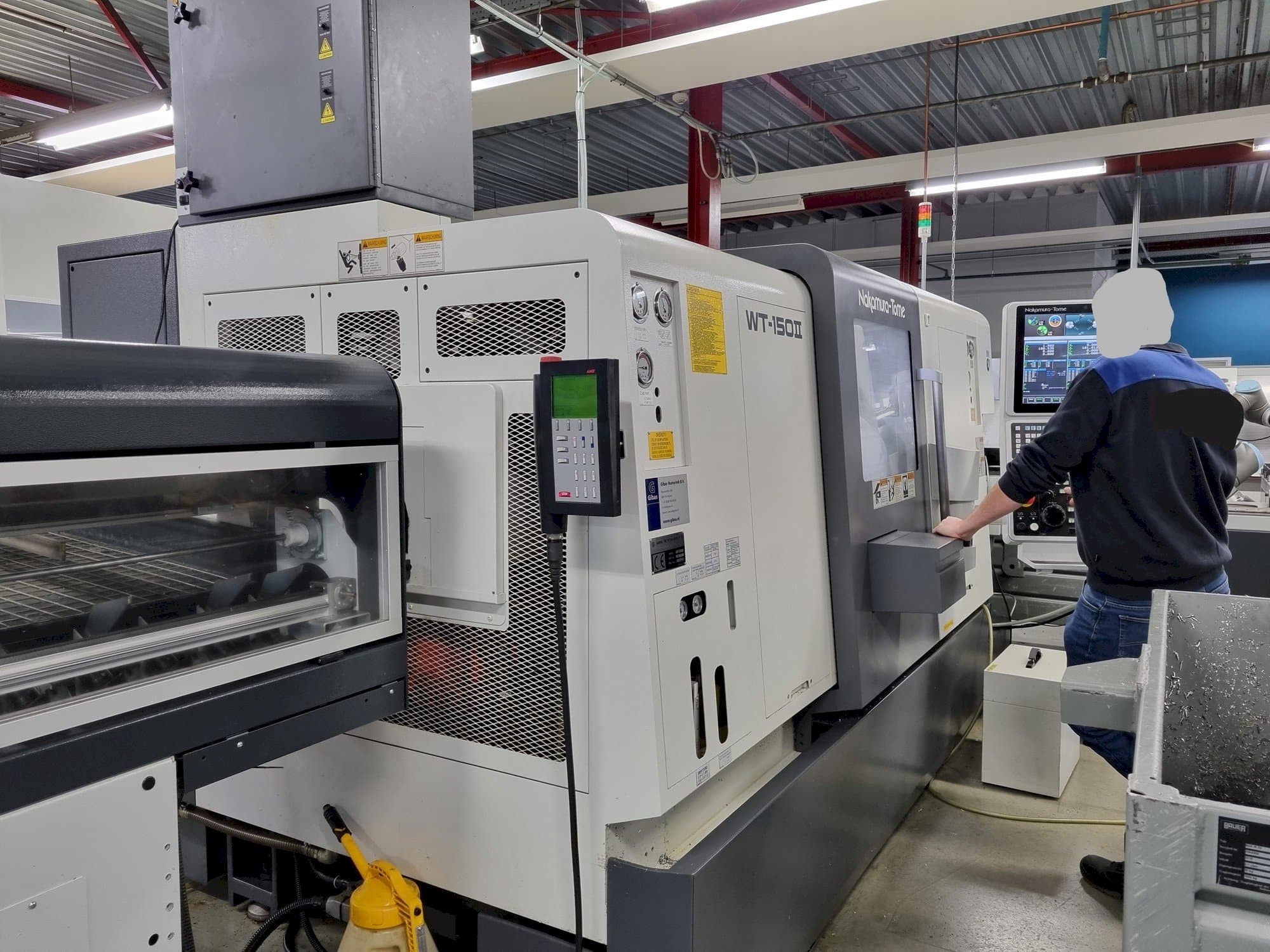

Front view of NAKAMURA-TOME WT-150II machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

NAKAMURA-TOME WT-150II

Photo Gallery

NAKAMURA-TOME - WT-150IINL-TUR-NAK-2017-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
NAKAMURA-TOME WT-150II Lathe

This NAKAMURA-TOME WT-150II Lathe was made in 2017 in Japan and has 17056 hours. It is equipped with a Fanuc 31li-B control unit. The machine has a spindle speed of 4500 rpm and includes an LNS bar feeder, a UR5 cobot, and tool holders.

Overview

brand: NAKAMURA-TOME
year: 2017
MODEL: WT-150II
production hours: 17056
application type: Turning
Location: Netherlands
machine type: Turn-Mill Centre

Technical Information - NAKAMURA-TOME WT-150II

Main drive

Spindle speed range: 4500 1/MIN
Spindle motor power: 11/15 kW
Spindle bore: 65 mm

Media

Chip conveyor: Yes

Additional Information

Additional equipment

LNS barfeeder
UR5 Robot
Tool holders

Machine Benefits

Qualitative Machine Benefits

Double tool presetter
Part catcher type a on the main spindle (ø 65mm x l150mm/3. 0kg)
Part catcher type g on the sub spindle (ø 65mm x l150mm/3. 0kg)
Tri-color alarm lamp, helical interpolation, run program via hand wheel, automatic power-off
Tool live management and load monitor, 5 additional m codes, tool offset 99 pairs
200 program places
High pressure unit 70 bar with filtration, hainbuch minitop on main and counter spindle
Product ejector counter spindle (100mm stroke), glass rulers on both x-axes
Mistbuster 850 oil mist extraction

Technical Machine Benefits

Second spindle
19" touch screen
Nt smart x
Manual guide (luck bei ii)
Nt nurse 2
Powered positions on both turrets 12 pieces (5. 5/3. 7kw - max. 6,000 rpm)
Y-axis on the upper turret (+/- 35mm, total stroke 70mm)
C axis on both spindles
Spindle speed counter spindle 5000 rpm 7. 5/11kw (passage 51 mm)
Air above the two spindles due to take over cleanly

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
