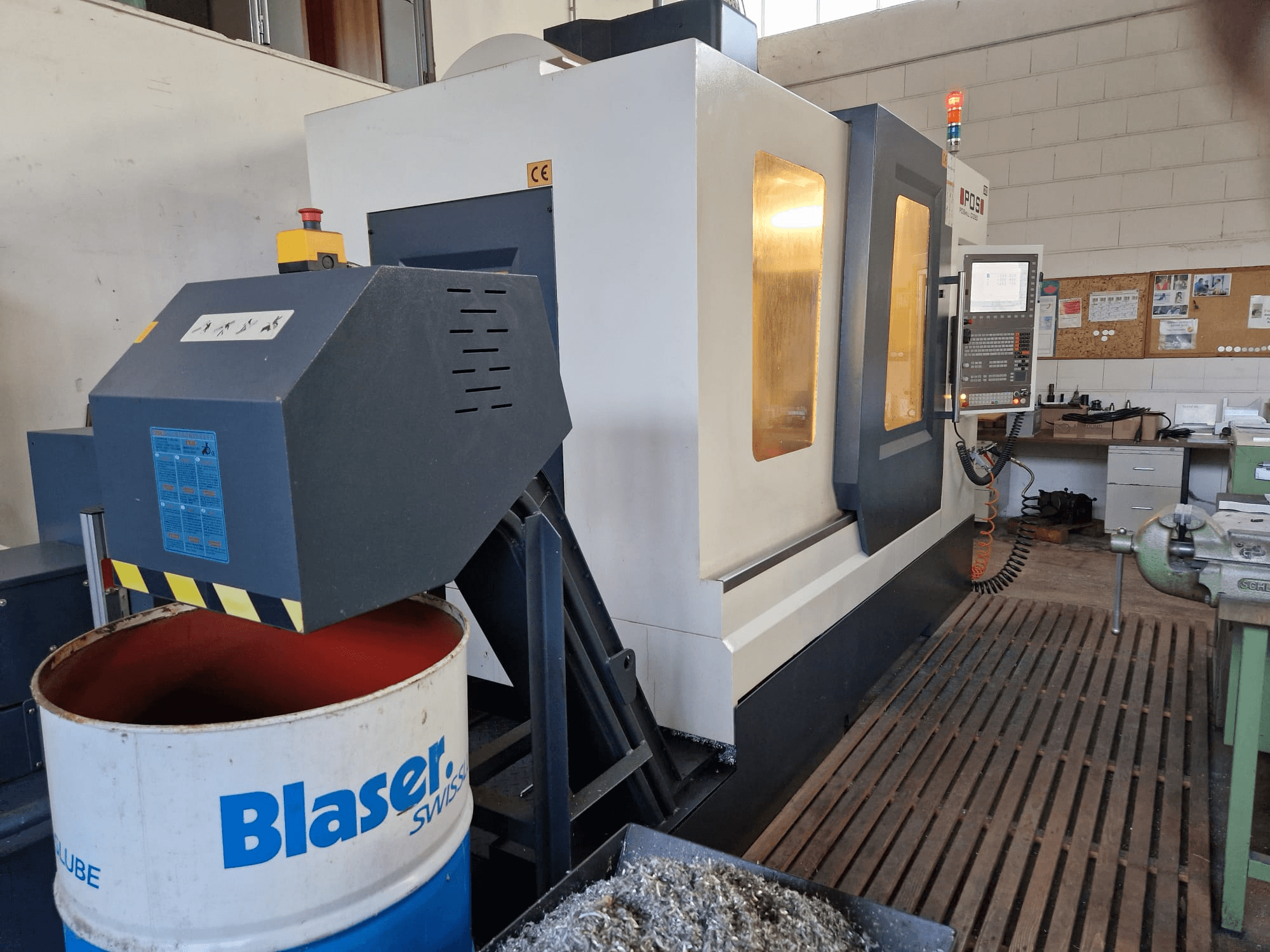

This 3-axis POSmill C 1050 was manufactured in 2014. It features a travel of 1050 mm in the X-axis, 530 mm in the Y-axis, and 630 mm in the Z-axis. The machine is equipped with a Heidenhain iTNC 530 control system and a tool changer that holds 30 tools. If you are looking to get high-quality machining capabilities, consider the POSmill C 1050 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: POSmill
- year: 2014
- MODEL: C 1050
- production hours: 6000
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - POSmill C 1050
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Movement
- Number of Axes: 3
- X-axis Travel: 1050 mm
- Y-axis Travel: 530 mm
- Z-axis Travel: 630 mm
Technical Specification
- Number of Tools: 30
- Spindle Speed: 10000 RPM
- Taper Size: ISO 40
Additional Information
Table size: 1150 x 560 mm
Linear measuring system: Heidenhain X/Y/Z
Through-spindle coolant and air
Internal coolant supply: 20 bar
Coolant pump controlled via M-functions
Connectivity: network and USB
Enclosure: polycarbonate safety enclosure; side windows left and right with hinges
Status signal light
Hours: 610 h
Additional equipment
Chip conveyor, hinged-belt type (external)
Chip flushing system (M-function controlled)
Coolant belt filter system
Oil/coolant separator, electromechanical
Electrical cabinet cooler, air-to-air
Mobile electronic handwheel
Air pistol
Water pistol
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
