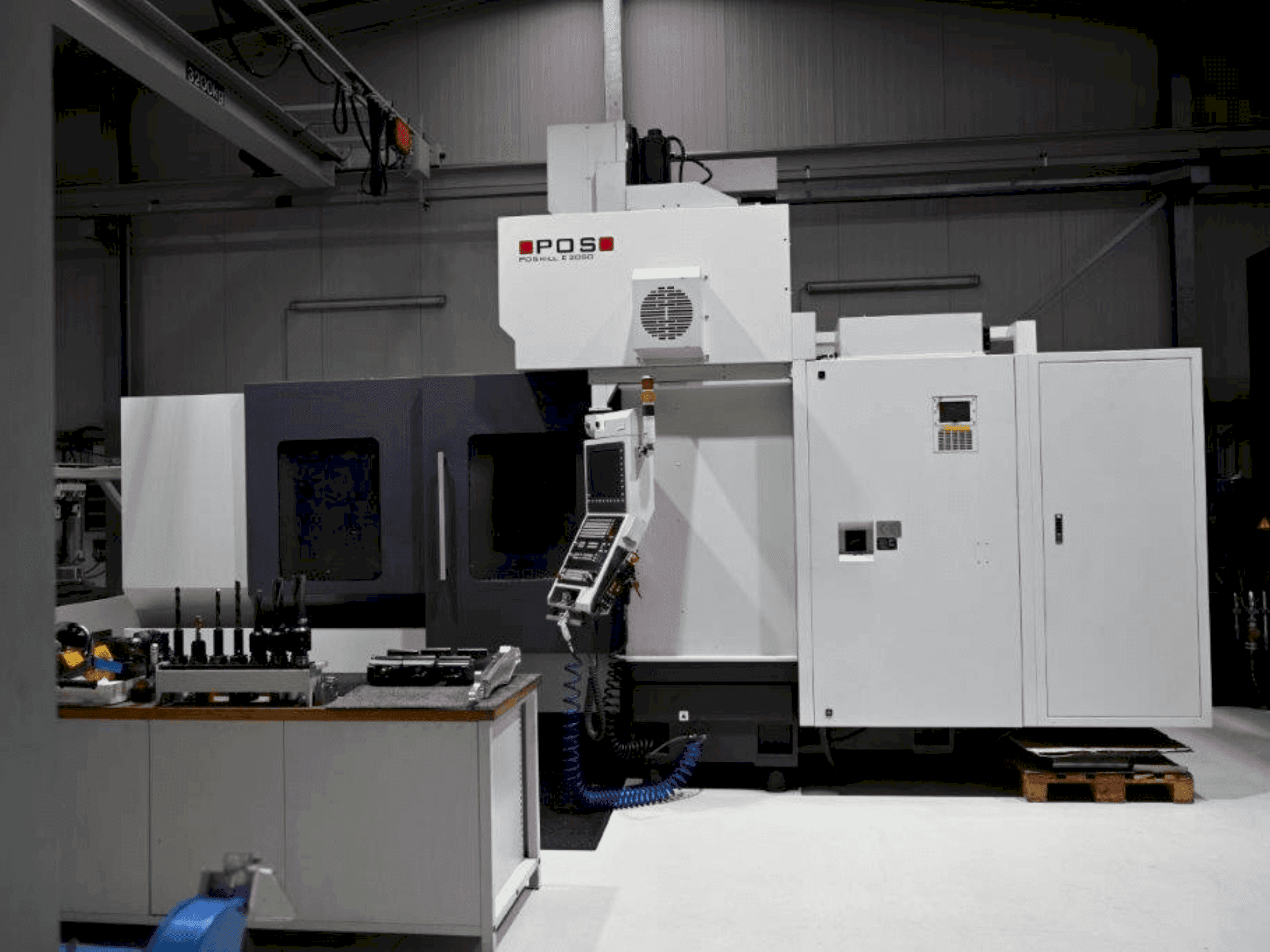

POSmill E 2050 L HSCI
POSmill - E 2050 L HSCI
2015
157,000 €
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- POSMILL E 2050 L HSCI (2015)
This POSMILL E 2050 L HSCI Vertical Machining center machine was manufactured in the year 2015 in Germany and has 2750 spindle hours (since spindle renewal in April 2021). It is equipped with a HEIDENHAIN iTNC 530 control unit and HSK 63. The machine has new inline spindle, new spindle motor and new rotary union (April 2021). It comes with inner cooling through spindle 20Bar with belt filter, tool changer 60 compartment, 3D probe Blum, tool measurement Blum laser, Heidenhain handwheel, blowing air spindle center and operation mode 4. Upon request and for additional cost approx. 250 HSK holders and drill chucks are available (partly new / partly used).
Overview
- brand: POSmill
- year: 2015
- MODEL: E 2050 L HSCI
- production hours: 2750
- application type: Milling
- Location: Germany
- machine type: Machining centers (vertical)
- availability: Immediately
- control unit brand: HEIDENHAIN
- GINDUMAC ID: DE-MIL-POS-2015-00001
Technical Information
General Data
- Machine weight: 20000 KG
Control Unit
- Brand: HEIDENHAIN
- Model: iTNC 530
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 1/MIN
- Tool taper: HSK 63
- Number of axis: 3
Movement
- X-AXIS Movement: 2050 mm
- X-AXIS Rapid traverse: 25 mm/min
- Y-AXIS Movement: 1150 mm
- Z-AXIS Movement: 780 mm
Media
- Internal cooling: Yes
Additional Equipment
- - inner cooling through spindle 20bar with belt filter
- - tool changer 60 compartment
- - 3D probe Blum
- - tool measurement Blum Laser
- - Upon request & for additional cost approx. 250 HSK holders and drill chucks are available (partly new / partly used)
Additional Information
- Technical Machine Benefits:
- - Operating hours 19770h // new spindle hours 2750h // total spindle hours 12034h
- - Hsk 63 tool holder
- - Table load: 6000 kg
- - Heidenhain handwheel
- - Blowing air spindle center
- Qualitative Machine Benefits:
- - New inline spindle, new spindle motor and new rotary union april 2021
- - Operating mode 4
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
