POSmill - H 800 UDE-MIL-POS-2019-00001
Do you have further questions? Contact us.
![sales contact](https://s3.eu-central-1.amazonaws.com/gindumac/staff/profile_pictures/borja-garcia.png)
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
![whatsapp](https://gindumac.s3.eu-central-1.amazonaws.com/images/email-icons/whatsapp.png)
- GINDUMAC
- Products
- Machine Tools
- POSmill H 800 U Universal Machining center

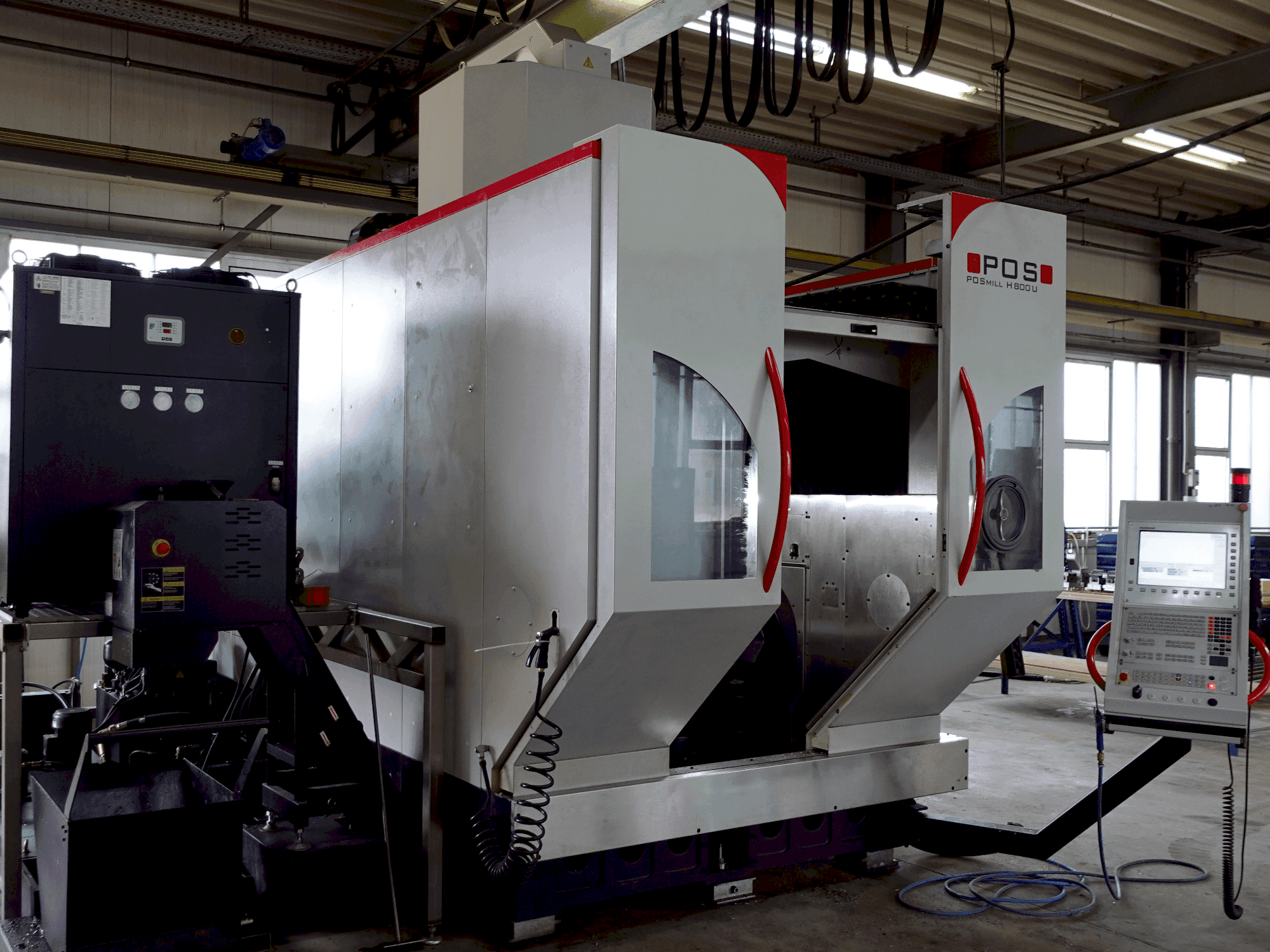

This POSmill H 800 U Universal Machining center was manufactured in the year 2019. It is equipped with a HEIDENHAIN TNC i 530 control unit and has 5 axis. The machine has a spindle speed of 18000 rpm. This High-performance machining center is ideal for both demanding tool and mold making and high-volume production. Standard torque drives on all rotary axes enable full simultaneous 5-axis machining (swivel range: +/-120 degrees, rotary table: 360 degrees endless). See attached the full tech specs of the original order confirmation.
Overview
- brand: POSmill
- year: 2019
- MODEL: H 800 U
- application type: Milling
- Location: Germany
- machine type: Machining centers (universal)
- availability: Sold
- control unit brand: Heidenhain
Technical Information - POSmill H 800 U
Control Unit
- Brand: Heidenhain
- Model: TNC i 530
Main drive
- Spindle speed range: 18000 1/MIN
- Number of axis: 5
Movement
- X-AXIS Movement: 670 mm
- Y-AXIS Movement: 830 mm
- Z-AXIS Movement: 600 mm
Tools
- Type of tool holder: HSK-A 63
Media
- Internal cooling: Yes
Additional Information
- Technical Machine Benefits:
- - Swivel range: -120 to + 120 degrees
- - Rotary table: 360 degrees endless
- - Tool changer 96-fold
- - Hsk-a 63 heidenhain linear measuring system x,y,z
- - Sealing air for all linear measuring system
- - Active switch cabinet cooler air-air
- - Oil cooling for 4th + 5th axis, controlled
- - Spindle cooler, controlled
- - Rotation measuring system heidenhain, 3d probe tool measurement by blum laser
- - Ikz 20 bar with belt filter unit with temperature control coolant
- Qualitative Machine Benefits:
- - High-performance machining center with 5 axis
- - Specific options: POSRobo Basic // POSrobo+ // POS gripper // Stainless steel platform for IKZ system POSmill H series
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
