POSmill - H800UDE-MIL-POS-2017-00002

Name: POSmill H800U
Brand: POSmill
SKU: DE-MIL-POS-2017-00002
Price: 145000 EUR
Availability: InStock

145,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used POSmill H800U For Sale | gindumac.com

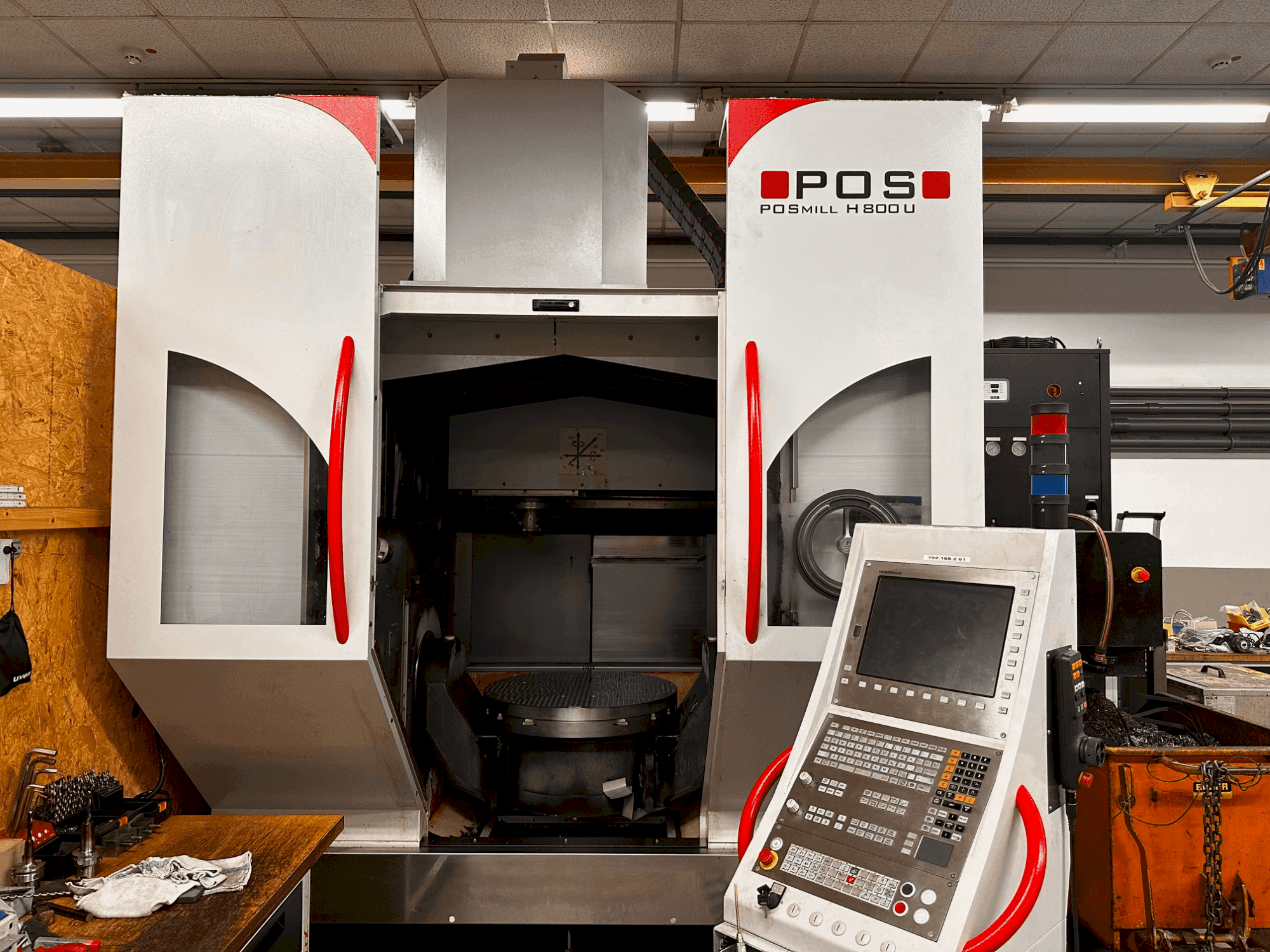

This 5-axis POSmill H800U was manufactured in 2017. A universal machining center featuring a Kessler spindle with 18,000 rpm and a turning diameter of 800 mm. It includes a Heidenhain 530 control and is fully equipped with Heidenhain measuring systems on all axes. Noteworthy is the 96 tool changer positions and the option to purchase a Meusburger zero-point clamping system plate. Consider the opportunity to buy this POSmill H800U universal machining center. Contact us for more information.

Overview

brand: POSmill
year: 2017
MODEL: H800U
production hours: 11200
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - POSmill H800U

General Data

Machine weight: 20000 KG

Control Unit

Brand: HEIDENHAIN
Model: iTNC 530

Main drive

Spindle speed range: 18000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 670 mm
Y-AXIS Movement: 820 mm
Z-AXIS Movement: 600 mm

Tools

Type of tool holder: HSK-A63

Media

Chip conveyor: Yes

General Data

Machine weight: 20000 KG

Control Unit

Brand: HEIDENHAIN
Model: iTNC 530

Main drive

Spindle speed range: 18000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 670 mm
Y-AXIS Movement: 820 mm
Z-AXIS Movement: 600 mm

Tools

Type of tool holder: HSK-A63

Media

Chip conveyor: Yes

Additional Equipment

- Accessories: Zero-point clamping system, chip conveyor

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 96 tool changer positions
- - Pedestal to save space, coolant supply stacked (rare)
- - Large spindle cooler
- - Fully equipped with heidenhain measuring systems on all axes
- - Kessler swing arm, turning diameter 800 mm, fully usable with zero-point system
- - Internal coolant pressure: 40 bar
- - Coolant system: water and air external and through spindle, internal coolant pressure 40 bar with 600 liters
- - Nc swivel rotary table: Ø 800
Qualitative Machine Benefits:
- - New service in april 2025 with rotary union replaced (€8600)

Extra information

- A Meusburger zero-point clamping system plate (new price was €9500) can be purchased upon request. Available for purchase, negotiable.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
