SHW - Unispeed 3000DE-MIL-SHW-2022-00001

Name: SHW Unispeed 3000
Brand: SHW
SKU: DE-MIL-SHW-2022-00001
Price: 1080000 EUR
Availability: InStock

1,080,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

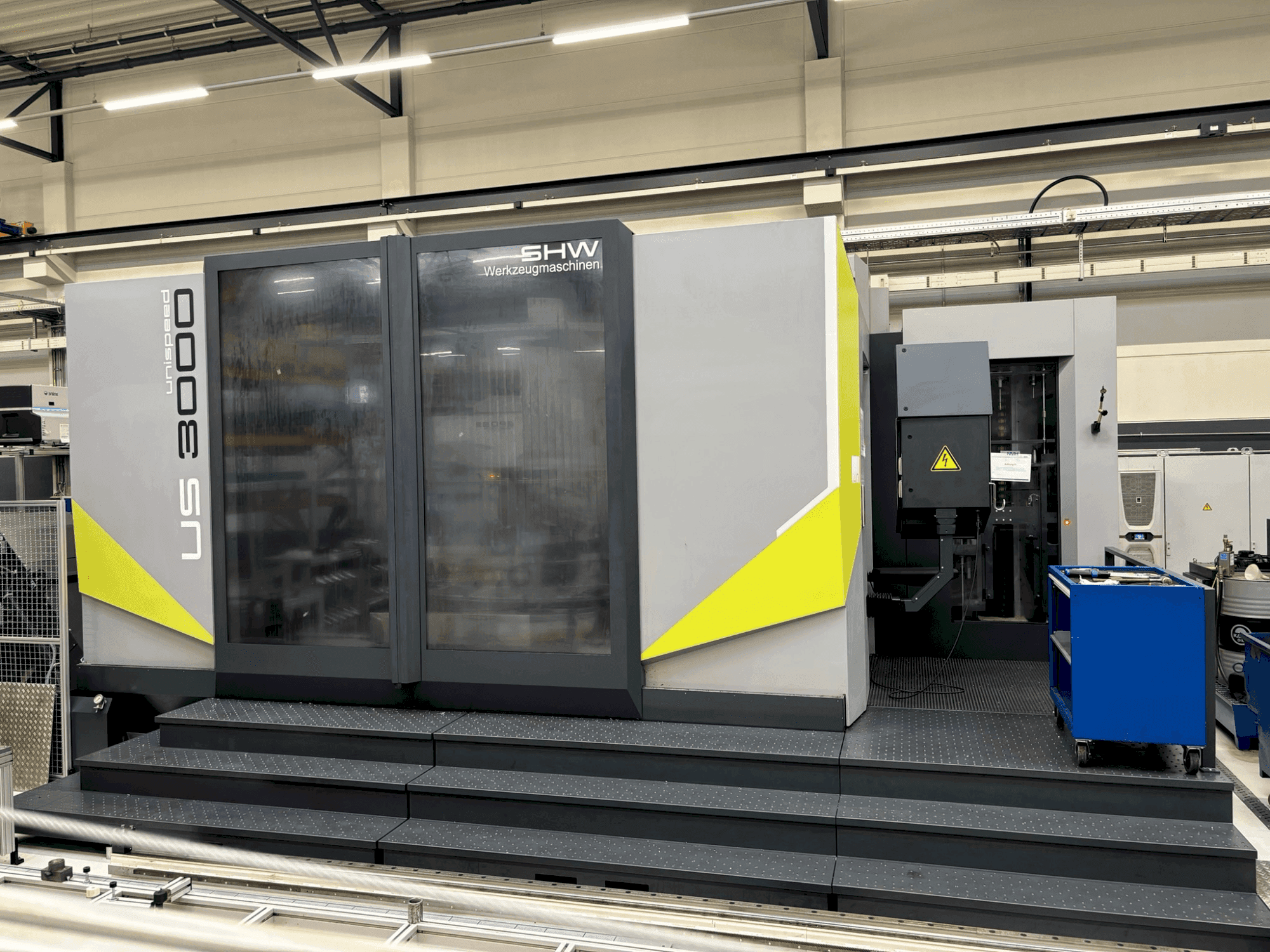

Used Milling machine SHW Unispeed 3000 - 2022 - for sale | gindumac.com

This milling machine was manufactured in 2022. Equipped with KUKA KR 270 R2700 ultra, the SHW Unispeed 3000 offers precision and reliability in machining operations. Its 5-axis configuration with three linear and two rational axes ensures efficient material removal and accurate shaping. The robust build and advanced automation capabilities make it suitable for various industrial applications. For those seeking a dependable machining solution, consider this SHW Unispeed 3000 milling machine. For further details, contact us today.

Overview

brand: SHW
year: 2022
MODEL: Unispeed 3000
production hours: 4952
application type: Milling
Location: Germany
machine type: Gantry Milling Machine
availability: Immediately
control unit brand: Heidenhain

Technical Information - SHW Unispeed 3000

Control Unit

Brand: Heidenhain
Model: TNC640

Main drive

Spindle speed range: 6000 1/MIN
Tool taper: SK50 BIG-PLUS
Number of axis: 5
Max payload: 270 kg
Max reach: 2696 mm

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1300 mm
Z-AXIS Movement: 1300 mm

Table

Table load: 8000kg

Tools

Number of stations: 102
Max weight: 30 kg
Max tool diameter: 125 mm
Max tool length: 500 mm

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Swivel range c-axis +-180°
- Swivel range a-axis +-180°
- radio measuring probe RMP 60
- DP/PN coupler

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Electronic handwheel hr 510 // heidenhain kinematics opt
- - Clamping surface 1600mm // t-slots 22mm // center distance 160mm // speed 5 1/min // torque 10,000 nm // tool pull-in force 20 kn
- - Hybrid frame x-axis 3000mm // x-axis drive via ball screw diameter 80mm // y-axis drive via ball screw diameter 63mm // drive z-axis via ball screw diameter 63mm
- - Orthogonal milling head c-axis 1°: liquid-cooled milling head
- - Swivel range c-axis +-180° // swivel range a-axis +-180°
- - Torque 637nm // torque 875nm
- - Opening width of the doors with unispeed 3000 2900mm
- - Coolant system 950l
- - Rotary distribution 8-fold 200 bar rotary table
- - Control on: 20541h // machine on: 16387h // program run: 7491h // spindle hours: 4952h
Qualitative Machine Benefits:
- - Electric door drive
- - Shw uni-scan
- - Housing design tft shaft
- - Cable drag steel cover version

Extra information

- Two identical units are available.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
