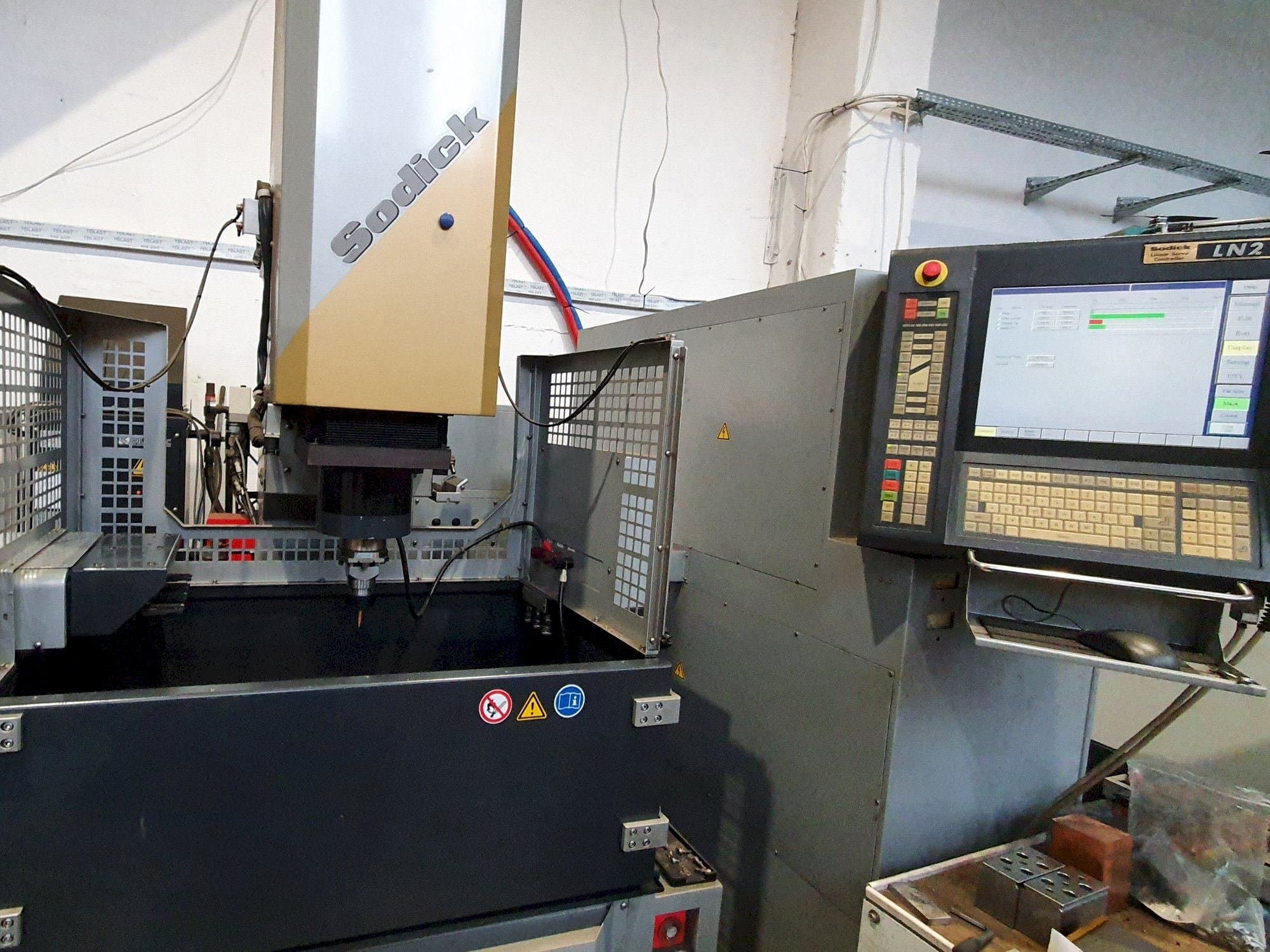

Front view of Sodick AM3L (2005) machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Sodick AM3L

Photo Gallery

Sodick - AM3LPL-EDM-SOD-2005-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Sodick AM3L Erosion Machine

This Sodick AM3L Erosion Machine was manufactured in 2005 in Thailand. It has 16286 cutting hours. This 3 axis machine presents a table dimensions of 600 x 400 mm and operates through a control unit of the same brand. This machine is in good condition and ready for tests. Full documentation available.

Overview

brand: Sodick
year: 2005
MODEL: AM3L
production hours: 16286
application type: EDM
Location: Poland
machine type: Wire EDM Machine
control unit brand: SODICK

Technical Information - Sodick AM3L

General Data

Measurements width: 1260 mm
Measurements depth: 1250 mm
Measurements height: 2315 mm
Machine weight: 2000 kg

Control Unit

Model: LN2
Brand: SODICK

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 300 mm
Y-AXIS Movement: 200 mm
Z-AXIS Movement: 250 mm

Workpiece

Workpiece weight: 550 kg

Table

Outer length: 600 mm
Outer width: 400 mm

Tools

Number of index: 4 pcs
Type of tool holder: Erowa

Additional Equipment

- Probe tools
- Several electrode holders
- Ceramic plate table
- Fire extinguisher
- Oil chiller

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Work tank size (w x d x h) – 900 x 520 x 300 mm
- - Work tank capacity – 120 l
- - Max electrode weight – 50kg
- - Electrode mounting face dia. – 100 mm
- - Programable axis – x, y, z
- - Table guide system – linear motion guide
- - Head drive (z axis) – linear motor
- - Dielectric tank capacity: 400 l
- - Filtration system – replaceable paper filter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
