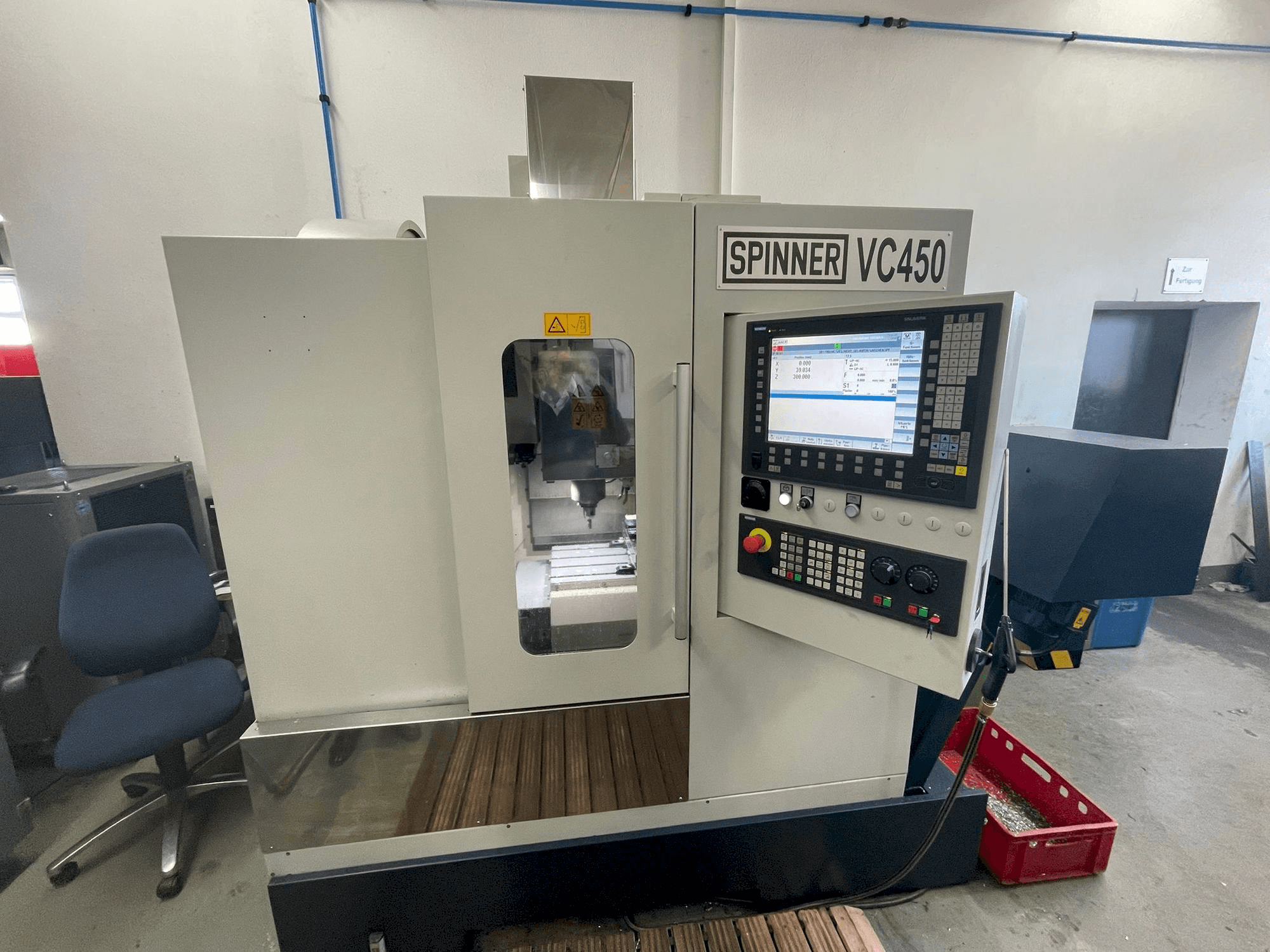

SPINNER VC 450 Vertical Machining Center

This SPINNER VC 450 Vertical Machining Center was manufactured in the year 2017 in Germany and has 4827 production hours. It is operated through a Siemens 840D control unit. This 3 axis machine can operate with a spindle speed up to 15000 rpm.

Overview

brand: SPINNER
year: 2017
MODEL: VC 450
production hours: 4827
application type: Milling
Location: Germany
machine type: Machining centers (vertical)
availability: Sold
control unit brand: Siemens
GINDUMAC ID: DE-MIL-SPI-2017-00002

Technical Information

General Data

Measurements width: 2390 mm
Measurements depth: 1700 mm
Measurements height: 2515 mm
Machine weight: 3500 kg

Control Unit

Brand: Siemens
Model: 840D

Main drive

Spindle speed range: 15000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 450 mm
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 400 mm
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 400 mm
Z-AXIS Rapid traverse: 36 m/min

Table

Outer length: 770 mm
Outer width: 410 mm
Table load: 200 kg

Tools

Type of tool holder: SK40

Media

Chip conveyor: Yes

Additional Equipment

- accessories: approx. 40 SK40 receptacles

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool magazine: 24
- - Min. Distance spindle nose - table 115 mm
- - Max. Distance spindle nose - table 515 mm
- - T-slots 16, 4 mm, 100 mm
- - Power pmax 16 kw
- - Torque mmax 60 nm
- - Max. Tool diameter 80 mm max.
- - Tool length 200 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
