Star - SB-20R type EPL-TUR-STA-2014-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Star SB-20R type E

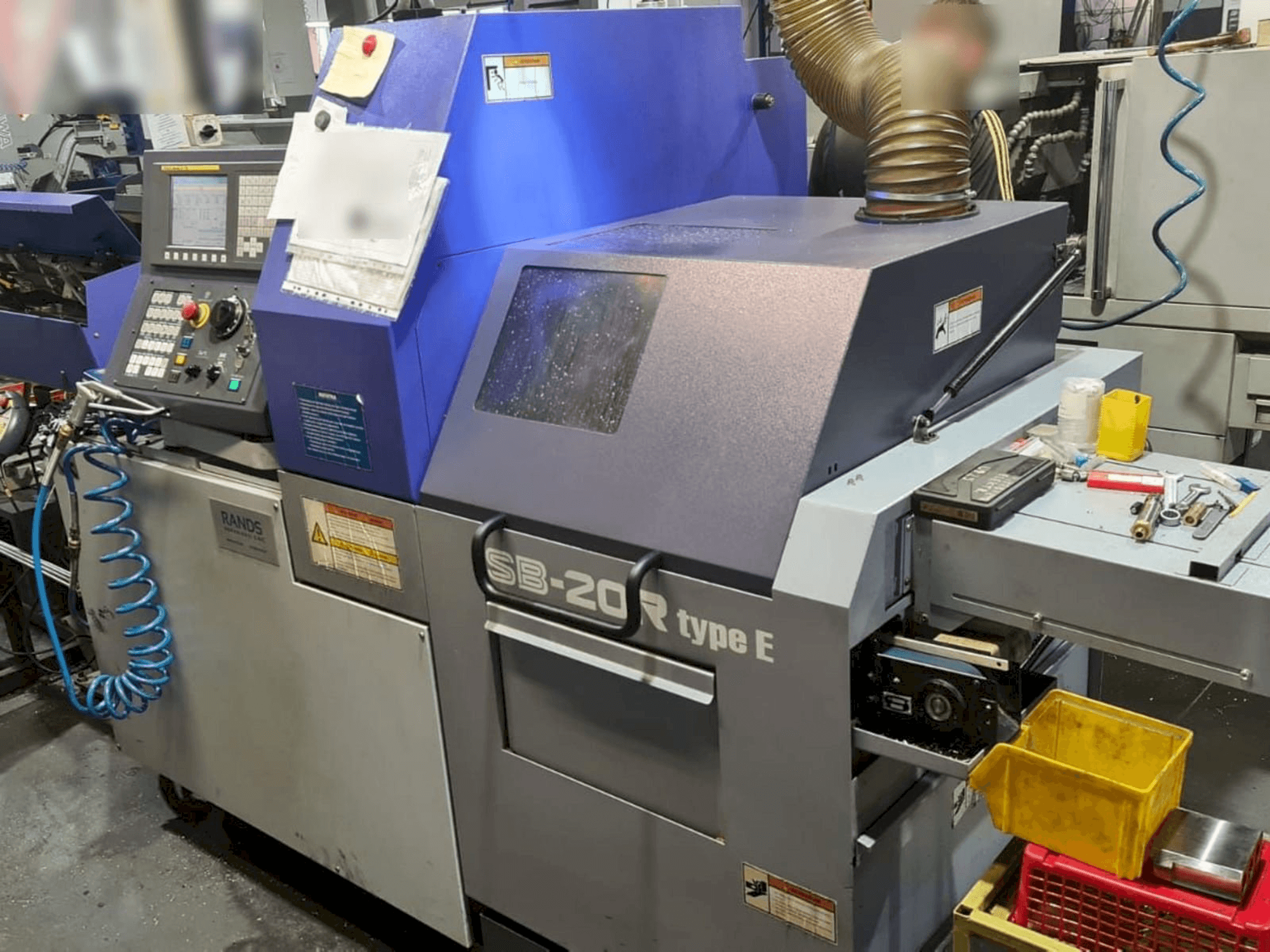

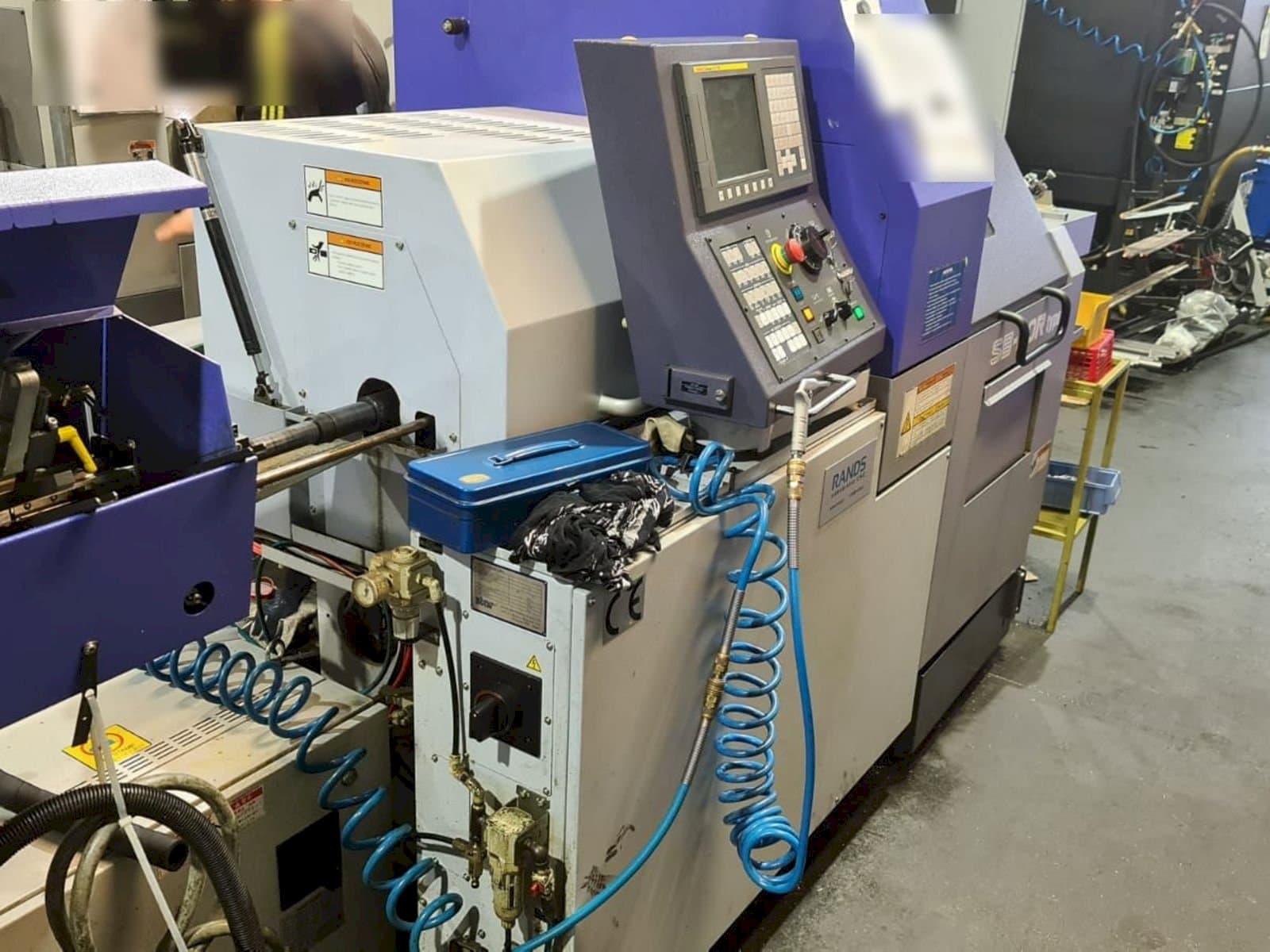

This Star SB-20R type E Lathe was manufactured in Japan in the year 2014. It has a record of 19898 hours, of which 12658 are working hours and 2122 are production hours. This machine can work with a spindle speed up to 10000 rpm and a headstock stroke 205 mm. It includes several tools as a sleeve set and a long workpiece ejector housing and a kit with spare parts (all brand new) . This machine is in good working conditions and still at production.
Overview
- brand: Star
- year: 2014
- MODEL: SB-20R type E
- production hours: 19898
- application type: Turning
- Location: Poland
- machine type: Swiss Type Turning Machine
Technical Information - Star SB-20R type E
Dimensions
- Machine Depth: 1177 mm
- Machine Height: 1760 mm
- Machine Weight: 1700 kg
Technical Specification
- Spindle Power: 2.2 kW
- Spindle Speed: 10000 RPM
Additional Information
Additional equipment
- FMB Minimag 3200/20 - automatic bar loading magazine feeder: 1 pc
- Toolholder for boring bars dia. 6mm - 2 pcs
- Sleeve set - 1 set
- Driven holder for milling and drilling ER16: 1 pc
- Interception ER16 driven holder: 1 pc
- Ejector for long workpieces with a guide tube 21 mm F25: 1 pc
- Long workpiece ejector housing: 1 pc
- Belt conveyor of details: 1 pc
- High pressure pump NJ500-E 30 bar, 12 l / min: 1 pc
- A kit with spare parts (all brand new)
Machine Benefits
Qualitative Machine Benefits
- Machine in good working condition and still at the production
- 3 pcs of filters for the pump
- 1 pc. Roller shutter covering the z axis guides for the counter spindle
- 2 pcs of belts for the main spindle, a socket with bearings for the guide sleeve
- Set of rebound springs collets for both spindles
- Set of fingers to clamp the collets for both spindles
Technical Machine Benefits
- Max. Machining diameter: dia. 20 mm
- Max. Headstock stroke: 205 mm
- Rapid feed rate: 35m/min (x1, y1, z1, x2, z2)
- Counter spindle: yes
- Drive motor: 1. 0 kw (continuous) / 1. 2 kw (5min. / 30%ed)
- Number of turning tools: 6 pcs // number of driven tools: 4 pcs // number of drilling tools: 4 pcs for both spindles // additional drilling and milling tools for the counter spindle: 4 pcs
- Sub spindle speed: 9000 rpm
- Sub spindle motor: 0. 55 kw / 1. 1 kw (15min. / 40%ed)
- Main spindle indexing angle: c-axis control
- Sub spindle indexing angle: c-axis control
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
