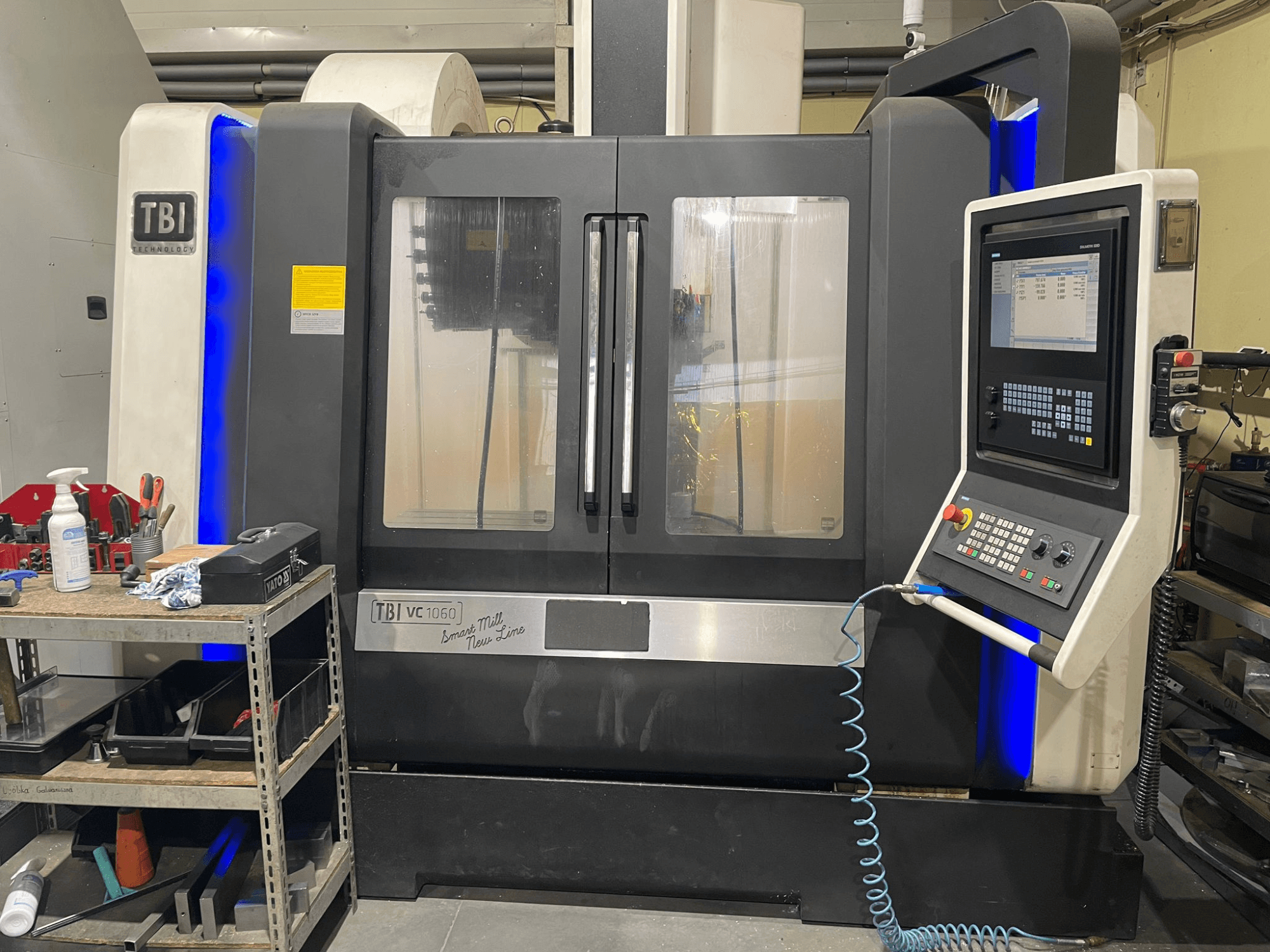

TBI VC 1060 HH Vertical Machining Centre, front view, showing control panel, dust cover, and illuminated blue accents.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TBI VC 1060 HH

Photo Gallery

TBI - VC 1060 HHPL-MIL-TBI-2020-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used TBI VC 1060 HH For Sale | gindumac.com

This 3-axis TBI VC 1060 HH was manufactured in 2020. It features an X-axis travel of 1000 mm, Y-axis travel of 600 mm, and Z-axis travel of 650 mm. The machine includes a robust table size of 1100 x 500 mm and a maximum table load of 1000 kg. If you are looking to get high-quality machining capabilities, consider the TBI VC 1060 HH vertical machining centre we have for sale. Contact us for further details.

Overview

brand: TBI
year: 2020
MODEL: VC 1060 HH
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - TBI VC 1060 HH

Control Unit

Control Brand: SIEMENS
Control Model: SINUMERIK 828D

Dimensions

Machine Height: 2800 mm
Machine Length: 2900 mm
Machine Weight: 6800 kg
Machine Width: 2100 mm
Table Load: 1000 kg

Movement

Number of Axes: 3
X-axis Travel: 1000 mm
Y-axis Travel: 600 mm
Z-axis Travel: 650 mm

Technical Specification

Max. Tool Weight: 7 kg
Spindle Speed: 10000 RPM
Taper Size: SK 40

Additional Information

Rigid tapping (no compensation holder required)
Manual handwheel
Table size: 1100 × 500 mm
Distance spindle to table: 150–800 mm
Through-spindle coolant: 20 bar
Coolant tank capacity: 330 l; flow: 200 l/min
Rapid traverse (X/Y/Z): 36 / 36 / 36 m/min
Positioning accuracy: ±0.005 mm
Repeatability: ±0.003 mm
Linear guideways X/Y/Z (roller type)
Telescopic covers for X/Y/Z axes
Pneumatic counterbalance on Z-axis
Digital axis drives
Tool magazine: 24 positions (SK40), double arm
Max tool diameter: 80 mm; max tool length: 300 mm
Tool change time: 1.5 s (fast double-arm tool changer)
Spindle temperature stabilization
Spindle air purge system
Tool cooling: air and coolant
Central lubrication system
Electrical cabinet cooling
Data interface: V.24 / RS232-C / USB
Chip flushing system (bottom)
Total power: 35 kVA

Additional equipment

Integrated chip conveyor with bin
Oil skimmer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
