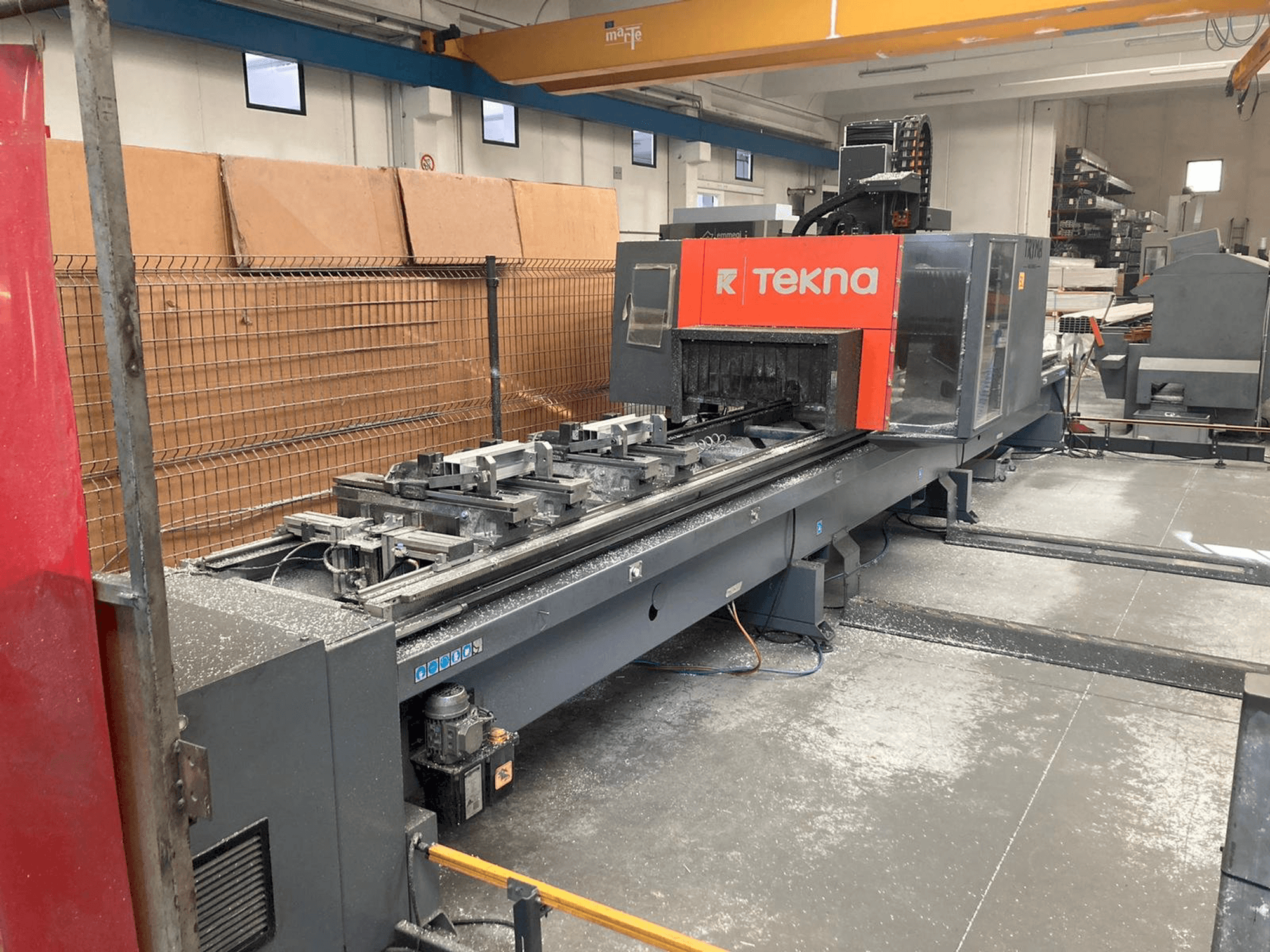

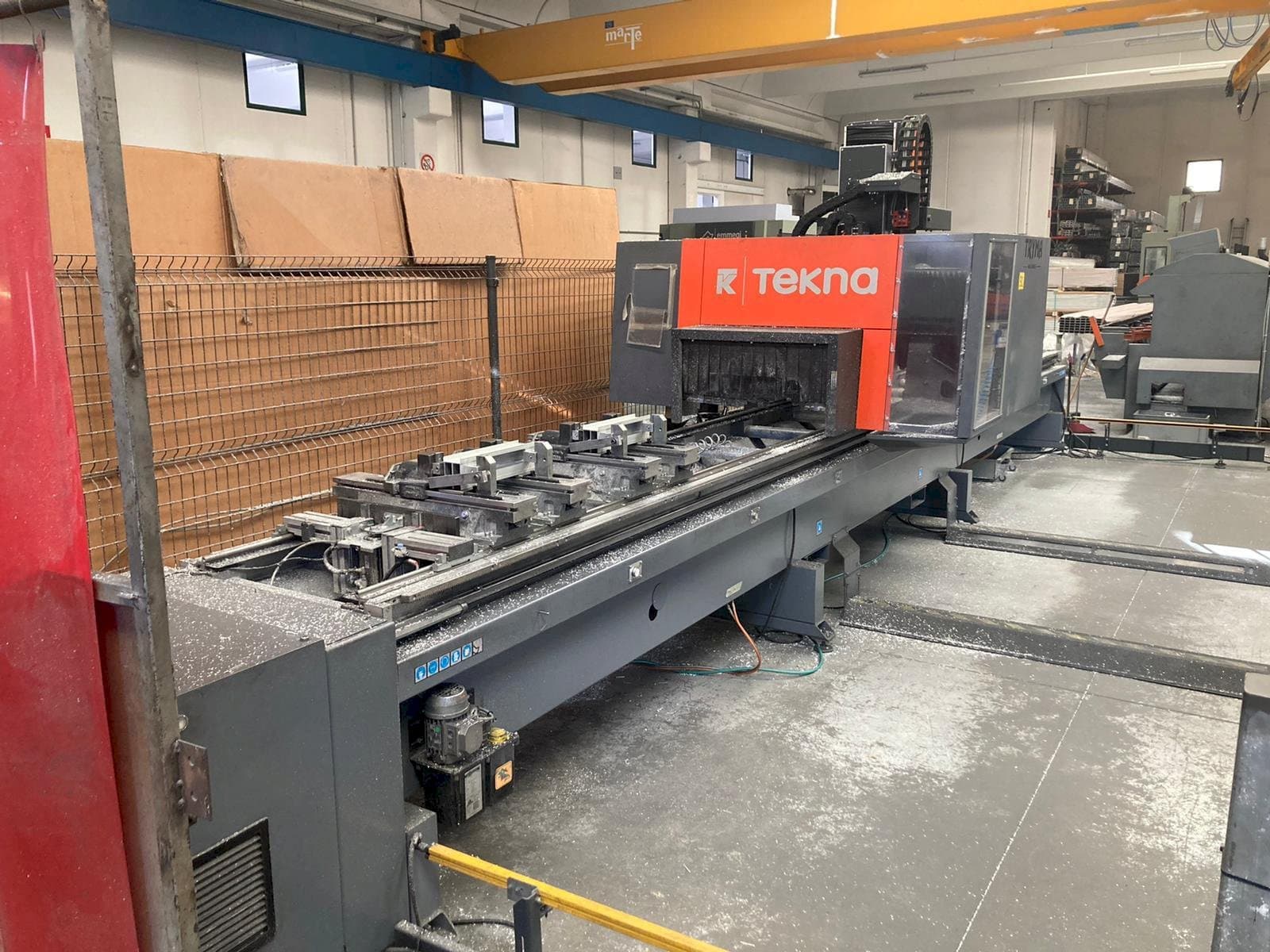

Tekna TKE 944-7 Vertical Machining center

This Tekna TKE 944-7 Vertical Machining center was made in Italy in the year 2017. This 4-axis machining centre is designed for drilling, milling and threading at any angle from -90° to +90° on bars or pieces in aluminium, PVC, light alloys in general and steel. The 8.5 kW electrospindle with ISO 30 tool connection is able to perform even heavy-duty machining with excellent, rapid and accurate results. It works with a spindle speed up to 24000 rpm.

Overview

brand: Tekna
year: 2017
MODEL: TKE 944-7
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold

Technical Information - Tekna TKE 944-7

Main drive

Spindle speed range: 24000 1/MIN
Spindle motor power: 8,5 KW
Number of axis: 4

Movement

X-AXIS Movement: 7000 mm
X-AXIS Working Feed: 80
Y-AXIS Movement: 1070 mm
Y-AXIS Working Feed: 30
Z-AXIS Movement: 550 mm
Z-AXIS Working Feed: 30
B-AXIS Movement: +-90º MM
B-AXIS Working Feed: 6000

Tools

Number of index: 12 tools
Max tool diameter: 180 mm
Type of tool holder: ISO 30

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum torque: 13,5nm
- - Electronic touch probe system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
