TRENS SBL 500/750

Photo Gallery

TRENS - SBL 500/750SK-TUR-TRE-2018-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

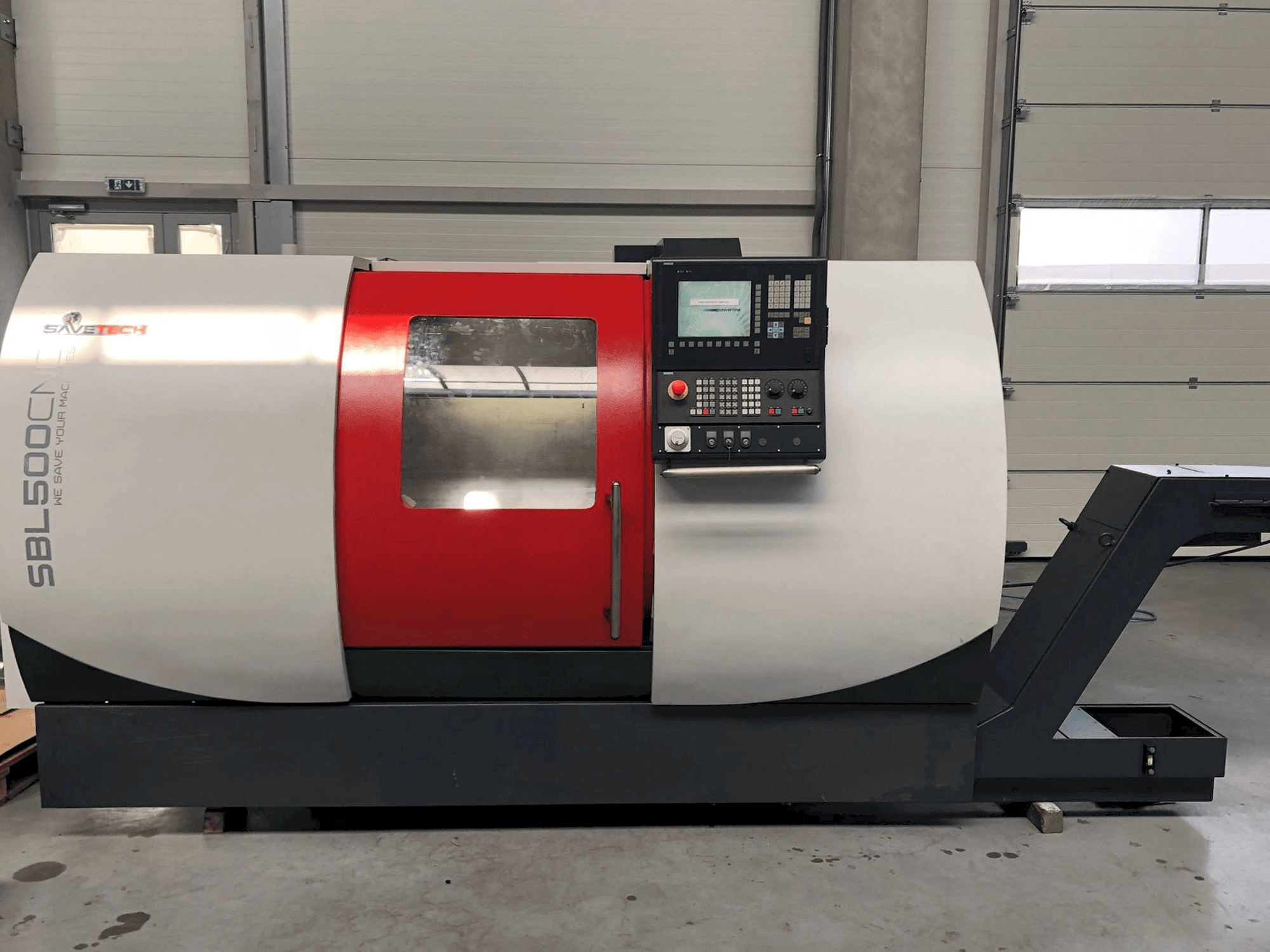

TRENS SBL 500/750 Lathe

This TRENS SBL 500/750 Lathe was manufactured in 2002 in Slovakia but completely refurbished in 2018. Equipped with a SIEMENS SINUMERIK 810D Control unit, this machine operates with a spindle speed up to 4200 rpm and a maximum cutting length of 750 mm. Must be noted that this machine comes with a 12 month warranty.

Overview

brand: TRENS
year: 2018
MODEL: SBL 500/750
production hours: 0
application type: Turning
Location: Slovakia
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - TRENS SBL 500/750

General Data

Machine weight: 5250 kg

Control Unit

Model: SINUMERIK 810D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 4200 1/MIN

Movement

X-AXIS Movement: 270 mm
Z-AXIS Movement: 925 mm

Workpiece

Workpiece z: 750 mm
Workpiece weight: 420 kg

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Power consumption: 40 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cooling unit for outer cooling
- - Turning diameter over bed 630 mm
- - Max. Cutting length 750 mm
- - Max. Turning diameter wiht tailstock 410 mm
- - Main spindle bore 92 mm
- - Sauter head with 12 positions (with driven tools)
- - Max. Bar diameter 74 mm
- - Spindle taper metric 100
- - Hydraulic tailstock
Qualitative Machine Benefits:
- - Refurbished machine, 12-month warranty

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
