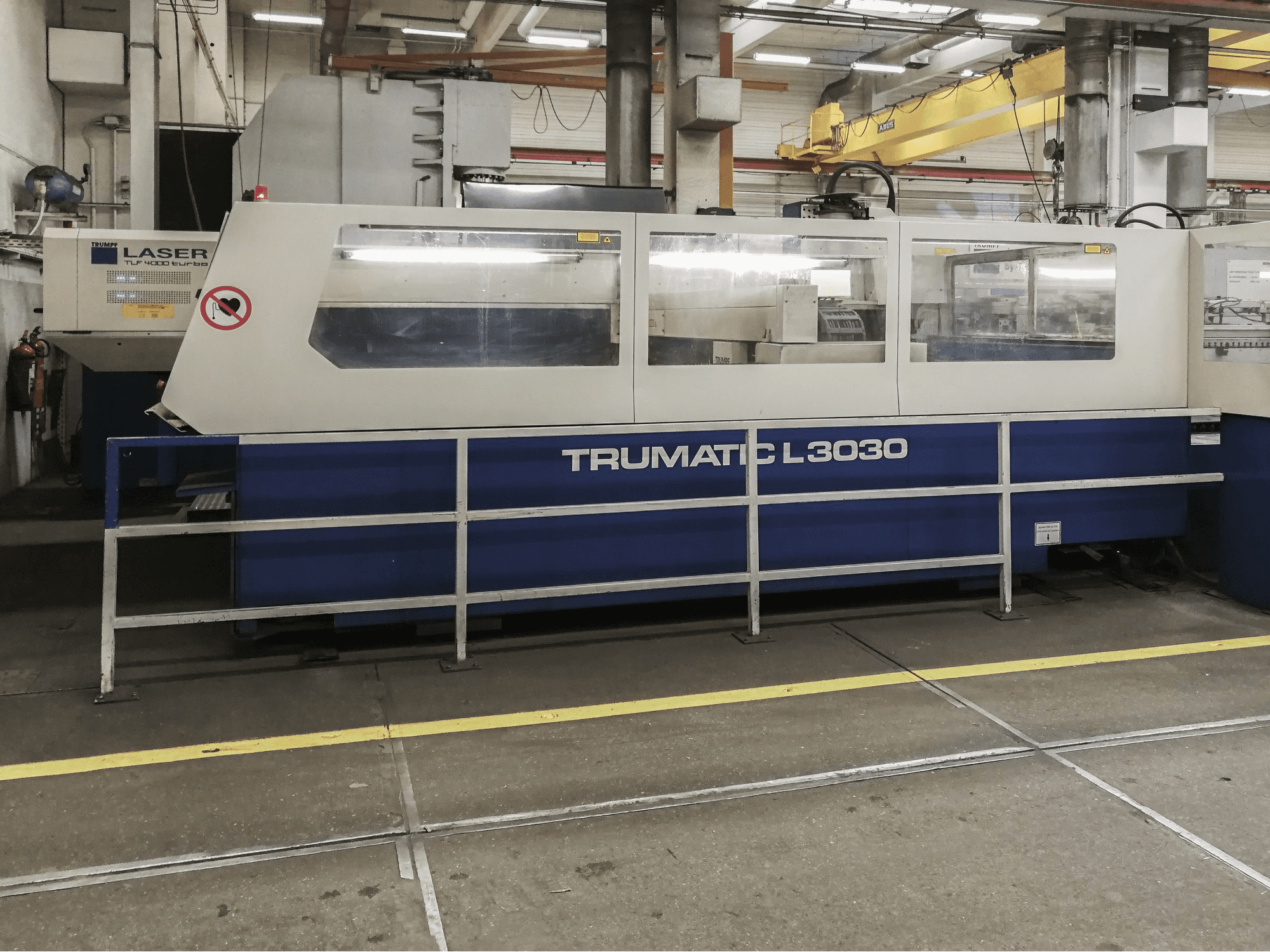

Left view 1 of Trumpf Trumatic L3030 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic L3030

Photo Gallery

TRUMPF - Trumatic L3030DE-LAS-TRU-2001-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Pre-Owned Trumpf Trumatic L3030 Laser Cutting Machine

This Trumpf Trumatic L3030 Laser Cutting Machine was manufactured in 2001 in Switzerland and has a working record of approximately 47944 laser hours. This equipment is operated through a SIEMENS SINUMERIK 840D Control unit and mainly processed mild steel up to 16 mm of thickness in the past. Thanks to the included Trumpf LiftMaster, loading and unloading processes or pallet handling and part removal is mostly automated.

Overview

brand: TRUMPF
year: 2001
MODEL: Trumatic L3030
production hours: 47944
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic L3030

General Data

Measurements width: 4700 mm
Measurements depth: 9300 mm
Measurements height: 2200 mm

Control Unit

Brand: SIEMENS
Model: SINUMERIK 840D

Main drive

Laserpower: 4 kW
Laser type: CO2
Laser brand: Trumpf TruFlow

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm

Max Material thickness

Steel: 20 mm
Stainless steel: 16 mm
Aluminum: 10 mm

Machine specific data

Size of cutting head 1: 5"
Size of cutting head 2: 7.5"

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 66 kVA
Air pressure: 6 bar

Additional Equipment

- Trumpf LiftMaster

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
