AGIE - CUT CLASSIC V2PT-EDM-AGI-2007-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- AGIE CUT CLASSIC V2 Erosion machine

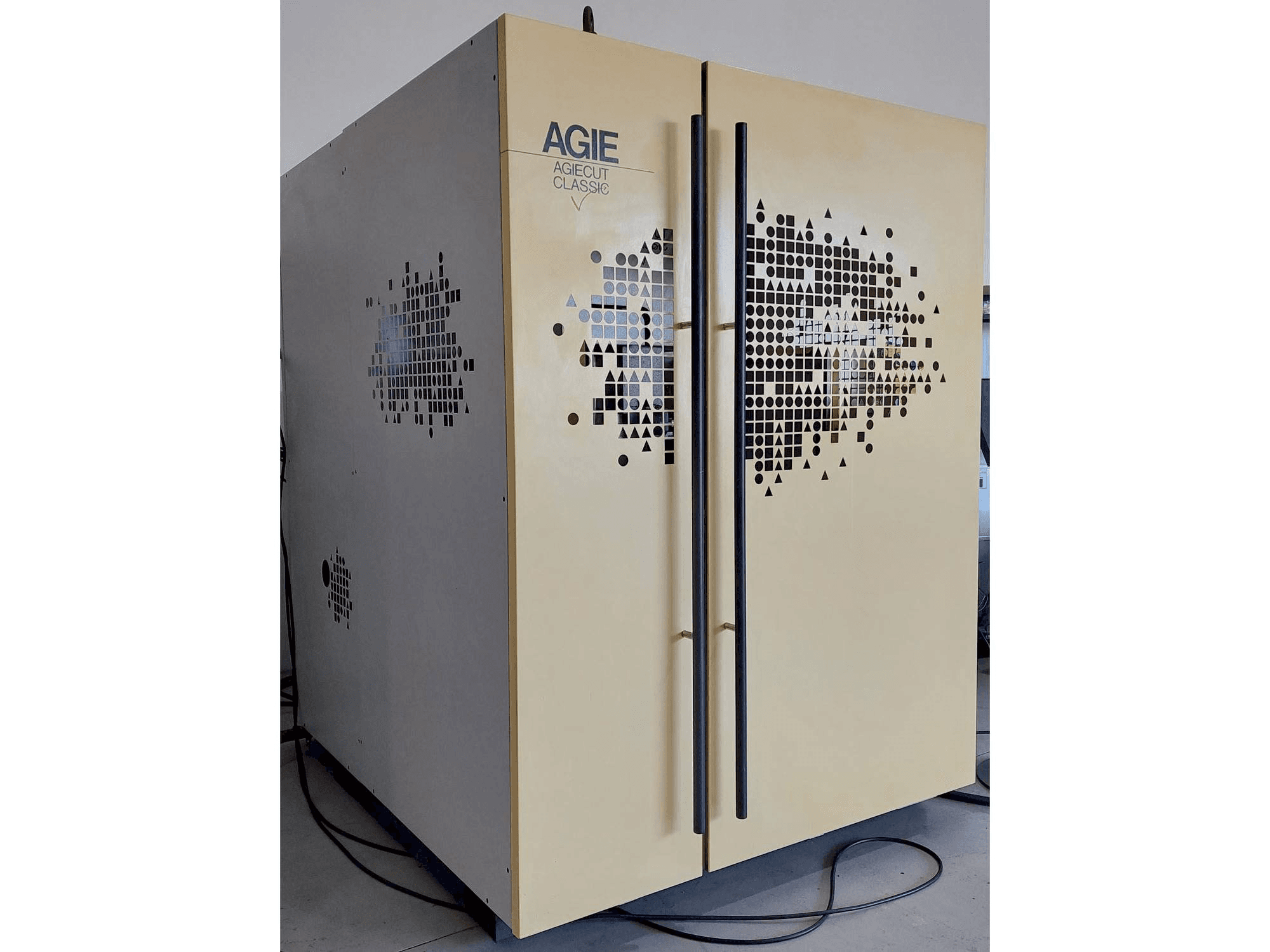

This AGIE CUT CLASSIC V2 Erosion machine was manufactured in the year 2007 in Switzerland. It is equipped with 4 axis. The machine has a standard spool size of 25 kg. It is refurbished, in perfect condition and like new.
Overview
- brand: AGIE
- year: 2007
- MODEL: CUT CLASSIC V2
- application type: EDM
- Location: Portugal
- machine type: Wire EDM Machine
- availability: Sold
Technical Information - AGIE CUT CLASSIC V2
General Data
- Measurements width: 2040 mm
- Measurements depth: 1640 mm
- Measurements height: 2220 mm
- Machine weight: 2680 kg
Main drive
- Number of axis: 4
Movement
- X-AXIS Movement: 350 mm
- Y-AXIS Movement: 250 mm
- Z-AXIS Movement: 256 mm
- V-Axis Movement: (+-) 70 mm
- U-Axis Movement: (+-) 70 mm
Additional Information
- Technical Machine Benefits:
- - Max. Part dimension: 750x550x250mm
- - Max. Weight part: 450 kg
- - Dielectric volume: 750 l
- - Standard spool size: 25 kg
- - Awt (automatic wire threading): yes
- - Standard wire guides: 0,25 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
