BOY - XS 161DE-INJ-BOY-2024-00002

Name: BOY XS 161
Brand: BOY
SKU: DE-INJ-BOY-2024-00002
Price: 21500 EUR
Availability: InStock

21,500 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used BOY XS 161 For Sale | gindumac.com

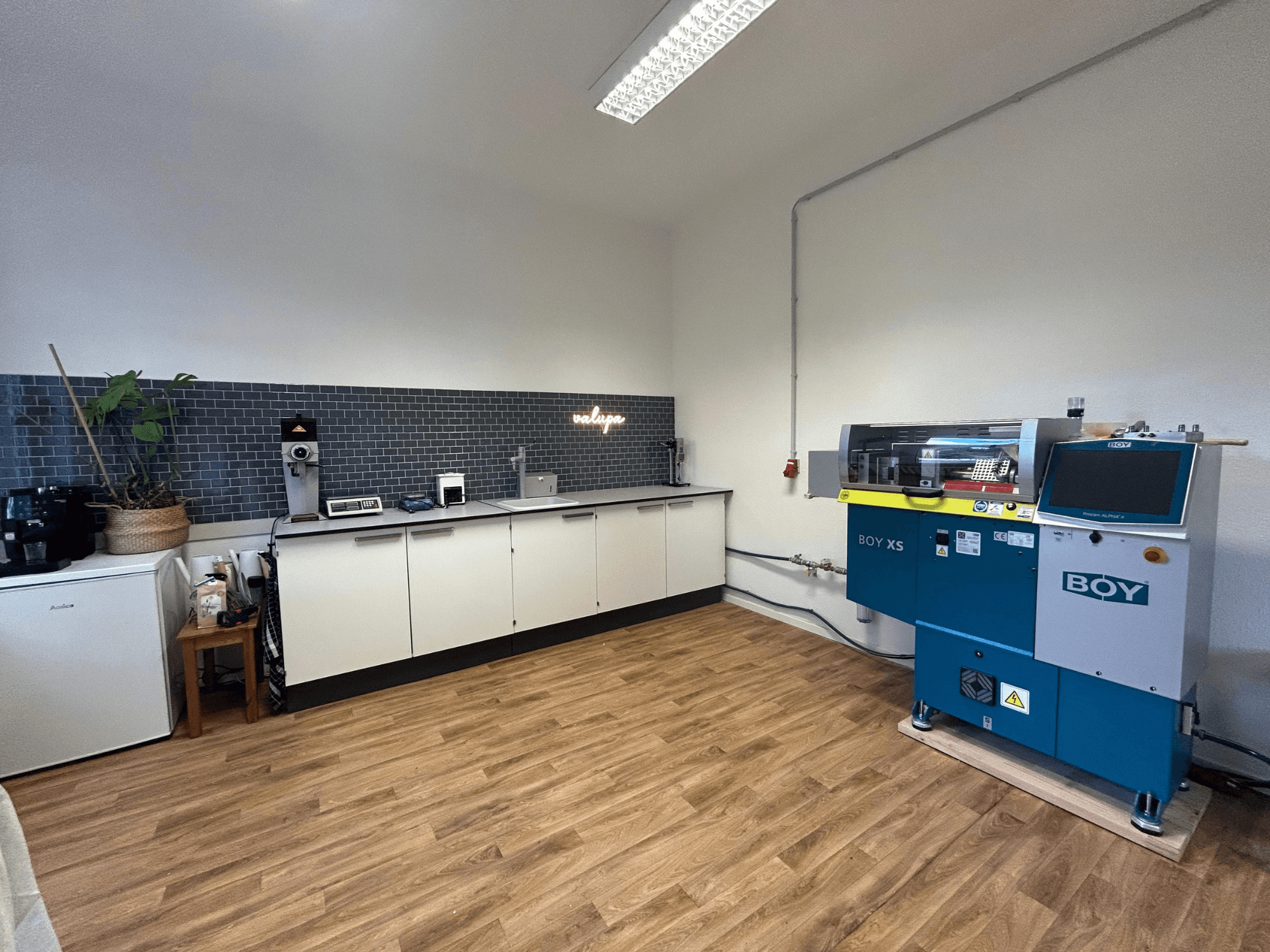

Hydraulic injection moulding machine manufactured in 2024. This BOY XS 161 features a clamping force of 100 kN and a maximum injection pressure of 2298 bar. It includes a 18 mm screw diameter and a theoretical shot volume of 6.1 cm³. If you are looking to get high-quality injection moulding capabilities, consider the BOY XS 161 machine we have for sale. Contact us for further details.

Overview

brand: BOY
year: 2024
MODEL: XS 161
production hours: 8
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - BOY XS 161

Dimensions

Machine Height: 1692 mm
Machine Length: 1485 mm
Machine Weight: 450 kg
Machine Width: 526 mm

Technical Specification

Clamping Force: 100 kN
Screw Diameter: 18 mm

Additional Information

Control system: Procan ALPHA 4, 15" multi-touch HMI
Injection pressure: max. 2298 bar
Theoretical shot volume: 6.1 cm3
Distance between tie bars: 160 mm (205 mm diagonal)
Max. daylight between platen: 250 mm
Adjustable opening stroke: 150 mm
Min. mold height: 100 mm (optional 50 mm)
Hydraulic system pressure: 300 bar
Oil tank capacity: 28 liters
Installed total power: 6.1 kW
Electrical supply: 400 V 3~ N, 50/60 Hz, 12.4 A
min. machine height: 1380mm
max. machine height: 1692 mm
Footprint: 0.78 m2
Safety guarding: Fully enclosed clamping zone with clear polycarbonate sliding safety gate and electrical interlock
Peripheral interfaces: Pneumatic and cooling water connectors on the non-operator side
Status indicators: 3-tier LED signal tower (Red/Yellow/Green)

Additional equipment (accessories)

3-liter gravity material hopper
Red 16A CEE power plug
Heavy-duty wooden transport/leveling base

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
