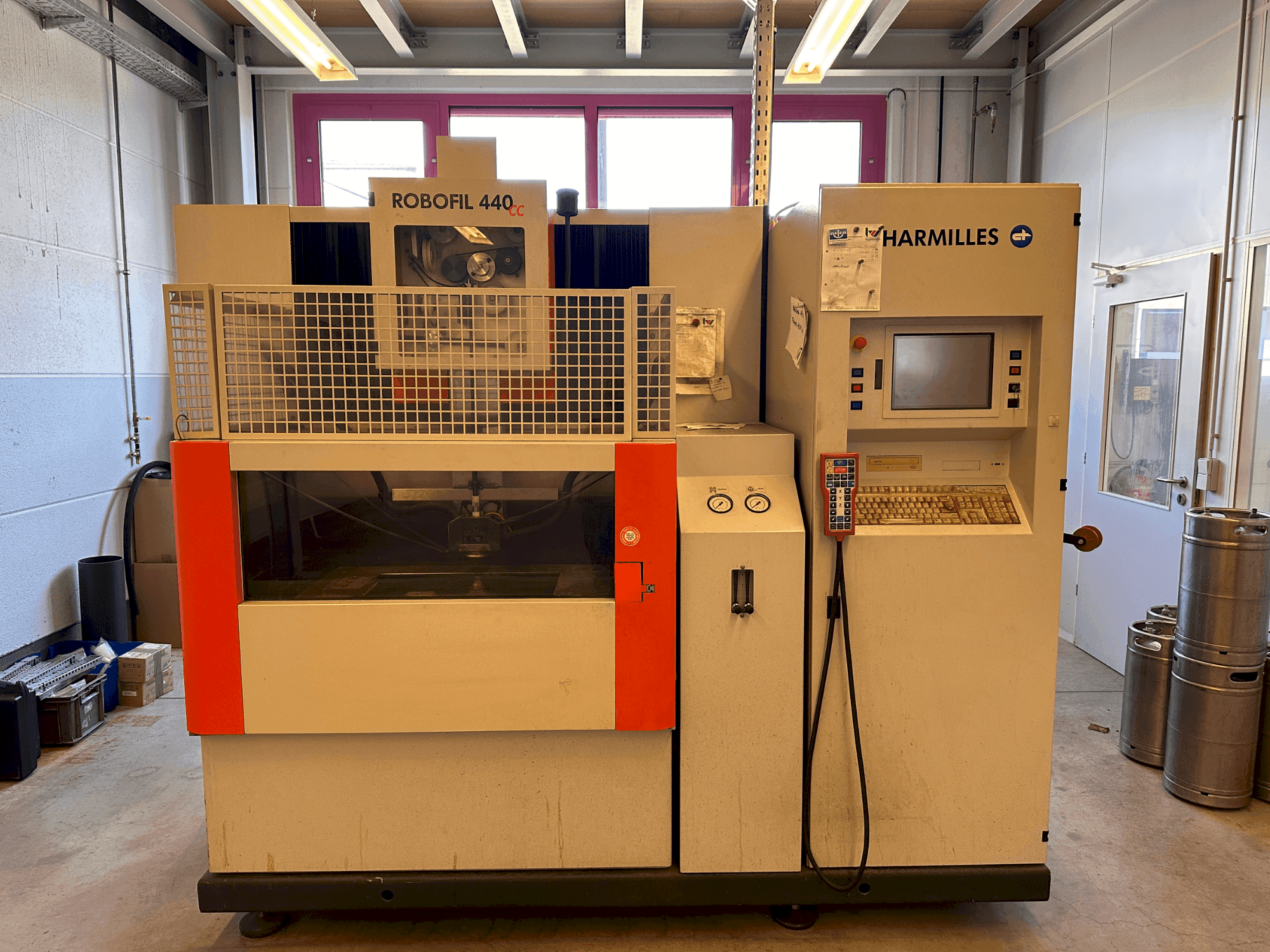

Front view of CHARMILLES Robofil 440 CC  machine

CHARMILLES - Robofil 440 CCDE-EDM-CHA-2007-00001

35,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis CHARMILLES Robofil 440 CC was manufactured in 2007 and features a robust design with a total system weight of 4450 kg when filled with dielectric. It can handle workpieces up to 1500 kg, with maximum dimensions of 1200 x 700 x 400 mm. Ideal for precision wire EDM processes, this machine offers a comprehensive control system with a TFT 12" screen. If you are looking to get high-quality EDM capabilities consider the CHARMILLES Robofil 440 CC machine we have for sale. Contact us for more information.

Overview

  • brand: CHARMILLES
  • year: 2007
  • MODEL: Robofil 440 CC
  • application type: EDM
  • Location: Germany
  • machine type: Wire EDM Machine
  • availability: Immediately

Technical Information - CHARMILLES Robofil 440 CC

General Data

  • Measurements width: 2810 mm
  • Measurements depth: 2600 mm
  • Measurements height: 2080 mm
  • Machine weight: 4450 kg

Main drive

  • Number of axis: 3

Movement

  • X-AXIS Movement: 550 mm
  • Y-AXIS Movement: 350 mm
  • Z-AXIS Movement: 400 mm

Workpiece

  • Workpiece x: 1200 mm
  • Workpiece y: 400 mm
  • Workpiece z: 700 mm
  • Workpiece weight: 1500 kg

Injection Unit

  • Injection pressure: 2/4/8/13 bar

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Total dielectric volume: 1200 l
      • - Min. /max. Dielectric thickness: 0/435 mm
      • - Standard wire guides: 0. 25 mm
      • - Three-phase input voltage: 400 v
      • - Mains frequency (2 versions): 50 or 60 hz
      • - Power factor: 0. 8
      • - Total installed power: 10 kva
      • - Permissible fluctuations: ±10%
      • - Permissible micro-interruptions: 4 ms
      • - Compressed air supply: 6-7 bar

    Extra information

    • - Controller Numerical control TFT 12"/ Dimensions of the entire system (WxDxH) mm 2600x2810x2240/ Total weight of the system without dielectric kg 3300/ Total weight of the system with dielectric kg 4450/ Working area/ Max. workpiece dimensions mm 1200x700x400 Max. workpiece weight kg 1500/ Min./max. Dielectric thickness mm 0/200/ Compressed air supply/ Pressure bar 6…7 bar/ Minimum flow rate l/min 150/ Axes/ Travel X, Y, Z mm 550x350x400/ Travel U, V mm 550/350/ Taper angle / height °/mm ±30/400/ Measurement resolution X, Y, U, V, Z µm 0.05/ Movement speed of the axes mm/min 0…3000/ Collision protection for the axes X, Y, U, V, Z/ Dielectric/ Type Deionized water/ Total dielectric volume L 1200/ Filter cartridges 4/ Deionization bottles 1/ Total deionization resin volume L 20/ Electrode / Wire/ Standard wire guides mm Φ 0.25/ Programmable wire tensile force daN 0.3…2.5/ Programmable wire unwinding speed m/min 0.5…15/ Automatic wire threading mm Φ 0.1/0.2/0.25/0.3/ Automatic wire rethreading mm Φ 0.2/0.25/0.3/ Minimum pilot hole diameter for automatic threading/ mm Φ 0.8/ Maximum height for automatic threading with 0.25 mm wire/mm 220/ Permissible wire spool weights and types kg according to DIN standards: 1.6 (K100) – 8(K160)/ according to JIS standards: 3(P3) – 5(P5)/ Electrical cabinet/ Three-phase input voltage V 400/ Mains frequency (2 versions) Hz 50 or 60/ Permissible fluctuations ±10%/ Total installed power: 10 kVA/ Permissible micro-interruptions in ms: 13.5 A/ Power factor: 0.8/ Display: 12" TFT/ Available standard languages: French, English, German,Italian, Spanish/ User memory capacity: 6 GB/ Operating system: Windows XP SP2/ CD-ROM/ Ethernet port, USB/ Parallel port/ Remote control/ Alphanumeric keyboard: PC/ Permissible ambient conditions/ Temperature for optimal accuracy: 20±1°C/ Temperature for optimal equipment: 15…30°C/ Permissible relative humidity: 40…80%/ Max. noise emission of the machine: 76 dB(A)/ Thermal stabilization time: 3 h/ Electrical equipment protection rating: IP 43
