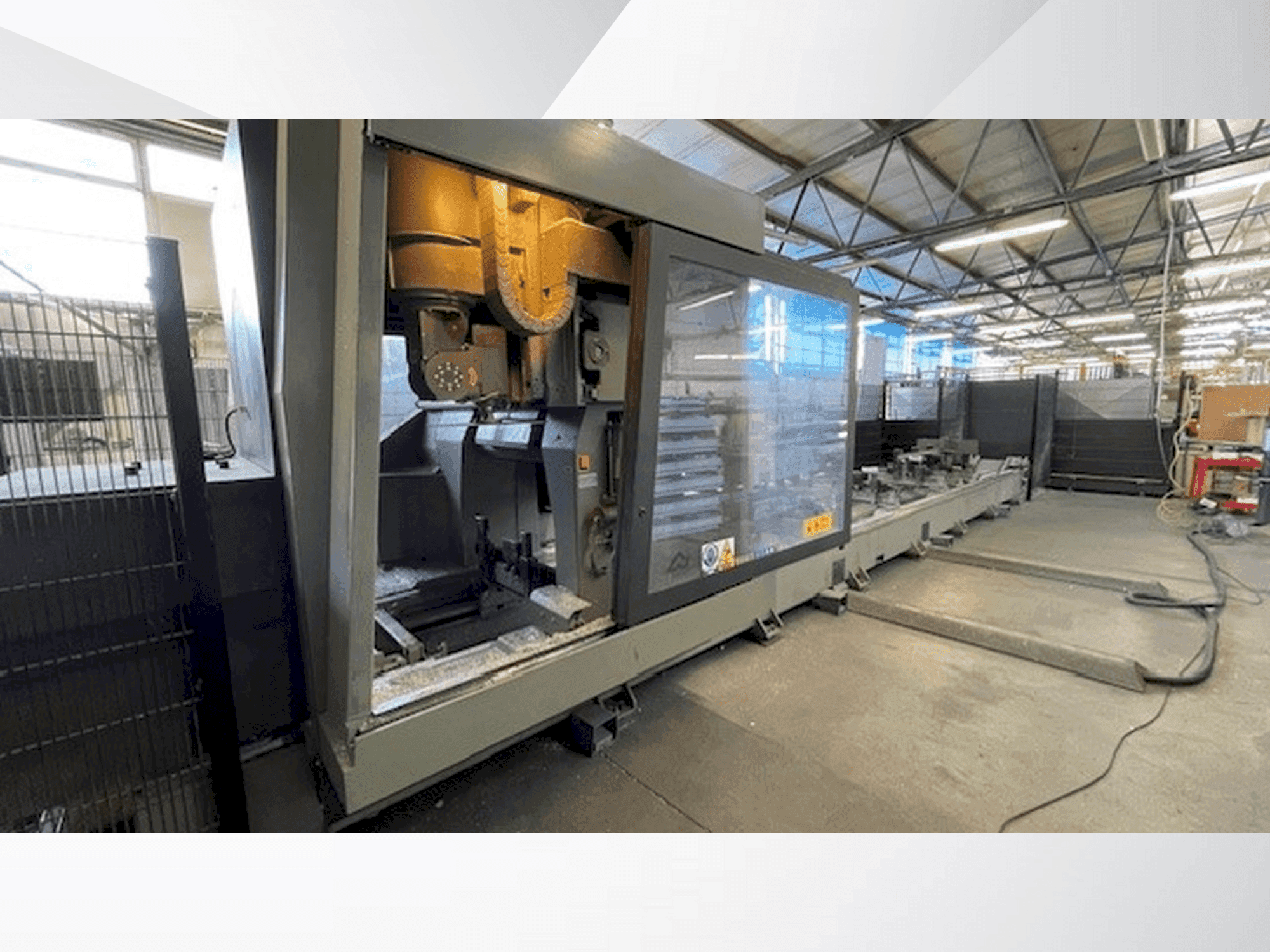

This 5-axis Emmegi SATELLITE XT 7800 was manufactured in 2019. A high-performance CNC machining center, ideal for aluminium profiles used in windows, façades, and more. Features include a 7,800 mm X-axis travel, spindle speed up to 24,000 rpm, and a tool magazine with 16 slots. Fully operational with excellent technical and visual condition. If you are looking to get high-quality milling capabilities consider the Emmegi SATELLITE XT 7800 machine we have for sale. Contact us for more information.
Overview
- brand: Emmegi
- year: 2019
- MODEL: SATELLITE XT 7800
- production hours: 22541
- application type: Milling
- Location: Poland
- machine type: Universal Machining Centre
Technical Information - Emmegi SATELLITE XT 7800
Dimensions
- Machine Weight: 14500 kg
Movement
- X-axis Travel: 7800 mm
- Y-axis Travel: 1000 mm
- Z-axis Travel: 400 mm
Additional Information
Additional equipment
- Full set of original pneumatic clamps (8 pcs) / Automatic tool changer / Minimum quantity lubrication system (MQL) / Integrated chip extraction points
Machine Benefits
Technical Machine Benefits
- Spindle power: 15 kw / spindle speed: 0 – 24000 rpm / spindle torque: 12 nm/ spindle type: hsk-63f
- Tool magazine capacity: 16 slots (expandable up to 32)
- Max. Saw blade diameter: 500 mm
- Working modes: single piece, static pendular mode, dynamic pendular mode / max. Machining length: 7800 mm / max. Profile dimension (saw cutting): up to 360 × 290 mm / power supply: 400 v / 3-phase / 50 hz / air pressure: 6 – 7 bar / complete documentation and user manuals included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
