Huber&Grimme HG3000T
Huber&Grimme - HG3000T
1997
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Huber&Grimme HG3000T Milling Machine

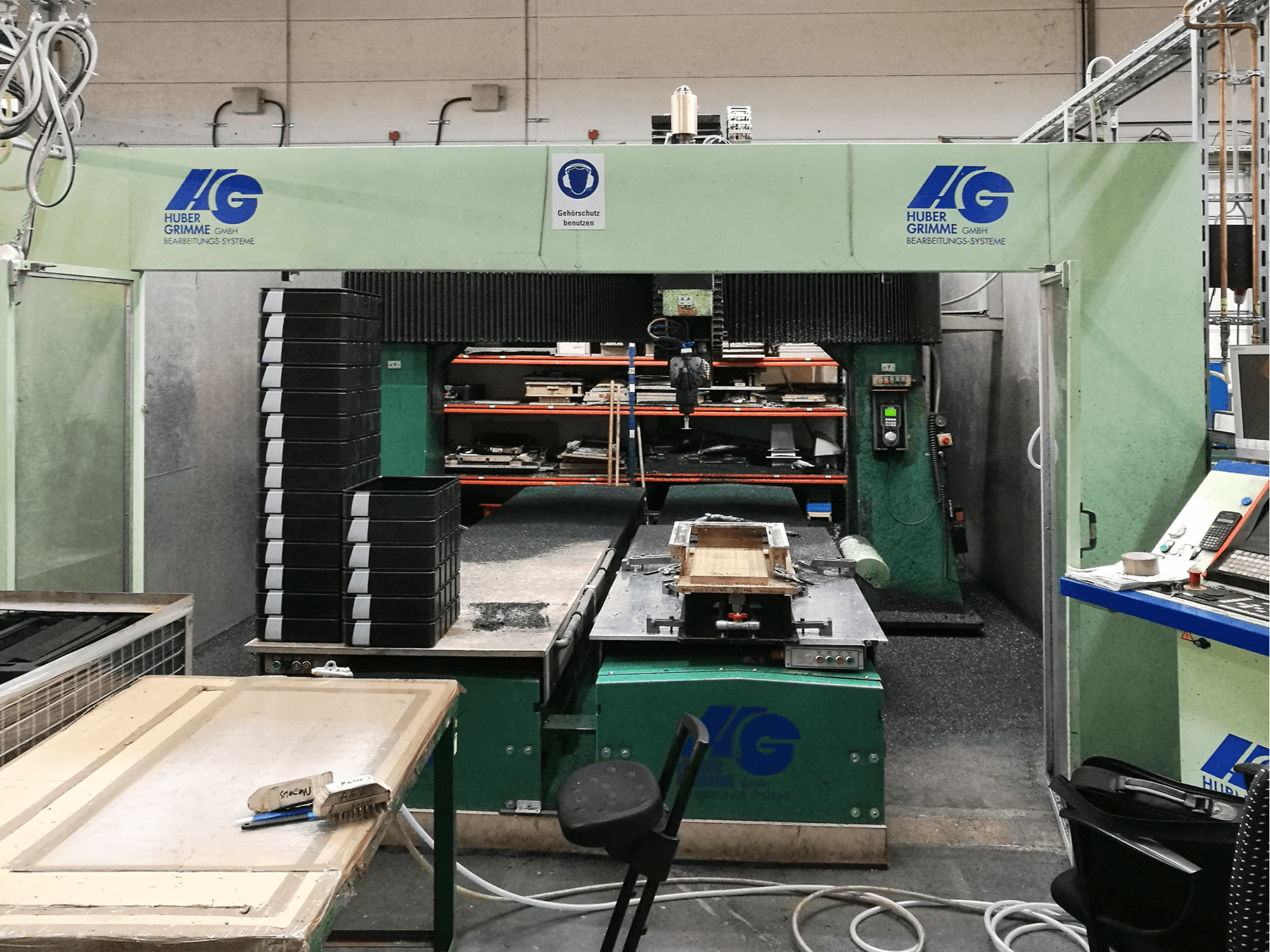

This Huber&Grimme HG3000T Milling Machine was manufactured in 1997 in Germany and has a working record of 27905 production hours ever since. Operated through a NUM 1062W control unit, this solid-built machine stands out for its range of movements and its 2 working tables. In the past, this Huber&Grimme has handled mostly plastic of up to 4 mm of thickness. Several pieces of additional equipment are included, such as: a vacuum pump for tables, a housing, a spindle cooling unit and a 6x tool holder.
Overview
- brand: Huber&Grimme
- year: 1997
- MODEL: HG3000T
- production hours: 27905
- application type: Milling
- Location: Germany
- machine type: Milling Machine
- availability: Sold
- control unit brand: NUM
- GINDUMAC ID: DE-MIL-HUB-1997-00001
Technical Information
General Data
- Measurements width: 5500 mm
- Measurements depth: 6000 mm
- Measurements height: 3300 mm
- Machine weight: 5000 kg
Control Unit
- Brand: NUM
- Model: 1062W
- Remote control: Yes
Main drive
- Number of spindles: 1
- Spindle speed range: 40000 1/min
- Spindle motor power: 2.5-6.0 kW
- Tool taper: WK19
Movement
- X-AXIS Movement: 3000 mm
- X-AXIS Backlash: 0.05
- Y-AXIS Movement: 2620 mm
- Y-AXIS Backlash: 0.05
- Z-AXIS Movement: 720 mm
- A-AXIS Movement: 360º MM
- B-AXIS Movement: 108º MM
Table
- Outer length: 3000 mm
- Outer width: 1500 mm
Tools
- Slots in storage: 2 x 6
Media
- Main electronic connection: 380 V / 50 Hz
Additional Equipment
- - Vacuum pump for tables
- - Housing for machine
- - Spindle cooling unit
- - 6x Tool holder
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
