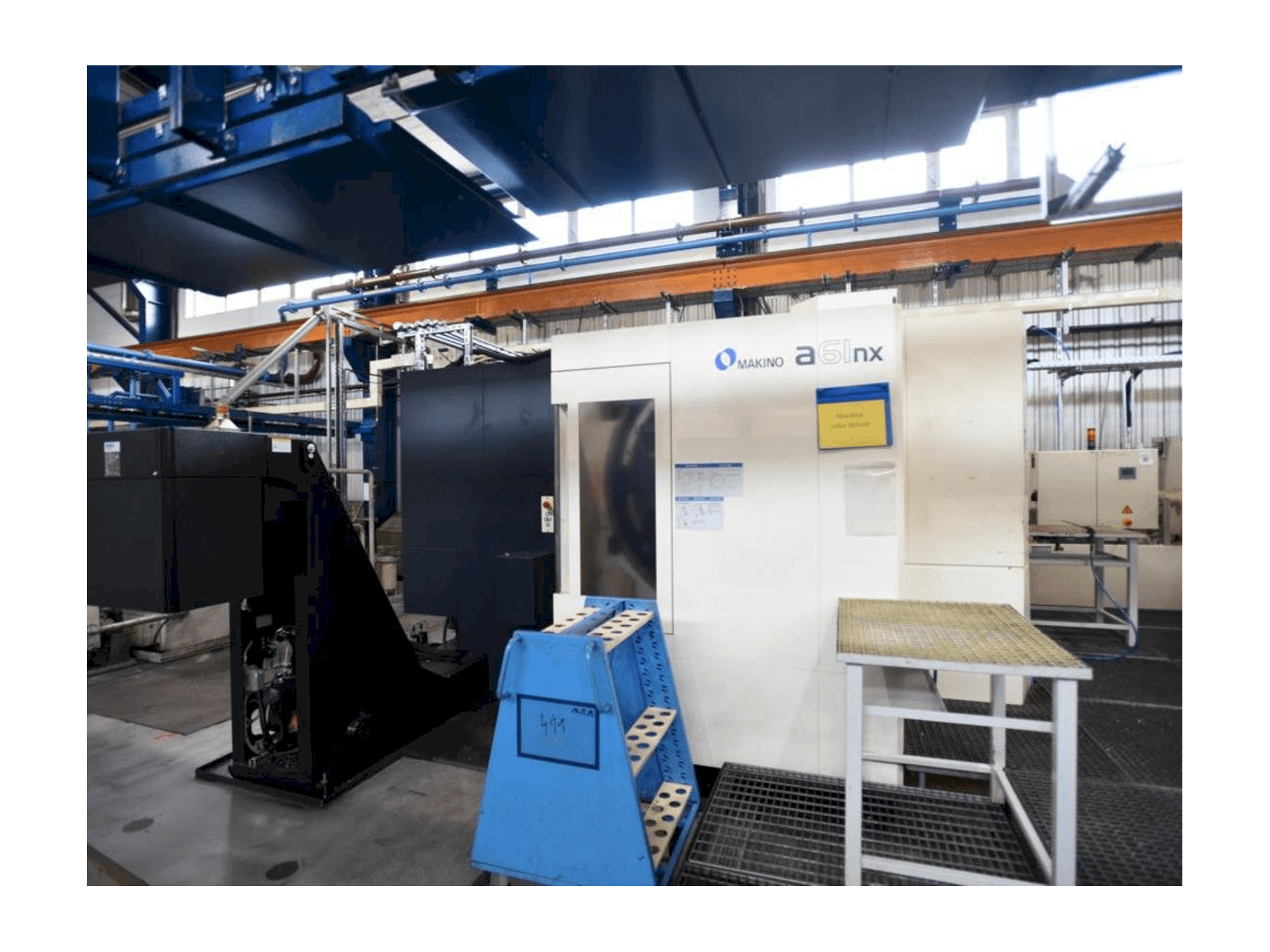

Front view of Makino a61nx Pro 6  machine

Makino a61nx Pro 6

Makino - a61nx Pro 6

2019

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Makino a61nx Pro 6 Horizontal Machine Center was built in Germany in the year 2019. It is equipped with a Makino Professional 6 control unit. The machine has a spindle speed of 14000 rpm.

Overview

  • brand: Makino
  • year: 2019
  • MODEL: a61nx Pro 6
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (horizontal)
  • availability: Sold
  • control unit brand: Makino
  • GINDUMAC ID: DE-MIL-MAK-2019-00002

Technical Information

Control Unit

  • Brand: Makino
  • Model: PROFESSIONAL 6

Main drive

  • Spindle speed range: 14000 1/MIN

Tools

  • Slots in storage: 60

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Torque 303 nm
      • - Direct thread cutting
      • - Nc rotary table (dd motor)
      • - Automatic central lubrication
      • - Data center 1gb
      • - Door interlock of the pallet changer
      • - Pallet changer
      • - Safety cover of the pallet changer
      • - Automatic program start after pallet change two (2) pallets with tapping grid
      • - Eight (8) adjustable flushing nozzles on the spindle
    • Qualitative Machine Benefits:
      • - Coolant flushing in the working area of the machine
      • - Terrace flushing
      • - Coolant supply centrally through work spindle (15bar) coolant device with scraper belt conveyor lsw880
      • - Second filtration for coolant through the spindle (cyclone filter) chip and splash protection as full enclosure of the working chamber
      • - Air dryer
      • - Visual tool breakage control bts, signal lamp 3-color , helix interpolation, part program memory 2gb
      • - 1000 storable programs
      • - External spindle orientation
      • - Tool radius compensation type c
      • - Retracting from threading

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
