➤ Used Matec 30 HV For Sale | gindumac.com

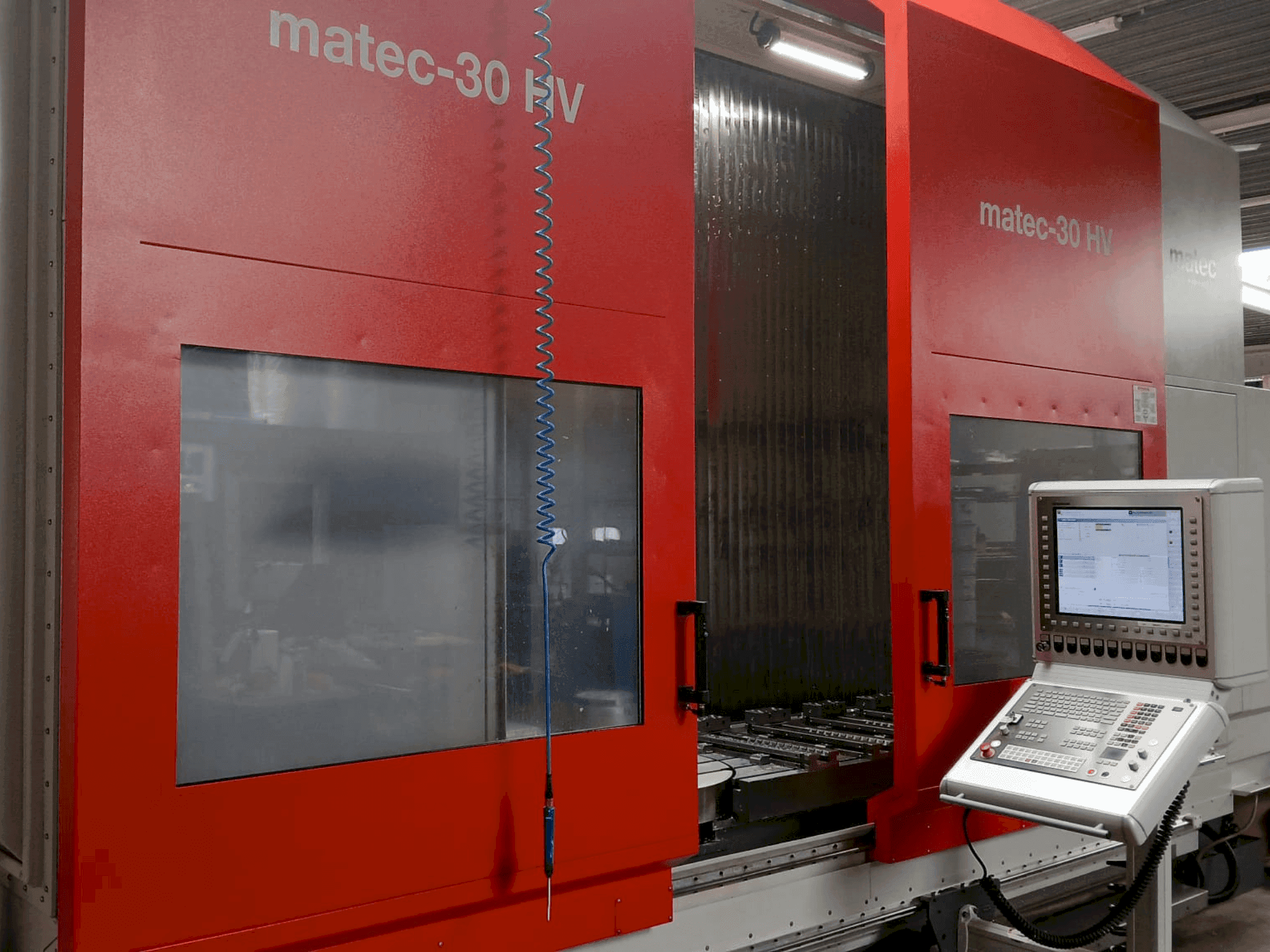

This 5-axis Matec 30 HV universal machining center was manufactured in 2016. It features a 60-position tool magazine, 15,000 rpm spindle, and Heidenhain TNC 640 control. Additional highlights include a rotary table, spindle cooler, and an extensive cooling system with a 510-liter tank. If you are looking to get high-quality milling capabilities, consider the Matec 30 HV machine we have for sale. Contact us for more information about this machine.

Overview

brand: Matec
year: 2016
MODEL: 30 HV
production hours: 18759
application type: Milling
Location: Netherlands
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Matec 30 HV

Control Unit

Brand: HEIDENHAIN
Model: TNC 640

Main drive

Spindle speed range: 15000 1/MIN
Tool taper: HSK-63
Number of axis: 5

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 1100 mm

Additional Information

Rotary table: Ø800; high-speed rotary table for turning
Tool magazine: 60 positions
Feedback: Glass scales on all axes
Control: Heidenhain TNC 640
Coolant system:
- Through‑spindle cooling adjustable to 20 or 40 bar (M‑code controllable)
- External cooling adjustable low/high pressure (M‑code controllable)
- 510‑liter coolant tank reservoir
- Paper belt filter
Machine features:
- Side door for robot loading or for long parts to protrude
- Internal chip rinsing system

Additional equipment

Chip belt conveyor
Renishaw 3D measuring system (probing)
Renishaw TS27R tool length/diameter measurement and breakage monitoring
Spool gun
Extensive post‑processor for EdgeCam
Safety fencing all around (behind the machine)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
