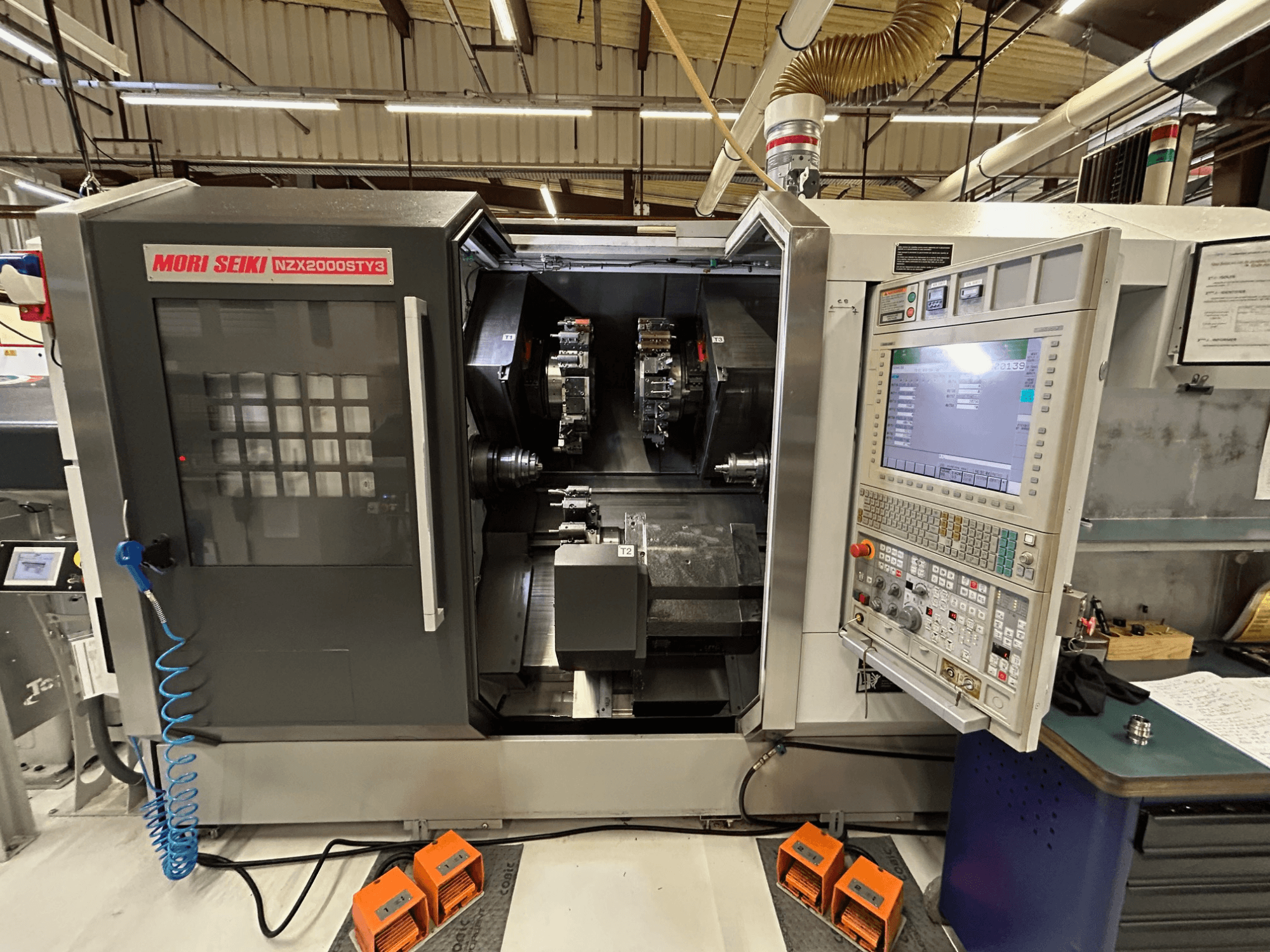

This 12-axis MORI SEIKI NZ2000 ST3Y3 was manufactured in 2011. It features a maximum machining diameter of 200 mm and a maximum machining length of 260 mm. The machine is equipped with twin spindles and three turrets, providing efficient multi-spindle turning capabilities. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI NZ2000 ST3Y3 multi-spindle turning machine we have for sale. Contact us for further details.
Overview
- brand: MORI SEIKI
- year: 2011
- MODEL: NZ2000 ST3Y3
- application type: Turning
- Location: France
- machine type: Multi-Spindle Turning Machine
Technical Information - MORI SEIKI NZ2000 ST3Y3
Movement
- B-axis Max: 820°
- Number of Axes: 12
- X-axis Travel: 210 mm
- Y-axis Travel: 110 mm
Technical Specification
- Counter Spindle: Yes
- Max. Bar Diameter: 65 mm
- Spindle Power: 25 kW
- Spindle Speed: 6000 RPM
Additional Information
Working capacity:
Max machining diameter: 200 mm
Max machining length: 260 mm
Axis travel:
Z-axis: 300 / 810 mm
B-axis (two spindles): 920 mm
Spindles:
Spindle power: 22 / 25 kW
Counter spindle: Yes
Feed rates:
Rapid traverse X / Z: 30 / 50 m/min
Driven tools:
Driven-tool power: 5.5 / 7.5 kW
Additional equipment
TOP AUTOMAZIONI bar feeder (2018)
Chip conveyor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
