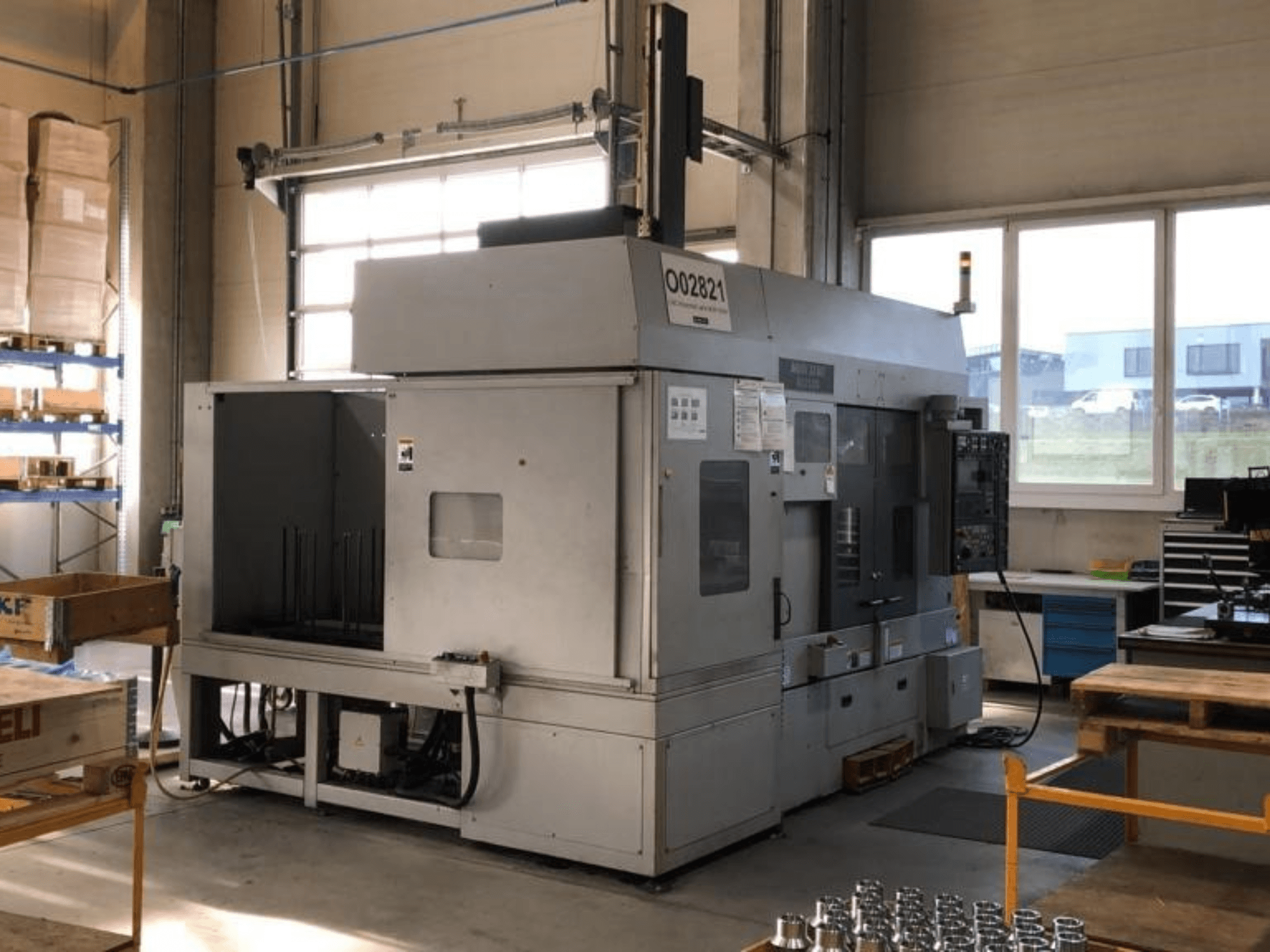

This 4-axis MORI SEIKI RL2500 was manufactured in 2003. It features a maximum turning diameter of 400 mm and includes two turrets with 12 stations each, providing efficient machining capabilities. The machine is equipped with a Mori Seiki MAPPS MSX-501 control and has a spindle speed of 3500 rpm. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI RL2500 multi-spindle turning machine we have for sale. Contact us for further details.
Overview
- brand: MORI SEIKI
- year: 2003
- MODEL: RL2500
- production hours: 7375
- application type: Turning
- Location: Austria
- machine type: Multi-Spindle Turning Machine
Technical Information - MORI SEIKI RL2500
Dimensions
- Machine Height: 2100 mm
- Machine Length: 5000 mm
- Machine Weight: 8000 kg
- Machine Width: 2300 mm
Movement
- Number of Axes: 4
- X-axis Travel: 200 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Max. Bar Diameter: 71 mm
- Spindle Power: 22 kW
- Spindle Speed: 3500 RPM
Additional Information
Spindles: 2
Turrets: 2 (12 stations each)
Max turning diameter: 400 mm
Z travel: 265 mm (per turret)
Main spindle cutting time: 7,375 h
Second spindle cutting time: 9,801 h
Additional equipment
Chip conveyor
Transformer
Robotic loading system
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
