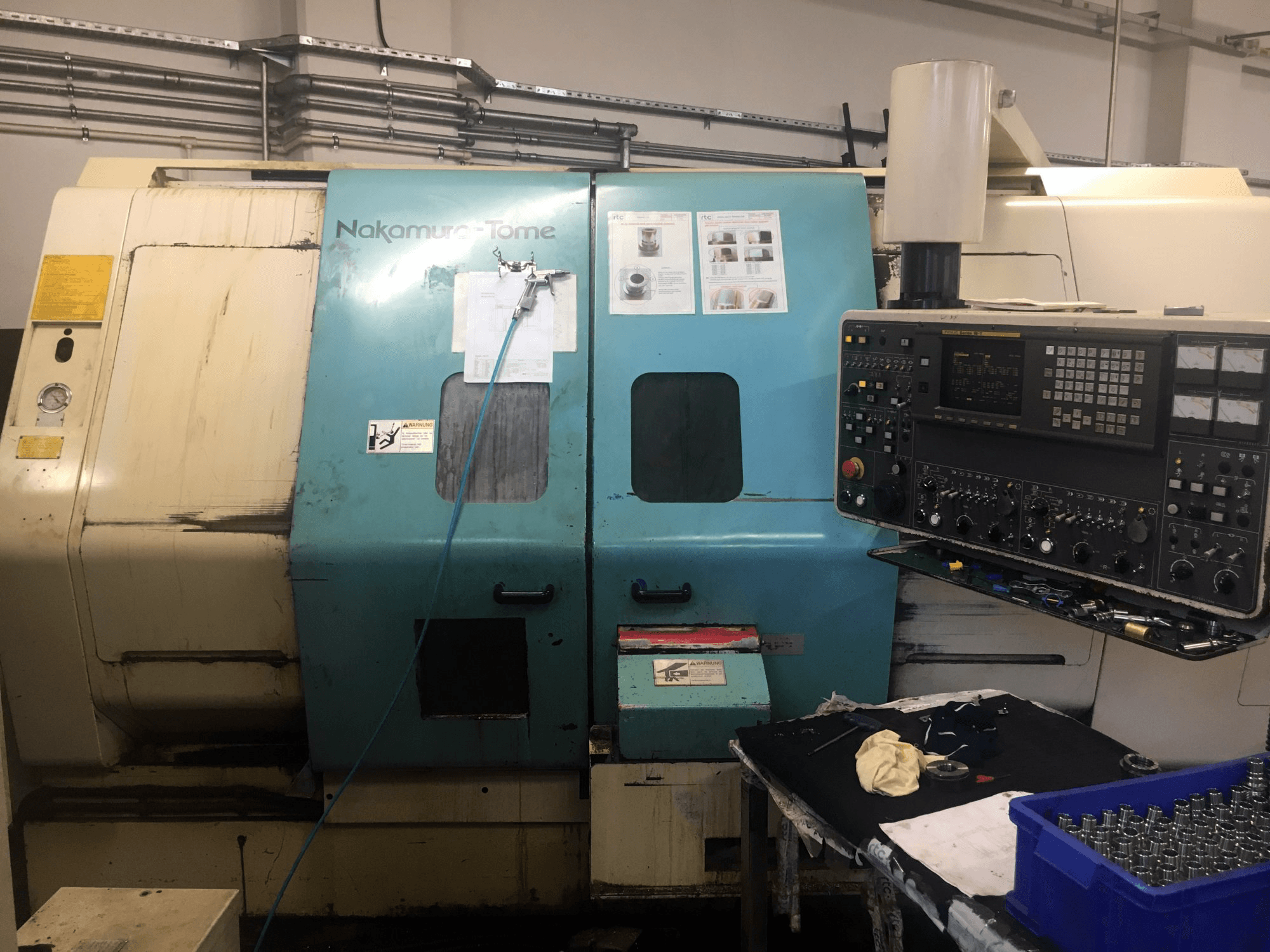

Front view of NAKAMURA-TOME TW-20 MMY Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

NAKAMURA-TOME TW-20 MMY

Photo Gallery

NAKAMURA-TOME - TW-20 MMYTR-TUR-NAK-1997-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
NAKAMURA-TOME TW-20 MMY Lathe

This NAKAMURA-TOME TW-20 MMY Lathe was built in Japan in 1997 and has a working record of 35200 production hours. Equipped with a FANUC Series 18-T Control unit, this machine was working with steel, aluminum and copper bars with around 51 mm of diameter during the past. The model stands out due to its live tooling capability and the automatic workpiece transfer from the main to the secondary spindle. Beside a Kamsan bar loader, two live tools are included in the delivery.

Overview

brand: NAKAMURA-TOME
year: 1997
MODEL: TW-20 MMY
production hours: 35200
application type: Turning
Location: Turkey
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - NAKAMURA-TOME TW-20 MMY

General Data

Measurements width: 3645 mm
Measurements depth: 2179 mm
Measurements height: 2200 mm
Machine weight: 6500 kg

Control Unit

Model: Series 18-T
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 50-5000 1/min
Stroke: 195 mm / 265 mm / 780 mm

Movement

X-AXIS Movement: 195 mm
Y-AXIS Movement: 40 mm
Z-AXIS Movement: 265 mm

Workpiece

Workpiece drm: 51 mm

Turret

Number of turrets: 2

Tools

Number of stations: 12
Max tool diameter: 25 mm

Media

Main electronic connection: 50 Hz / 3 P
Power consumption: 77 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
