POSmill - H800UDE-MIL-POS-2018-00005

Name: POSmill H800U
Brand: POSmill
SKU: DE-MIL-POS-2018-00005
Availability: InStock

0 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used POSmill H800U For Sale | gindumac.com

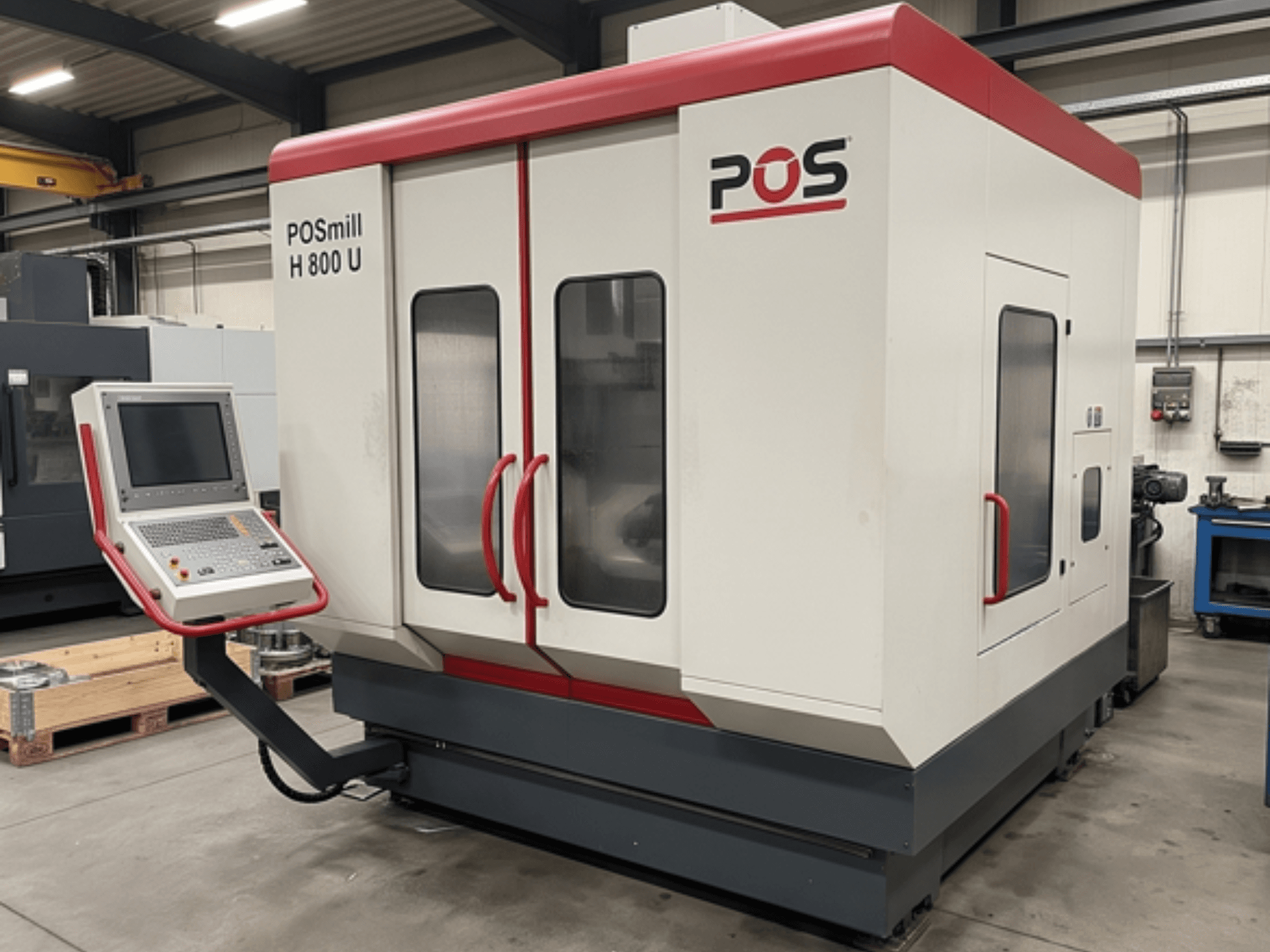

This 5-axis POSmill H800U was manufactured in 2018. It features an impressive X-axis travel of 670 mm, Y-axis travel of 830 mm, and Z-axis travel of 600 mm. The machine includes a robust table diameter of 800 mm and a high spindle speed of 18,000 rpm. If you are looking to get high-quality machining capabilities, consider the POSmill H800U vertical machining centre we have for sale. Contact us for further details.

Overview

brand: POSmill
year: 2018
MODEL: H800U
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - POSmill H800U

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530

Movement

Number of Axes: 5
X-axis Travel: 670 mm
Y-axis Travel: 830 mm
Z-axis Travel: 600 mm

Technical Specification

Spindle Speed: 18000 RPM
Taper Size: HSK 63
Through-spindle Coolant: Yes

Additional Information

- Swivel Range (B/A Axis): -120 to +120 degrees

- Rotary Table (C Axis): 360 degrees continuous

- Table Diameter: Kessler table 800 mm

- Tool Changer Capacity: 96-fold

- Measuring Systems: Heidenhain linear measuring system (X, Y, Z) with sealing air, Heidenhain rotary measuring system

- Internal Coolant Supply (IKZ): 20 bar with belt filter unit and coolant temperature control

- Hydraulic & Pneumatic Interfaces: 3-way hydraulic connection & 1-way air connection in table center, hydraulic unit controlled via M-function

- Spindle/Axis Cooling: Regulated spindle cooler, active air-air control cabinet cooler, controlled oil cooling for 4th and 5th axis

- Additional Features:

POS Kinematic module with reference sphere

POSkontur contour protection

POS DCM collision module

external hinged-belt chip conveyor

chip flushing device

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
