SPINNER - U 1530DE-MIL-SPI-2020-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- ➤ Used SPINNER U 1530 For Sale | gindumac.com

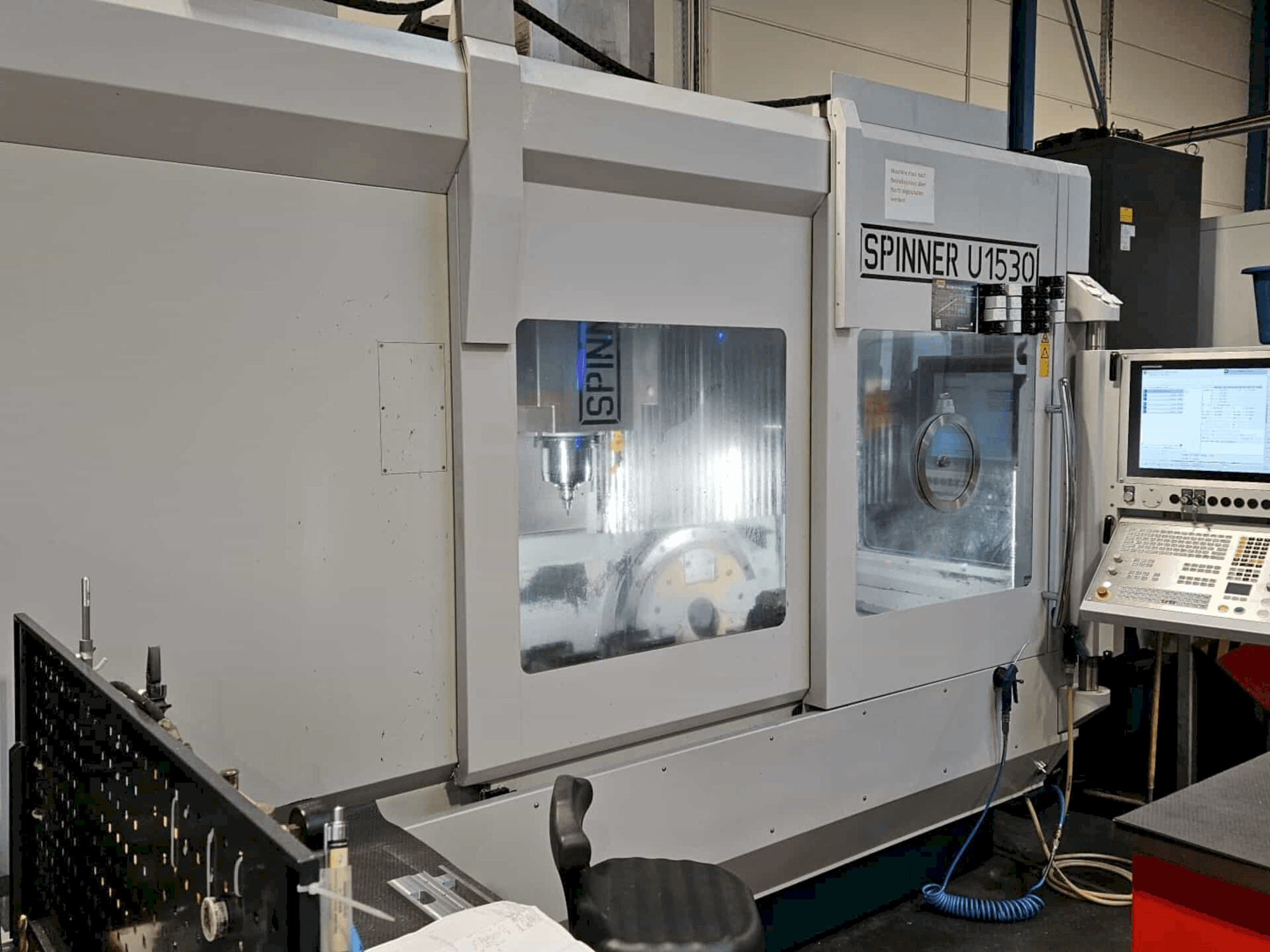

This 5-axis SPINNER U 1530 vertical machining center was manufactured in 2020. It offers advanced capabilities for complex and precise machining tasks. Consider the opportunity to buy this SPINNER U 1530 vertical machining center. Contact us for more information.
Overview
- brand: SPINNER
- year: 2020
- MODEL: U 1530
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - SPINNER U 1530
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 640
Movement
- Number of Axes: 5
- X-axis Travel: 1530 mm
- Y-axis Travel: 530 mm
- Z-axis Travel: 465 mm
Additional Information
Additional equipment
- 2-Axis Rotary Tilting Table: Diameter: 650 mm in precision design "T" / Direct measuring systems for B- and C-axes / Hydraulic brake for B-axis (tilting) and C-axis (rotary) for increased rigidity during static roughing operations
- Stationary Table: Positioned on the left in the work area (U-1530)
- Tool Interface: Tool holder SK40 DIN69871 with pull stud DIN69872-A
- Tool Magazine: 122 tool stations with high-speed changer and double-arm gripper
- Fast-moving tool chain design, separated from the work area by a pneumatic flap
Machine Benefits
Technical Machine Benefits
- High-precision milling spindle: up to 12000 rpm / 22 kw / 120 nm (10% duty cycle)
- In-line spindle with direct drive (no belt)
- Automatic deactivation of spindle air seal to save energy and reduce noise during idle times
- Required leveling elements at the machine bed for alignment
- Full splash guard enclosure with work area lighting
- Direct measuring systems: integrated in x, y, and z axes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
