WFL - M 100RU-TUR-WFL-1998-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- WFL M 100

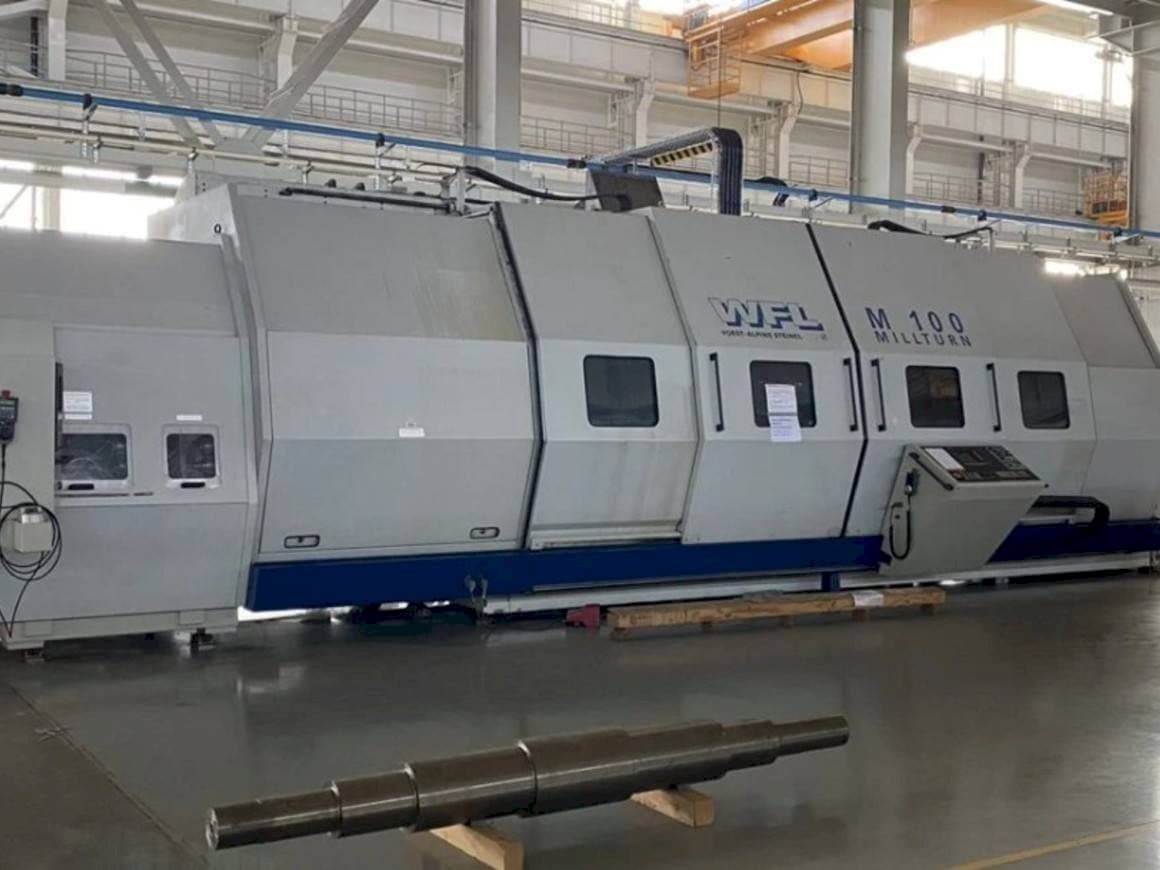

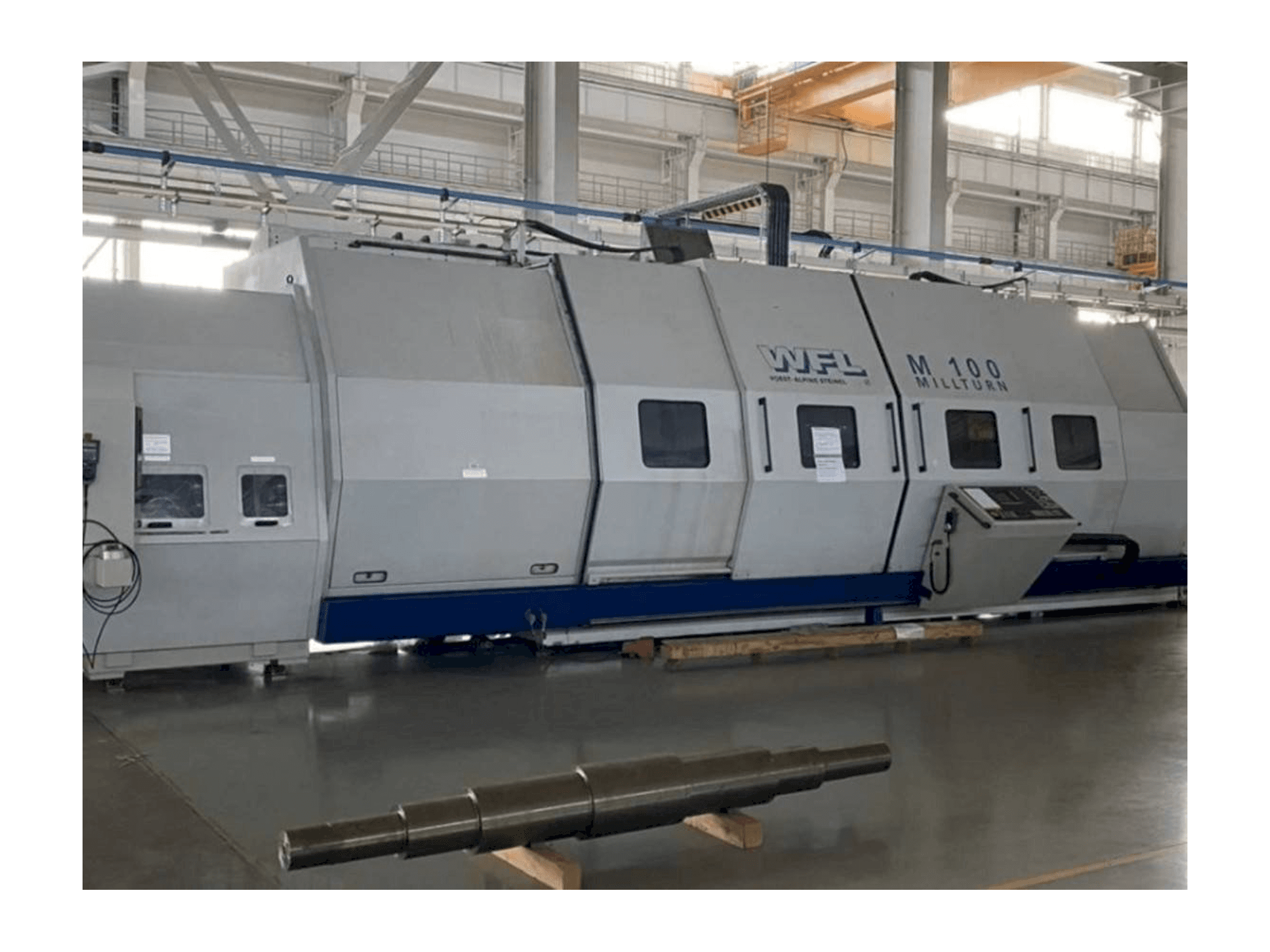

This WFL M 100 Lathe was built in 1998. This 5 axis machine is operated with a Siemens 840C control unit. It can perform with a spindle speed up to 1600 rpm. It stands out for being a Horizontal turning and milling machining center.
Overview
- brand: WFL
- year: 1998
- MODEL: M 100
- application type: Turning
- Location: Russia
- machine type: Turn-Mill Centre
- control unit brand: SIEMENS
Technical Information - WFL M 100
Control Unit
- Control Brand: SIEMENS
- Control Model: 840 C
Dimensions
- Machine Weight: 35000 kg
Movement
- Number of Axes: 5
- X-axis Travel: 900 mm
- Z-axis Travel: 5370 mm
Technical Specification
- Spindle Power: 25 kW
- Spindle Speed: 1600 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Tailstock pinole stroke - 200 mm
- Rmc - 5000 mm
- The installation diameter above the upper sled is 850 mm.
- Spindle torque - 300 nm
- The rotation angle of the axis in - 200 (-110/+90) degrees
- The diameter of the spindle in the front bearing is 240 mm
- Spindle bore diameter: 165 mm
- The number of revolutions of the spindle: 10-4000 rpm
- Maximum torque - 4724 nm
- Processing diameter - 900 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
