WFL M30

Photo Gallery

WFL - M30PL-TUR-WFL-1998-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

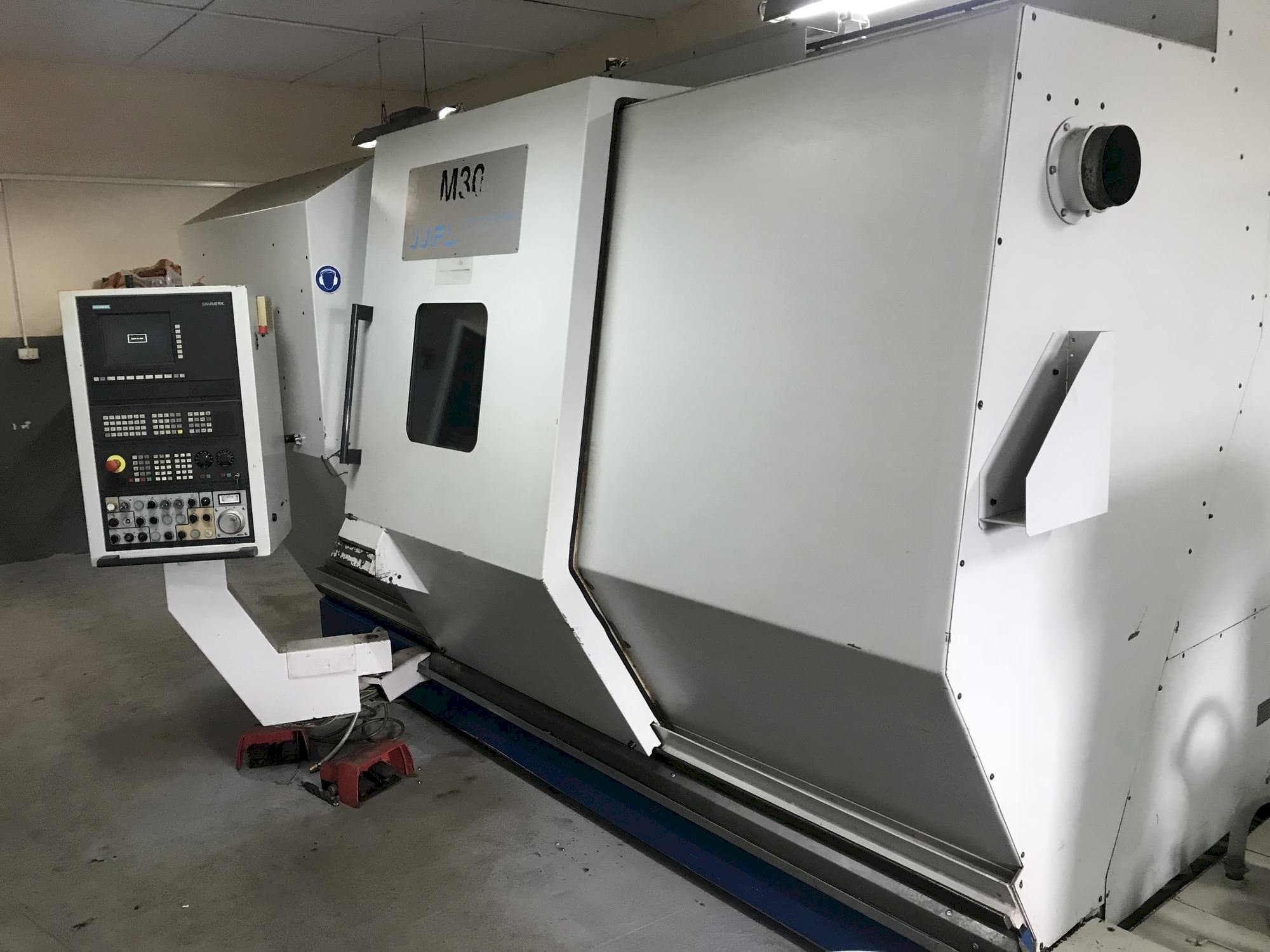

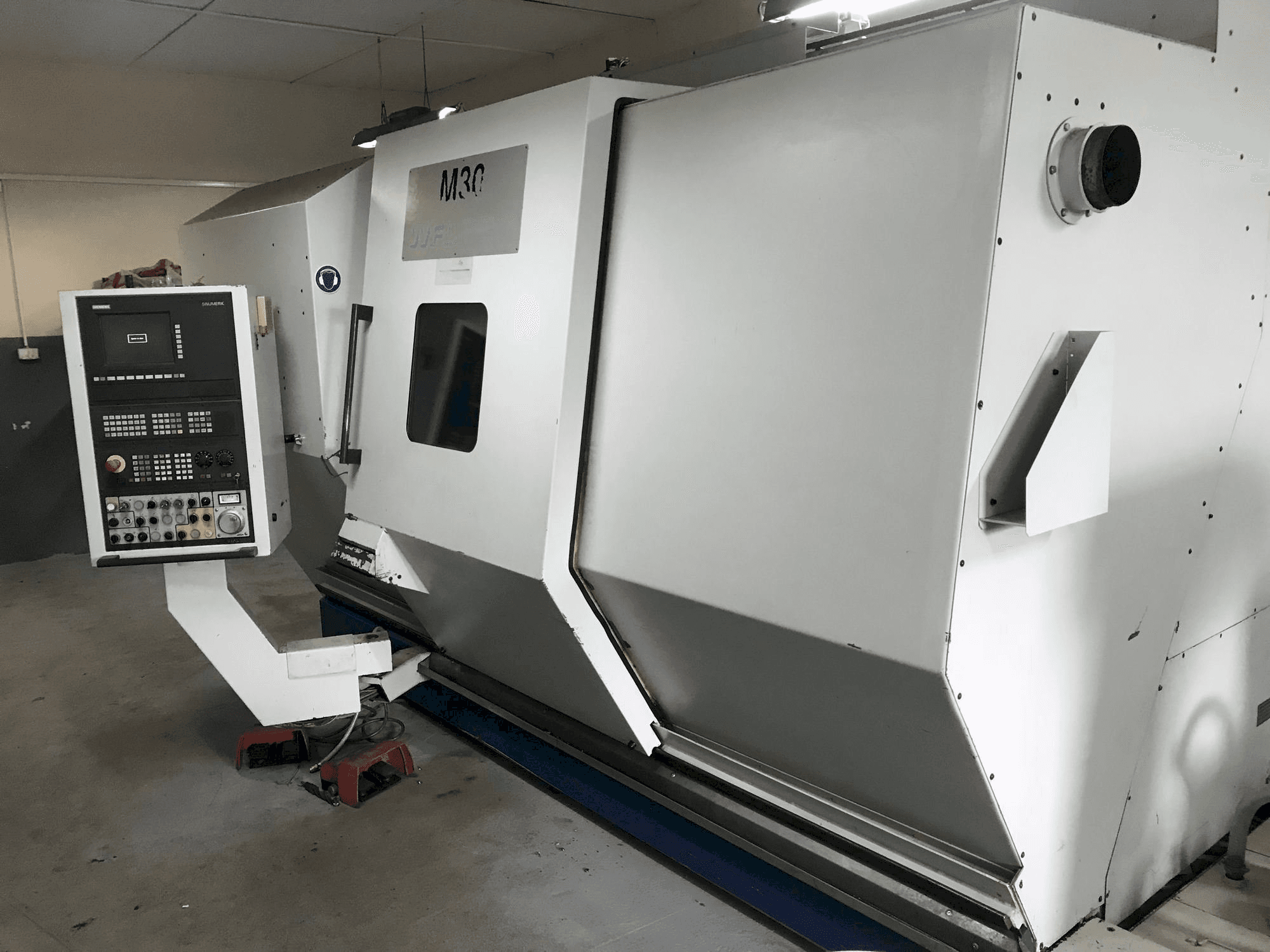

WFL M30 Lathe and milling center

This WFL M30 Lathe and milling center was built in 1998. It is operated with a Siemens 840 C control unit and can perform with a spindle speed up to 4000 rpm. It includes tailstock, tool holders, and probe. Additional spare parts.

Overview

brand: WFL
year: 1998
MODEL: M30
production hours: 14830
application type: Turning
Location: Poland
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - WFL M30

Control Unit

Control Brand: SIEMENS
Control Model: 840 C

Dimensions

Machine Depth: 4700 mm
Machine Height: 2700 mm
Machine Weight: 11000 kg

Movement

Number of Axes: 5
X-axis Travel: 600 mm
Z-axis Travel: 2000 mm

Technical Specification

Spindle Speed: 4000 RPM

Additional Information

Additional equipment

tailstock
tool holders
probe
additional spare parts

Machine Benefits

Qualitative Machine Benefits

The machine is in good working condition
Ready for test
Full documentation

Technical Machine Benefits

Turning length 1000 mm
Turning diameter 300 mm
Turning above the bed - 520 mm
Bandwidth: 225 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
