➤ Used WITTMANN Battenfeld HM 180/750H/350V For Sale

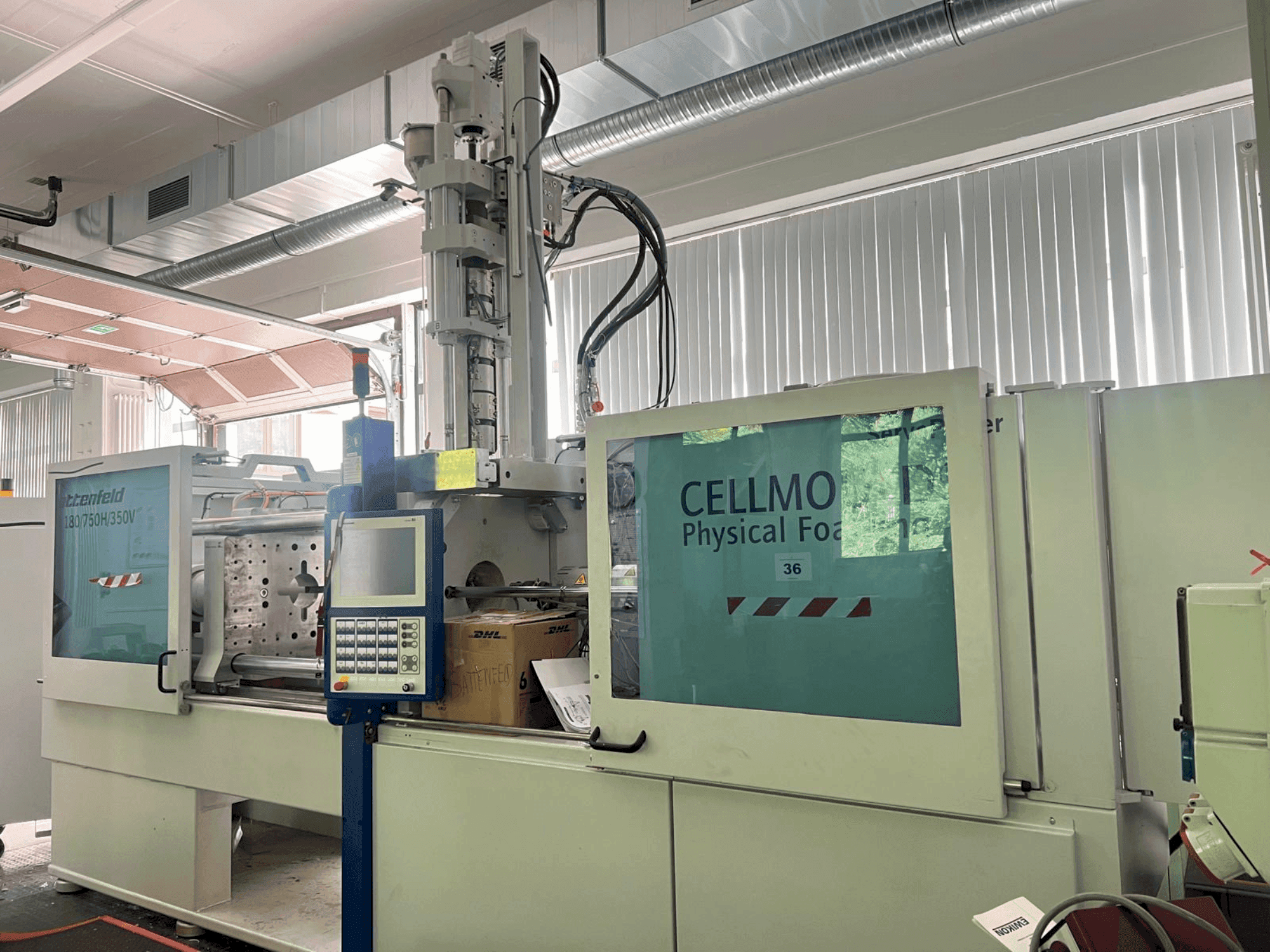

This WITTMANN Battenfeld HM 180/750H/350V was manufactured in 2016. It features a clamping force of 180 tons and a screw diameter range of 40-50 mm. Notable for its multi-component capability, it integrates horizontal and vertical injection units with a rotary table for 2K molding. The UNILOG B6 control system offers an intuitive touchscreen interface. Consider the opportunity to buy this WITTMANN Battenfeld HM 180/750H/350V hydraulic injection moulding machine. Contact us for more information about this machine.

Overview

brand: WITTMANN
year: 2016
MODEL: Battenfeld HM 180/750H/350V
production hours: 5650
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - WITTMANN Battenfeld HM 180/750H/350V

General Data

Measurements width: 3400 mm
Measurements depth: 2800 mm
Measurements height: 3900 mm
Machine weight: 8200 kg
Automatic cycles: 87601

Main drive

Distance between bars: 570 x 520 mm

Injection Unit

Screw diameter: 40-50 mm
Nozzle pressure: 30 kN

Clamping unit

Max open daylight: 975 mm
Ejector stroke: 200 mm
Ejector force for / back: 41.2 kN

Additional Information

Additional equipment

Foaming Unit – Battenfeld “Einschäumungseinheit” for physical foaming (MuCell-like)
Handling System – Equipped with robot interface; compatible with Wittmann W818/W828
Conveyor Belt – 1400 mm × 400 mm
Rotary Table – Integrated, servo-driven, for 2K molding with vertical injection unit
Control Panel – UNILOG B6 touchscreen with periphery and MES interface capability
Temperature Unit – 1× GWK Logotherm mold temperature controller

Machine Benefits

Technical Machine Benefits

Screw stroke: 225 mm
Theoretical shot volume: 358 cm3
Spray pressure: 2116 bar
Max. Screw torque: 998 nm
Closing force: 1800 kn
Opening width: 300 mm
Min. Mold installation height: 325 mm
Multi-component capability with integrated horizontal and vertical injection units
Integrated physical foaming for lightweight, rigid part production
Intuitive unilog b6 control system with touchscreen interface and periphery integration

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
