➤ Used ZHAFIR ZERES III 3000 / 830 / B5 For Sale

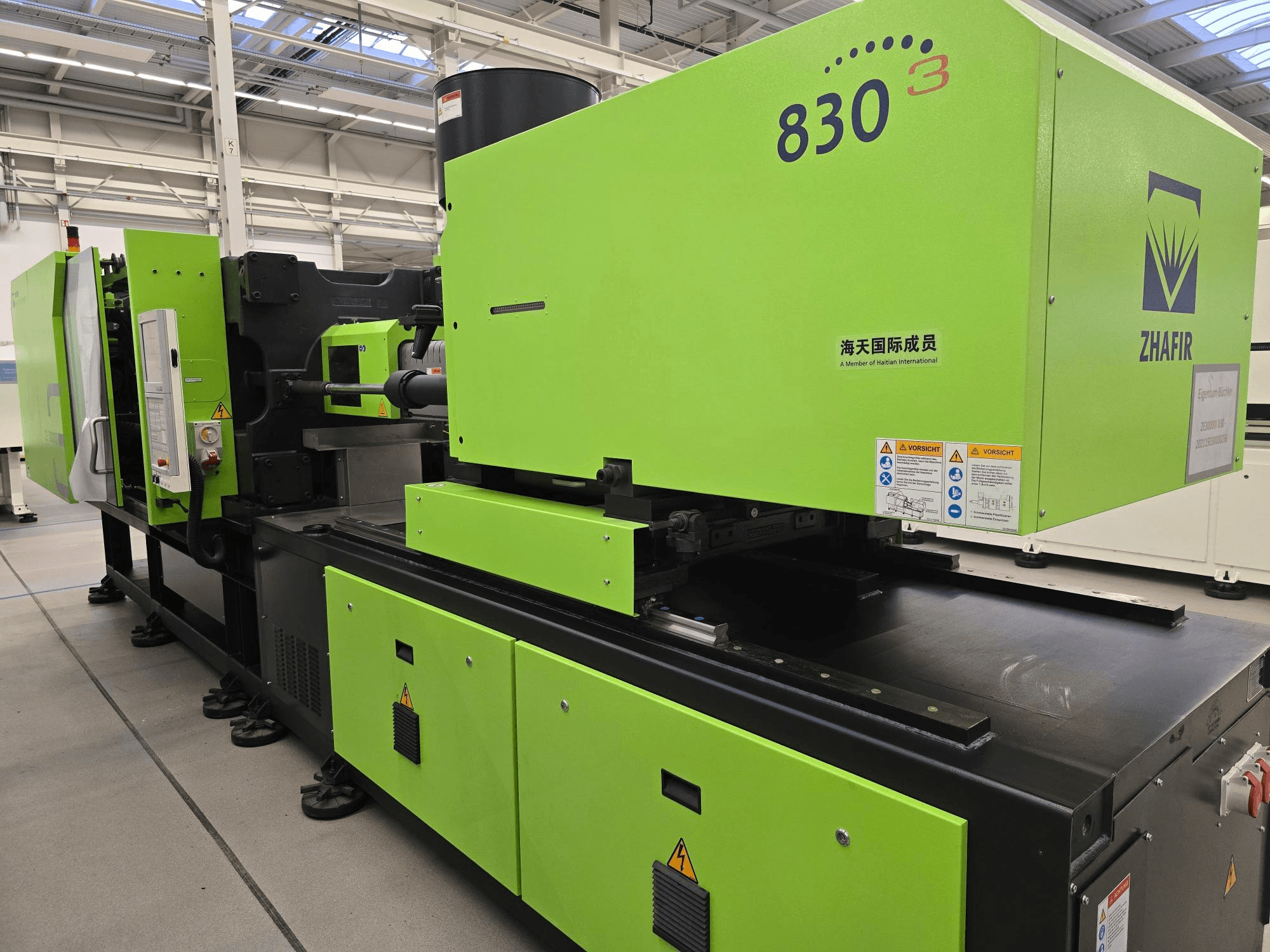

Electrical injection moulding machine manufactured in 2021. This ZHAFIR ZERES III 3000 / 830 / B5 features a clamping force of 3000 kN and a maximum mould opening stroke of 600 mm. It includes a platen size of 1040 x 1040 mm and a screw diameter of 50 mm. If you are looking to get high-quality injection moulding capabilities, consider the ZHAFIR ZERES III 3000 / 830 / B5 machine we have for sale. Contact us for further details.

Overview

brand: ZHAFIR ZERES
year: 2021
MODEL: III 3000 / 830 / B5
production hours: 12000
application type: Injection Moulding
Location: Austria
machine type: Electrical Injection Moulding Machine

Technical Information - ZHAFIR ZERES III 3000 / 830 / B5

Dimensions

Machine Height: 2500 mm
Machine Length: 7000 mm
Machine Weight: 14600 kg
Machine Width: 2100 mm

Technical Specification

Clamping Force: 3000 kN
Max. Shot Weight: 375 g
Screw Diameter: 50 mm

Additional Information

Max. mould opening stroke: 600 mm
Min./Max. mould installation height: 280 / 650 mm
Max. platen distance: 1250 mm
Tie bar spacing (H x V): 730 x 730 mm
Min. mould size: 470 x 470 mm
Platen size (H x V): 1040 x 1040 mm
Ejector stroke: 160 mm
Ejector force: 68.6 kN
Injection unit size: Euromap 120
Screw L/D ratio: 20
Theoretical shot volume: 412 cm³
Injection pressure: 2000 bar
Holding pressure: 1600 bar
Injection speed: 160 mm/s
Injection rate (PS): 274 g/s
Screw speed: 320 rpm
Plasticizing rate: 46 g/s
Nozzle contact force: 85 kN
Barrel heating power: 20.2 kW
Connected load: 36 kW / 60 A
Hydraulic pressure: 175 bar
Hydraulic flow rate: 90 l/min
Oil tank capacity: 135 l
Material hopper volume: 50 l
Control system: Sigmatek with 15" colour touch screen
USB interfaces: 3
Robot interface: Euromap 67
Robot adapter: Euromap 18
Form data memory: up to 200 moulds
Production data recording: up to 100000 cycles
Statistical process control (SPC) system
Central lubrication system
Automatic mould height adjustment
Compact 5-point toggle clamping system
Hydraulic ejector system with vibration function
Parallel mould opening and ejector movement
Up to 3 hydraulic core pulls
Cooling water distributor system
PID temperature control system
Ceramic heater bands with thermocouples
Automatic purge function
Energy-saving cylinder insulation
Adjustable machine feet
Installation tools included
Hours: ca. 12,000

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
