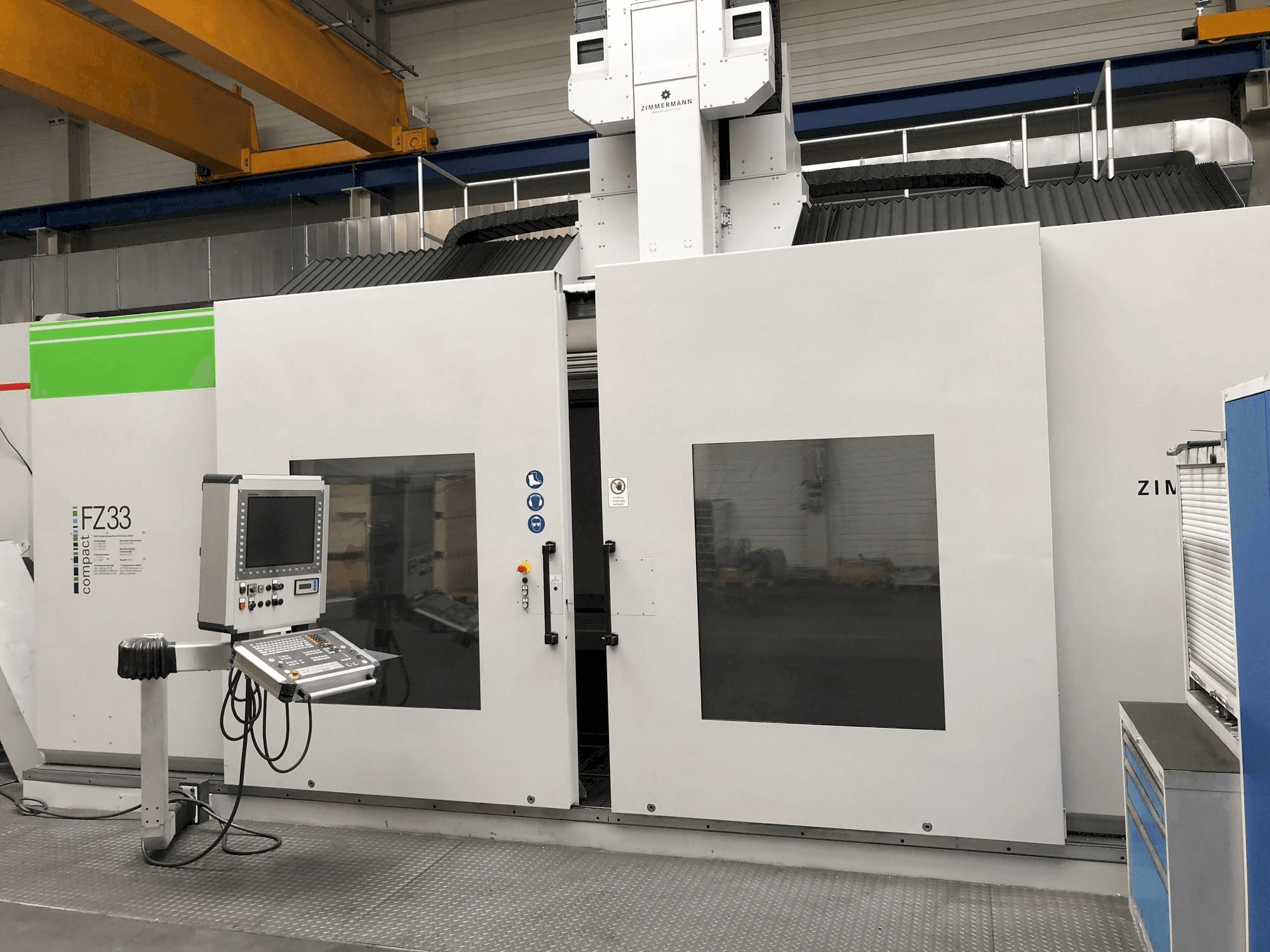

Zimmermann FZ33C Milling Machine

This Zimmermann FZ33C Milling Machine was manufactured in 2016 in Germany. This compact machine is perfect for machining aluminum and composite materials. The milling process is highly precise, regardless of weight and size of the workpiece. Its milling head combines high torque with high rotation speeds.

Overview

brand: Zimmermann
year: 2016
MODEL: FZ33C
application type: Milling
Location: Germany
machine type: Gantry Milling Machine
availability: Sold

Technical Information - Zimmermann FZ33C

General Data

Measurements width: 7600 mm
Measurements depth: 8990 mm
Measurements height: 5650 mm
Machine weight: 59500 kg

Movement

X-AXIS Movement: 2500 mm
X-AXIS Working Feed: 60 m/min
Y-AXIS Movement: 3000-4000 mm
Y-AXIS Working Feed: 60 m/min
Z-AXIS Movement: 1250-1500 mm
Z-AXIS Working Feed: 60 m/min

Table

Outer length: 2500 mm
Outer width: 3250-4250 mm
Height adjustment: 600 mm
Table load: 8000-16000 kg/m2

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Combines high torque with high rotation speeds
Qualitative Machine Benefits:
- - Milling process is highly precise, regardless of weight and size of the workpiece.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
