Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
CHEN HSONG - JM160-MK6eES-INJ-CHE-2023-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used CHEN HSONG JM160-MK6e For Sale | gindumac.com

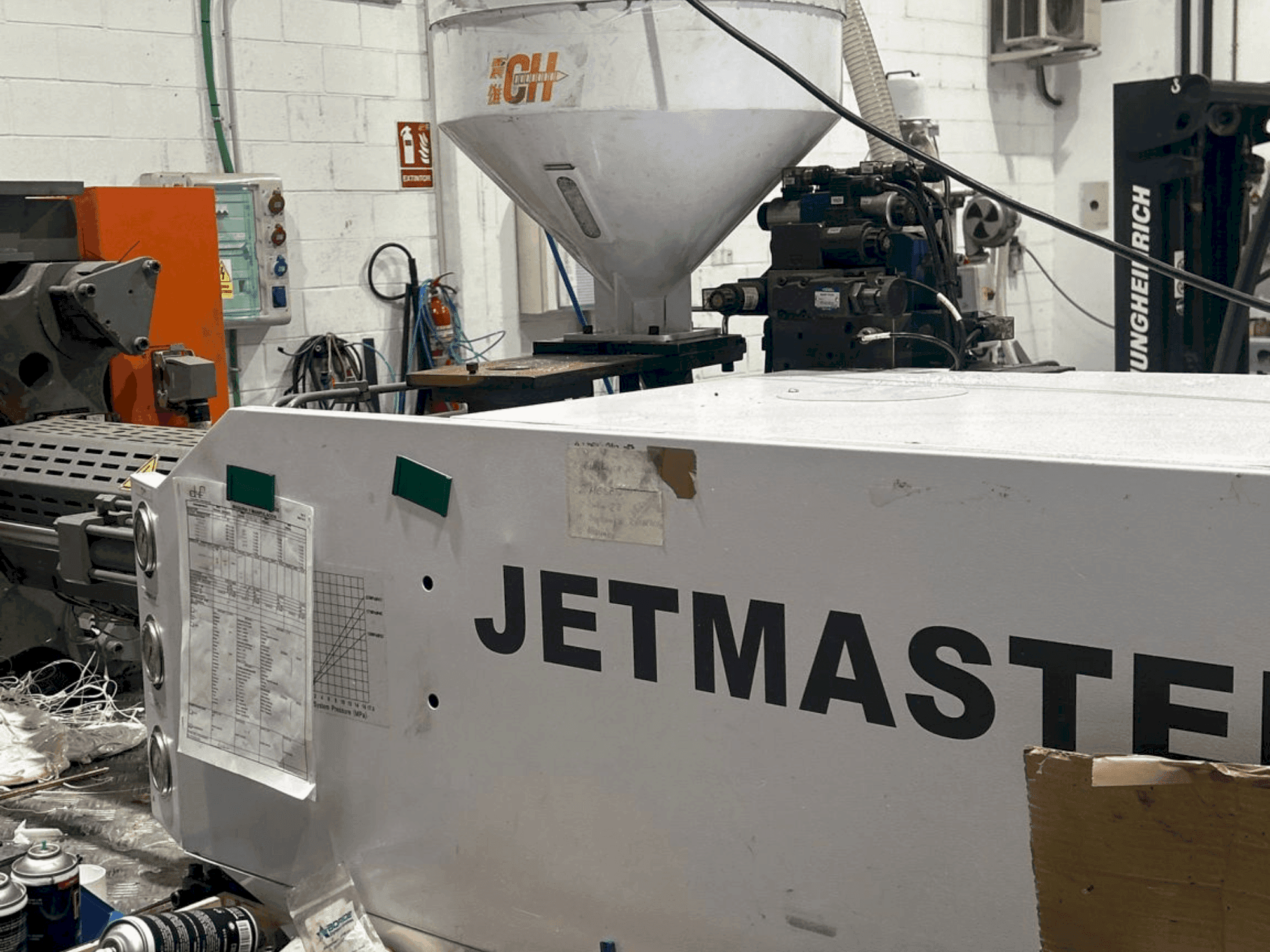

This CHEN HSONG JM160-MK6e was manufactured in 2023. It is a hydraulic injection moulding machine, ideal for precision and efficiency in plastic processing tasks. Consider the opportunity to buy this CHEN HSONG JM160-MK6e hydraulic injection moulding machine. Contact us for more information.
Overview
- brand: CHEN HSONG
- year: 2023
- MODEL: JM160-MK6e
- application type: Injection Moulding
- Location: Spain
- machine type: Hydraulic Injection Moulding Machine
Technical Information - CHEN HSONG JM160-MK6e
Dimensions
- Machine Depth: 5200 mm
- Machine Height: 1900 mm
- Machine Weight: 5500 kg
Technical Specification
- Max. Shot Weight: 209 g
Additional Information
Machine Benefits
Technical Machine Benefits
- Shot volume (cm³): 209 / 271
- L/d ratio: 23. 5 / 21. 1
- Injection rate (cm³/s): 136 / 176
- Plasticizing capacity (g/s): 20 / 25
- Screw stroke (mm): 220
- Nozzle stroke (mm): 300 // nozzle contact force (kn): 35
- Clamping stroke (mm): 450
- Platen distance (mm): 470 x 470
- Min. Mold thickness (mm): 200 // max. Mold thickness (mm): 520
- Center ring diameter (mm): 125
Extra Information
System Pressure (MPa): 17.5 Heating Power (kW): 8 Temperature Control Zones: 3 + Nozzle
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
