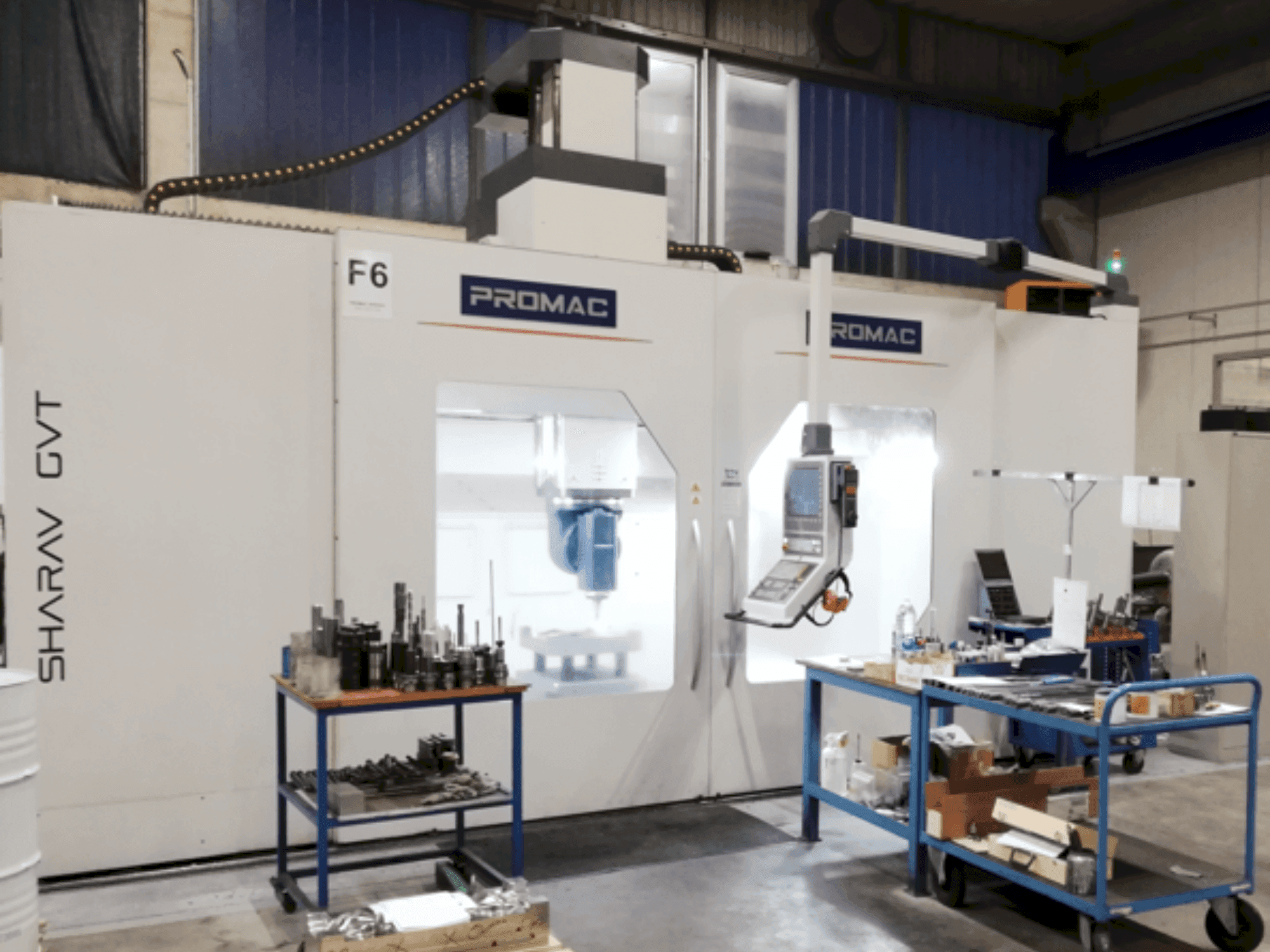

Front view of PROMAC SHARAV GTV 3.5  machine

PROMAC - SHARAV GTV 3.5IT-MIL-PRO-2014-00001

235,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 5-axis PROMAC SHARAV GTV 3.5 was manufactured in 2017, featuring a robust gantry milling machine design. It boasts extensive travels with 2500 mm on the X-axis, 2000 mm on the Y-axis, and 900 mm on the Z-axis. The machine includes a high-capacity spindle with 30 kW power and 800 Nm torque, ensuring precise and powerful machining. Consider the opportunity to buy this PROMAC SHARAV GTV 3.5 gantry milling machine. Contact us for more information about this machine.

Overview

  • brand: PROMAC
  • year: 2017
  • MODEL: SHARAV GTV 3.5
  • application type: Milling
  • Location: Italy
  • machine type: Gantry Milling Machine

Technical Information - PROMAC SHARAV GTV 3.5

Main drive

  • Spindle motor power: 30 kW
  • Number of axis: 5

Movement

  • X-AXIS Movement: 3500 mm
  • Y-AXIS Movement: 2200 mm
  • Z-AXIS Movement: 1200 mm
  • A-AXIS Movement: ±110° MM
  • B-AXIS Movement: -110° MM
  • C-AXIS Movement: ±200° MM

Table

  • TSlots size: B 36 mm

Tools

  • Type of tool holder: HSK63A

    Additional Equipment

    • - 32 tool holders (prepared for three additional 32/100/100 tool holders)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Workpiece working position: vertical axis
        • - Table dimensions: 3000x2000 mm
        • - Spindle type: capto c 8
        • - Spindle torque: 800 nm
        • - Electrospindle weight: 210 kg
        • - High-pressure internal spindle water system
        • - Automatic sunroof / blum tool control / haidenhain 3d probe

      Extra information

      • - Media Oil pump: 2 l/min Grease pump: 2 l/h Air flow rate: 450 l/h Voltage: 400 V Frequency: 50 Hz Air quantity: 1000 l/min Pressure: 6/8 bar

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
