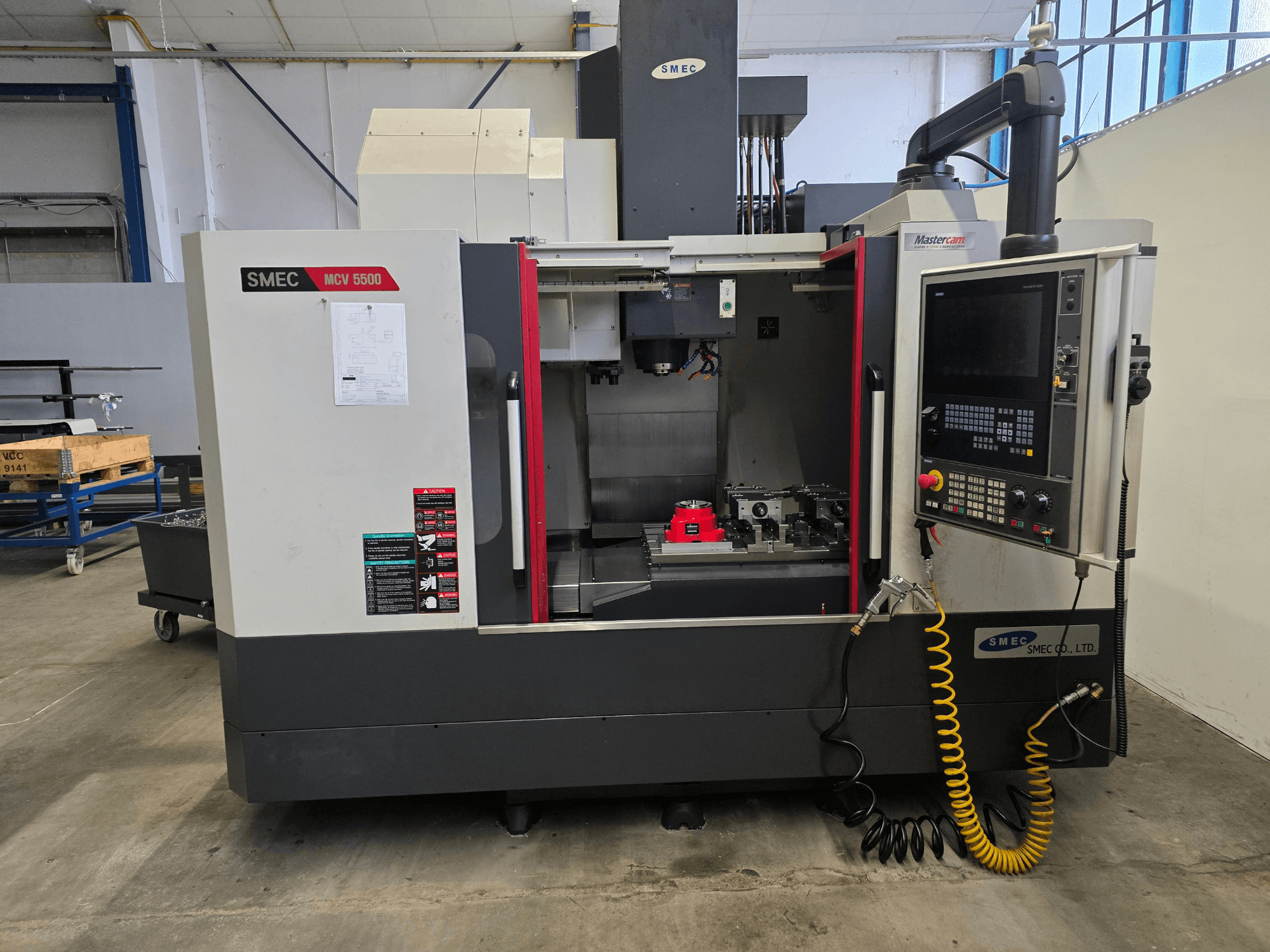

SMEC - MCV 5500DE-MIL-SME-2022-00001

- CNC Control: Siemens SINUMERIK 828D incl. OPERATE and ShopMill

- T-Slot Size: 4 x 18H8 mm

- T-Slot Distance: 125 mm

- Distance Spindle Center to Column: 580 mm

- Distance Table to Spindle Nose: 130-650 mm

- Ball Screw X-Axis: Ø 40 x 12 mm

- Ball Screw Y-Axis: Ø 40 x 12 mm

- Ball Screw Z-Axis: Ø 40 x 10 mm

- Feed Motor X-Axis: 3 kW

- Feed Motor Y-Axis: 3 kW

- Feed Motor Z-Axis: 3 kW

- Rapid Traverse X/Y/Z: 36/36/30 m/min

- Feed Rate X/Y/Z: 1-15,000 mm/min

- Spindle Motor: 22 kW (30 min) / 18.5 kW (Cont.)

- Max. Spindle Torque: 141 Nm

- Spindle Taper: BBT 40

- Tool Storage Capacity: 30 positions

- Max. Tool Weight: 8 kg

- Max. Tool Length: 300 mm

- Max. Tool Diameter: Ø 80 mm (Ø 125 mm with adjacent empty pockets)

- Tool Change Time: 1.6 s

- Chip-to-Chip Time: 5 s

- Coolant System Tank Capacity: 365 L

- Coolant Flow Rate: 29.1 L/min

- Internal Coolant Pressure (IKZ): 20 bar

- Hydraulic System Capacity: 3.9 L

- Hydraulic System Max. Pressure: 9 bar

- Max. Power Requirement: 32 kVA

- Voltage: 400 V

- Compressed Air Connection: 6 bar

- Machine Dimensions (W x D x H): 3635 mm (incl. chip conveyor) x 2977 mm x 2778 mm

- Additional Equipment:

* Hinge belt side chip conveyor with rollers

* Oil skimmer with endless belt

* Coolant unit with coolant gun and bed flushing

* Spindle oil cooling system

* Air gun

* DXF Reader

* Electronic handwheel

* 3-color status signal light

* Work area lighting
