Soraluce FS-10000 Milling Machine

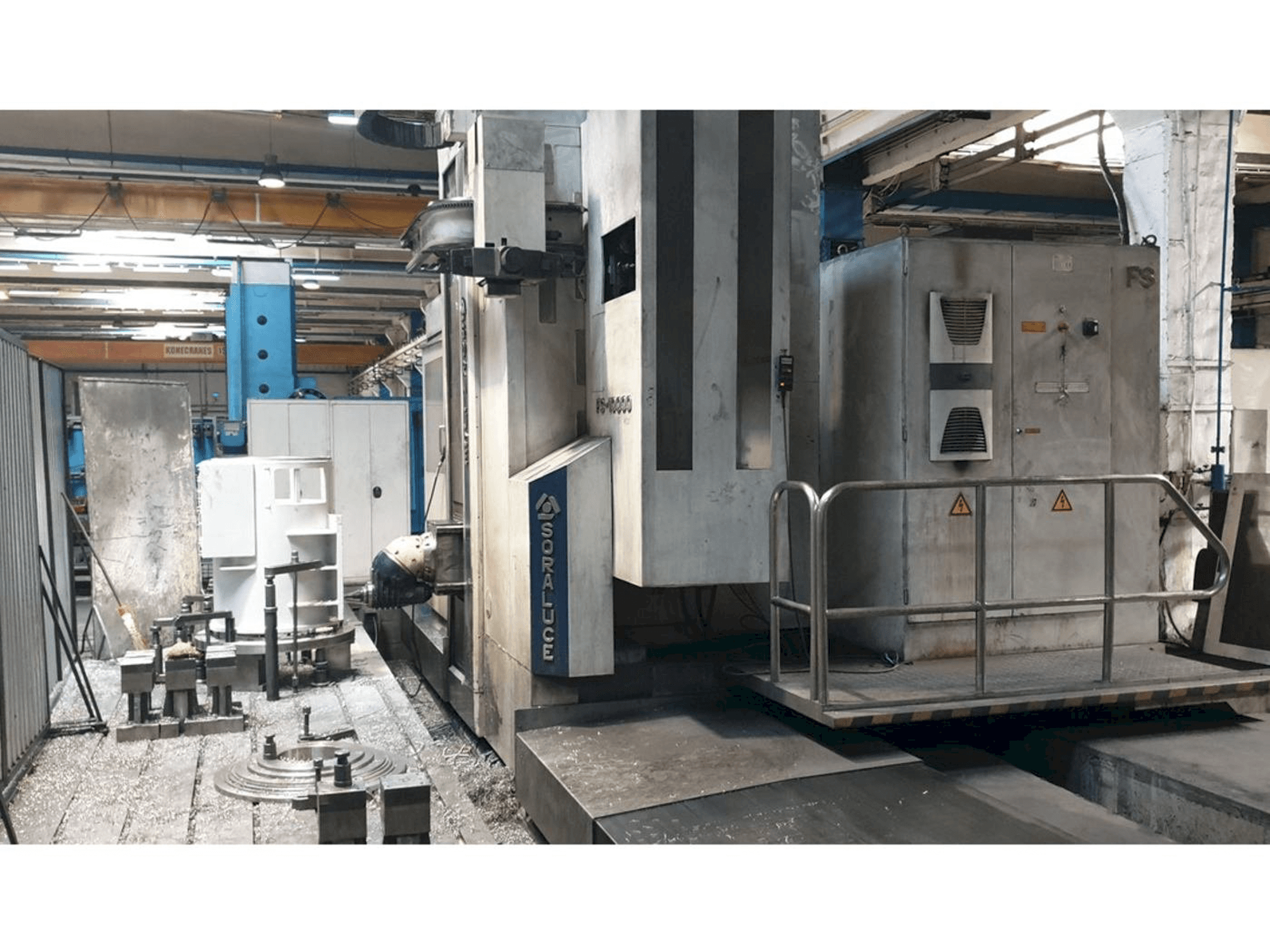

This Soraluce FS-10000 Milling Machine was made in Spain in 2007. It is equipped with a Heidenhain TNC 530 control unit. it has approximately 61000 working hours. This machine is able of performing with a spindle speed up to 3000 rpm, a vertical course of 2400 mm, and a longitudinal course of 10000 mm.

Overview

brand: Soraluce
year: 2007
MODEL: FS-10000
production hours: 61000
application type: Milling
Location: Romania
machine type: Gantry Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Soraluce FS-10000

General Data

Machine weight: 39000 kg

Control Unit

Model: TNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 3000 1/MIN

Media

Main electronic connection: 400 v - 50 Hz
Power consumption: 51 kva

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Axes speed rate: 25000 mm/min
- - Vertical course: 2400 mm
- - Transversal ram course: 1500 mm
- - Longitudinal course: 10000 mm
- - Mandrel headstock cone: din-69871-a
- - Range of maximum working feeds: 10000 mm/min
- - Maximum thrust of shaft to cutting unit: 16000 n

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
