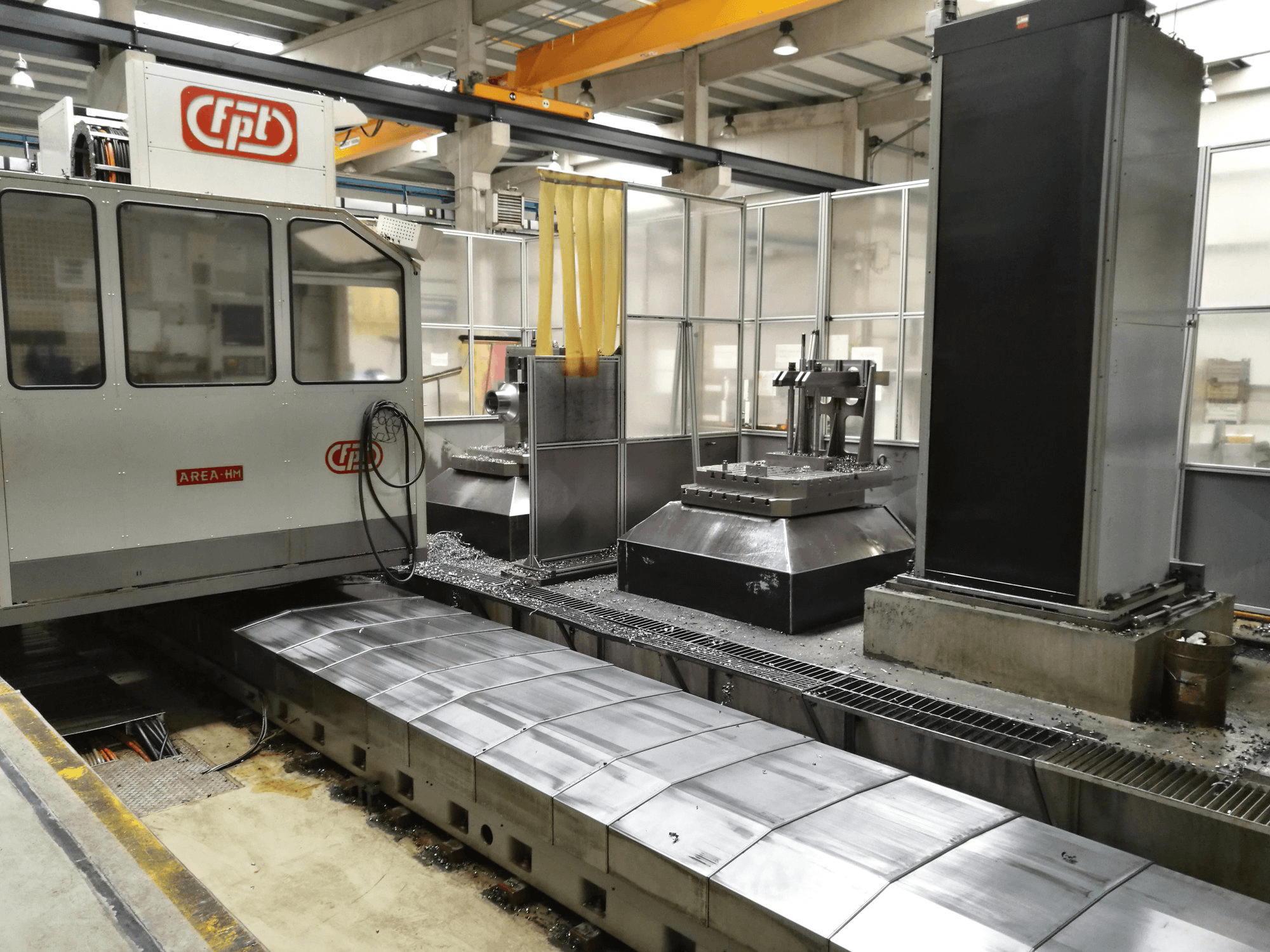

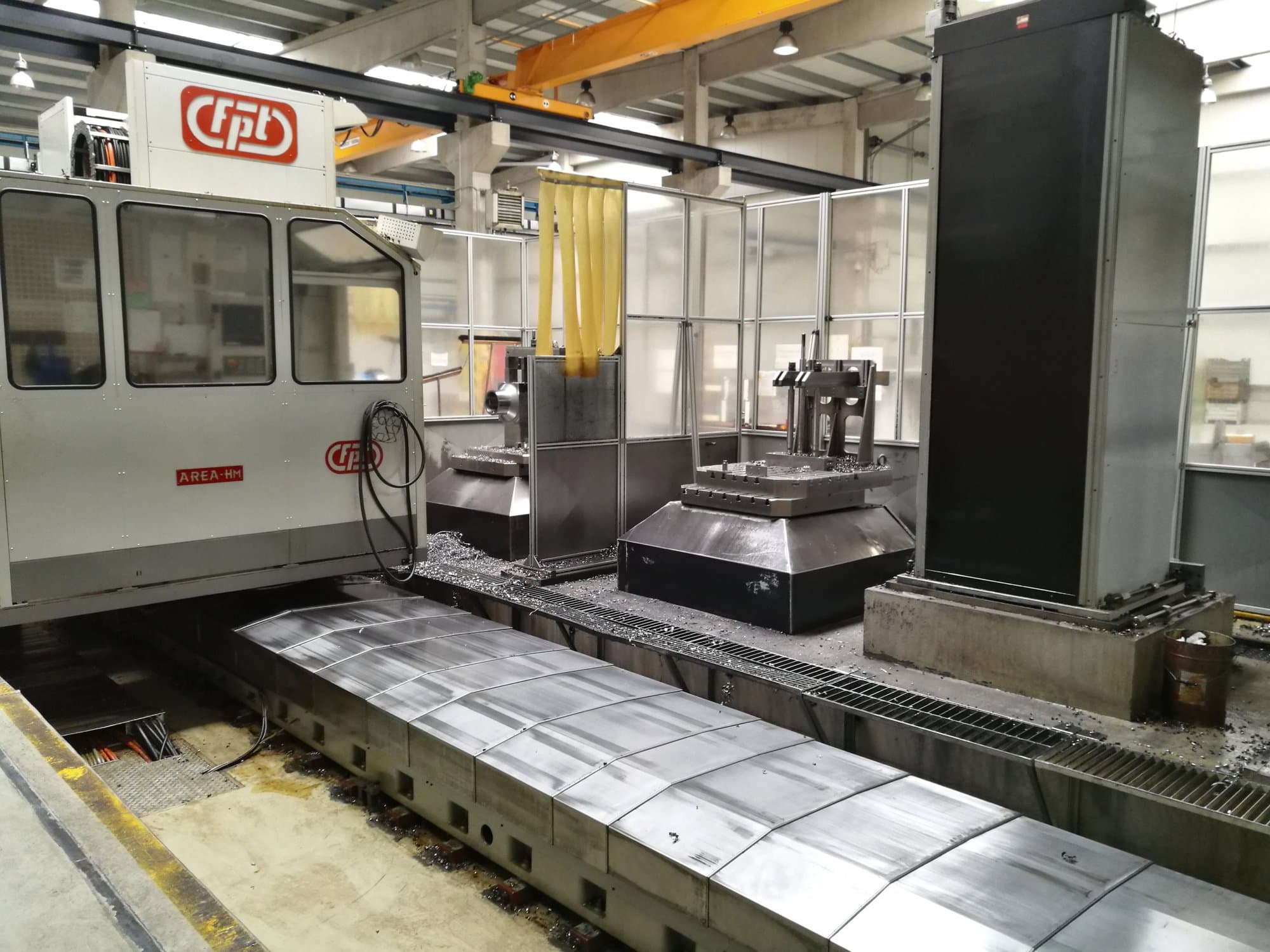

FPT AREA M Machining Center

This FPT AREA M Machining Center was built 2009 in Italy and was in use for around 10000 production hours since then. With a SINUMERIK 840D Control unit by SIEMENS, this model stands out due to its hydrostatic guideways on the X, Y and Z axis, its pallet changing system and automatic milling head exchange. During the past, this machine has worked mainly with steel and comes with various additional equipment.

Overview

brand: FPT
year: 2009
MODEL: AREA M
production hours: 10000
application type: Milling
Location: Czech Republic
machine type: Milling Machine
availability: Sold
control unit brand: SIEMENS
GINDUMAC ID: CZ-MIL-FPT-2009-00001

Technical Information

Control Unit

Brand: SIEMENS
Model: SINUMERIK 840D

Main drive

Number of spindles: 1
Spindle speed range: 3000 1/min
Spindle motor power: 37 kW

Movement

X-AXIS Movement: 6000 mm
Y-AXIS Movement: 1250 mm
Z-AXIS Movement: 2000 mm

Workpiece

Workpiece weight: 7000 kg

Table

Outer length: 1000 mm
Outer width: 1000 mm

Turret

Number of tool slots: 40

Tools

Max weight: 20 kg
Max tool diameter: 230 / 125 mm
Max tool length: 400 mm

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Universal bi-rotative head
- UT5-630S boring and facing head
- Angle head for DN500 valve
- Tools
- Tool holder

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
